1. What’s in the Box? and the Names of the Projector Parts
Do not cover the air inlets and outlet while the projector is in operation. Insufficient ventilation leads to a rise of
the internal temperature and may cause a fire or malfunction.

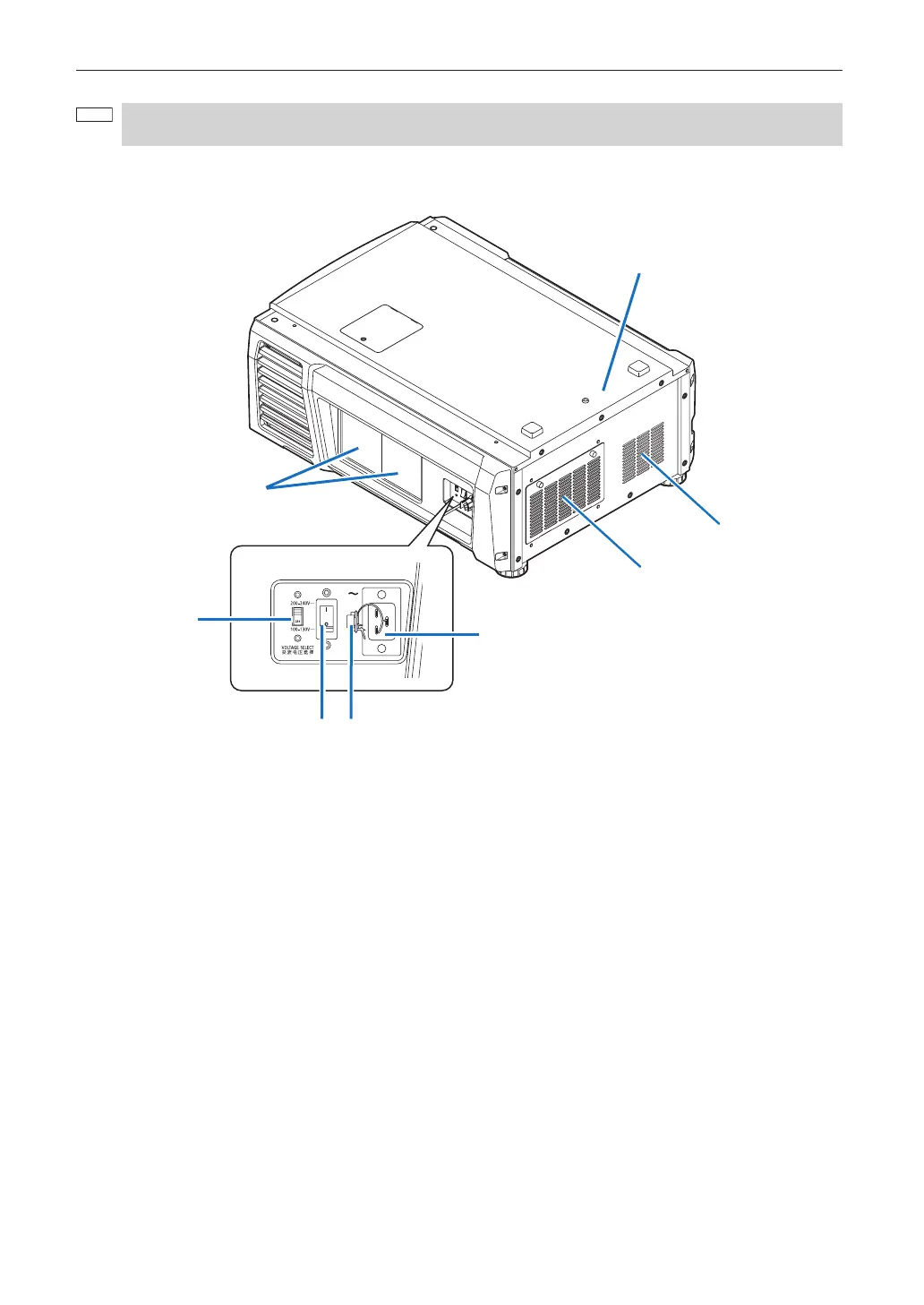

1-3-2. Rear of the projector
1
8
2
3 4
5
6
7
1. Lamp cover
This opens to allow the lamp to be replaced. Refer to “5-3. Replacing the Lamp and the Air Filter” (page 52) on how to replace
the lamp.
2. VOLTAGE SELECT switch
Can be switched to match the voltage of the power supply. (See page 17)
3. Main power switch
While AC power is being supplied, set the main power switch to ON position (1), then your projector will enter a standby
state.
4. Power cable stopper
Prevents the power plug from falling out from the projector.
5. AC input
Connects to the AC power cable. The AC power cable is not an accessory. Consult with your dealer/distributor about the
AC power cable.
6. Air inlet / Air lter
The air inlet for cooling inside the projector. Do not cover.
An air filter is attached over the air inlet to prevent dust. Refer to “5-3. Replacing the Lamp and the Air Filter” (page 52) on
how to replace the air filter.
7. Air Outlet
The air outlet to exhaust heat inside the projector. Do not cover.
