22
2. Installation and Connection
2-3. Connecting the image input terminals
The IMB (NC-90MS01) is mounted as standard in this projector. Alternately, you can use an HDSDI input port or DVD-D input
port by replacing this with a signal input board (NC-80LB01-B/NC-80DS01-B) which is sold separately.
The video input ports that can be used with each board are as follows. Refer to the instruction manual of the IMB or signal input
board for details on connecting the video input ports with external equipment.
NC-90MS01 HDMI input port x 1
3G SDI input port x 2
NC-80LB01-B HDSDI input terminal x 4
NC-80DS01-B DVI-D input terminal x 2

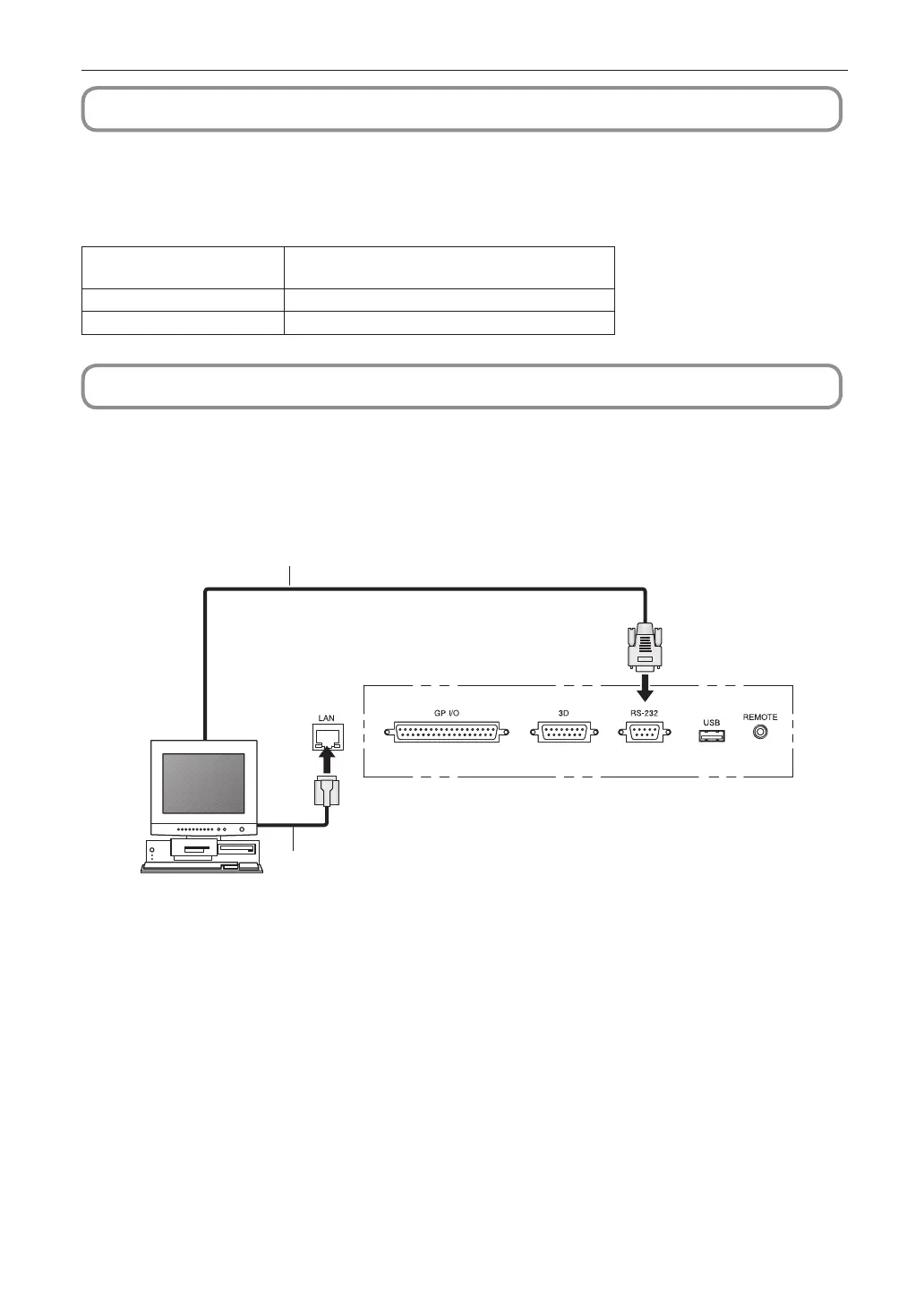

2-4. Connecting the various control terminal
For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).
• PC control terminal (RS-232) --------------- Use this terminal when controlling the projector in serial connection from a PC.
• LAN port (LAN) -------------------------------- Use this port when controlling the projector in LAN connection from a PC.
LAN cable
PC
RS-232C
To Next Page
