1. What’s in the Box? and the Names of the Projector Parts

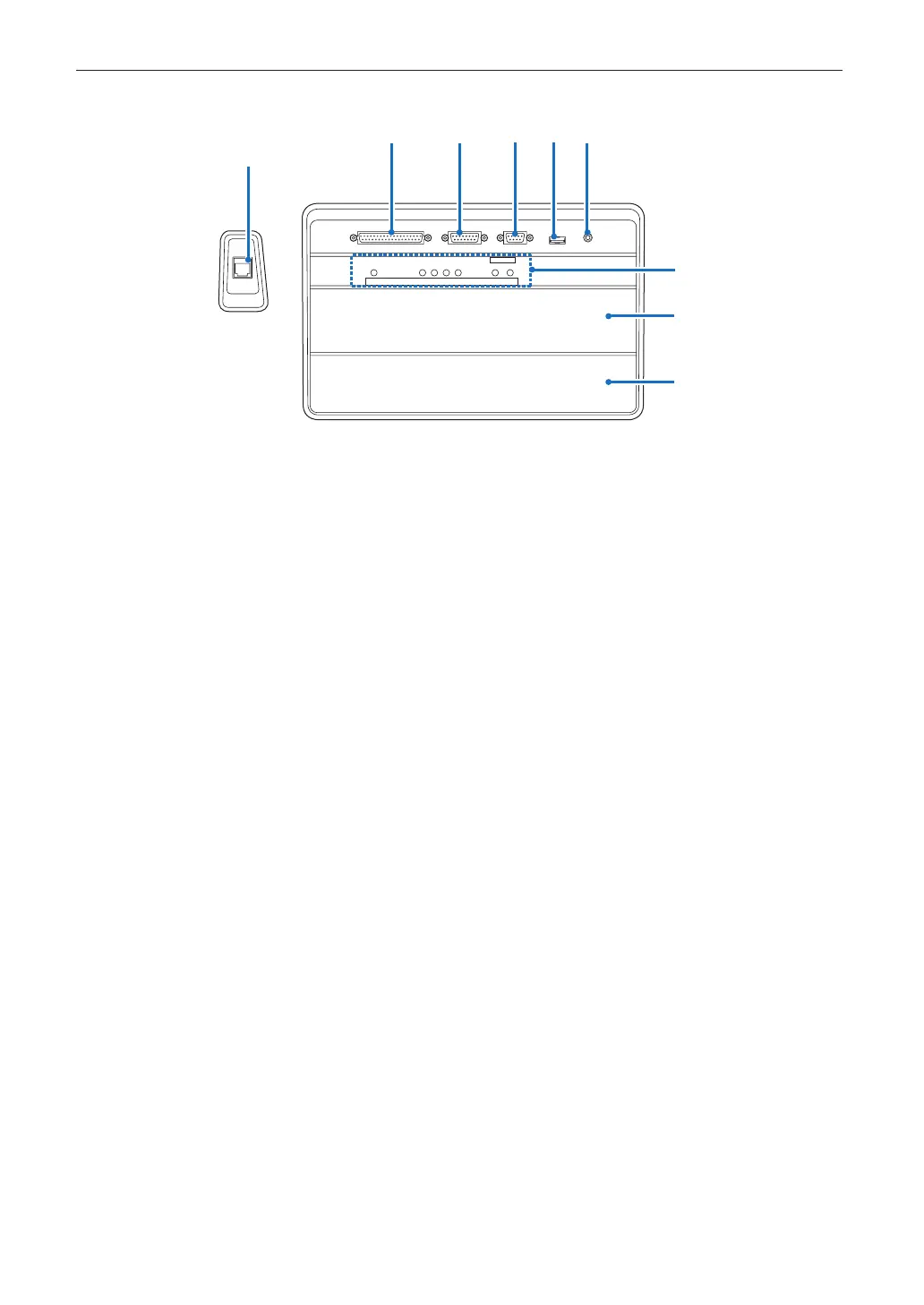

1-3-4. Connection terminals

LAN

GP I/O 3D RS-232

USB

REMOTE

PWR SOFT OS FMT ICP B A

PORT

FOR SERVICE

1. Ethernet port (LAN) (RJ-45)

The port for interfacing with an image signal server or controlling the projector from a PC via a network. Connect the projec-

tor and the PC with a commercially available Ethernet cable (10/100/1000Base-T).

2. External control terminal (GP I/O) (D-Sub 37P)

The terminal for externally controlling the projector or connecting a 3D image system to the projector. (See page 81)

3. 3D terminal (3D) (D-Sub 15P)

The terminal for connecting a 3D image system to the projector. (See page 86)

4. PC control terminal (RS-232) (D-Sub 9P)

The terminal for operating the projector from a PC via an RS-232C or for service personnel to set data for the projector.

Connect the projector and the PC with a commercially available RS-232C straight cable.

5. USB port (USB) (type A)

The port for the projector maintenance.

6. Service terminal (REMOTE) (Stereo mini)

This terminal is used for service purpose only.

7. Device management indicator

The indicator for displaying the projector status. Used by service personnel during maintenance.

8. Slot B

Not used in this projector.

9. Slot A

The slot is used for an image media block (IMB) or optional products (page 87). Contact your dealer/distributor for an instal-

lation of optional products.

Refer to the IMB instruction manual for details on IMB.
