NEC P547UL User Manual

1. Check the product overview, supplied items and part names
9

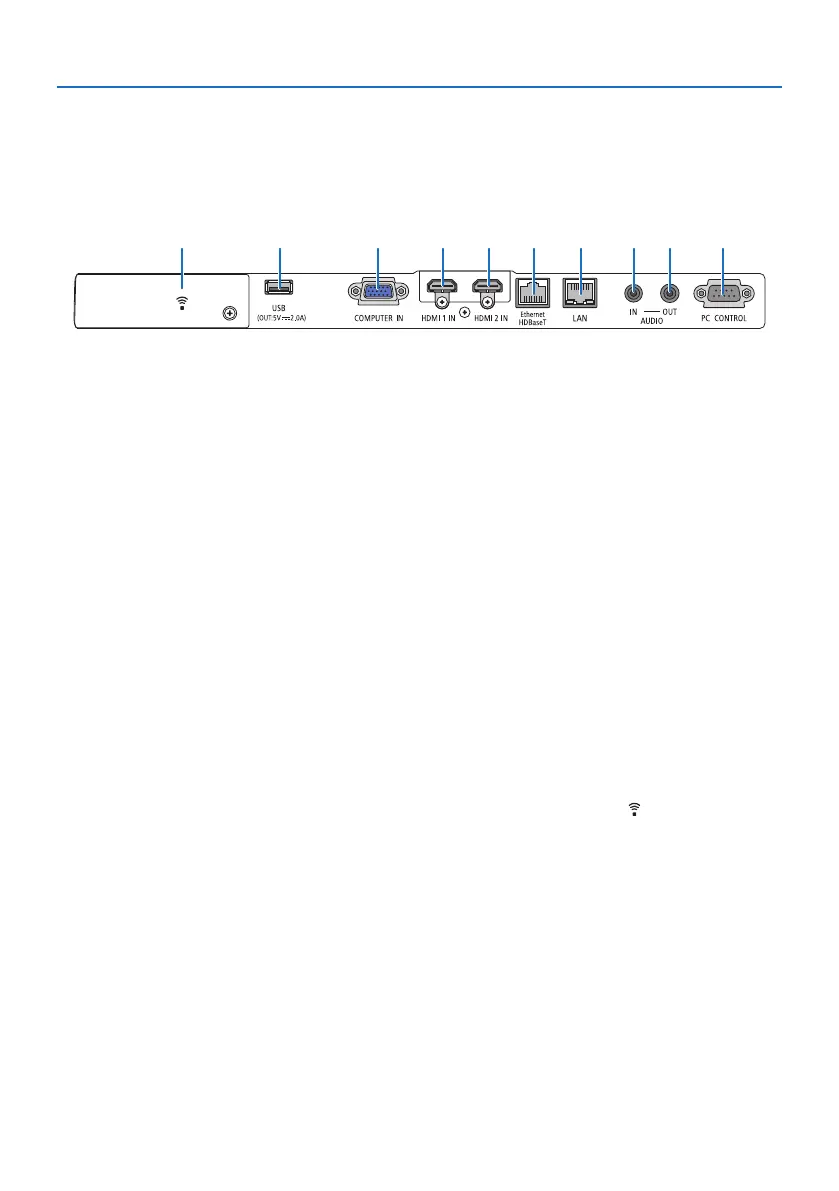

Terminal Panel Features
95476213810
1. HDMI 1 IN Terminal (Type A)
(→ page 83, 85, 87)
2. HDMI 2 IN Terminal (Type A)
(→ page 83, 85, 87)
3. COMPUTER IN/ Component Input Termi-
nal (Mini D-Sub 15 Pin)
(→ page 83, 86)
4. AUDIO IN Mini Jack (Stereo Mini)
(→ page 83, 86)
5. AUDIO OUT Mini Jack (Stereo Mini)
Audio signal of the image projected from
the projector is output.
When audio equipment is connected, the
projector speaker is disabled.
6. Ethernet/HDBaseT Port (RJ-45)
(→ page 92)
7. LAN Port (RJ-45)
(→ page 88)
8. USB Port (Type A)
Connect the USB memory. When picture
data is saved in a USB memory, the picture
can be projected with the [VIEWER] of the
projector.
(→ page 97)
In addition, a 5 V/2.0 A power supply can be
supplied for expansion use.
9. PC CONTROL Port (D-Sub 9 Pin)
Use this port to connect a PC or control
system. This enables you to control the pro-
jector using serial communication protocol.
If you are writing your own program, typical
PC control codes are on page 137.
10. Wireless LAN cover ( )
There are two terminals behind the cover.
• USB (Wireless LAN) Port
(→ page 90)
• SERVICE Port (USB Type B)
(for service purpose only)

NEC P547UL Specifications

General

Native aspect ratio	16:10
Projection distance	0.8 - 12.9 m
Projection technology	3LCD
Contrast ratio (typical)	500000:1
Screen size compatibility	30 - 300 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-30 - 30 °
Light source type	Laser
Service life of light source	20000 h
Focus	Manual
Focal length range	17.2 - 27.7 mm
Aperture range (F-F)	1.5 - 2.1
Vertical lens shift range	0 - 60 %
Horizontal lens shift range	-29 - 29 %
3D	No
Video color modes	Presentation
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160
Composite video in	0
HDMI connector type	Full-size
Serial interface type	RJ-45, RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	26 dB
Certification	CE; EAC; ErP; RoHS; TUEV, TÜV
Projection modes	Ceiling, Front
Number of OSD languages	30
Noise level (economic mode)	22 dB
RMS rated power	20 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	1.6 W
Power consumption (typical)	293 W
Power consumption (economy mode)	220 W
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	407 mm
Width	480 mm
Height	122 mm
Weight	9700 g
