5. Using On-Screen Menu
❻ Menu Descriptions & Functions [DISPLAY]

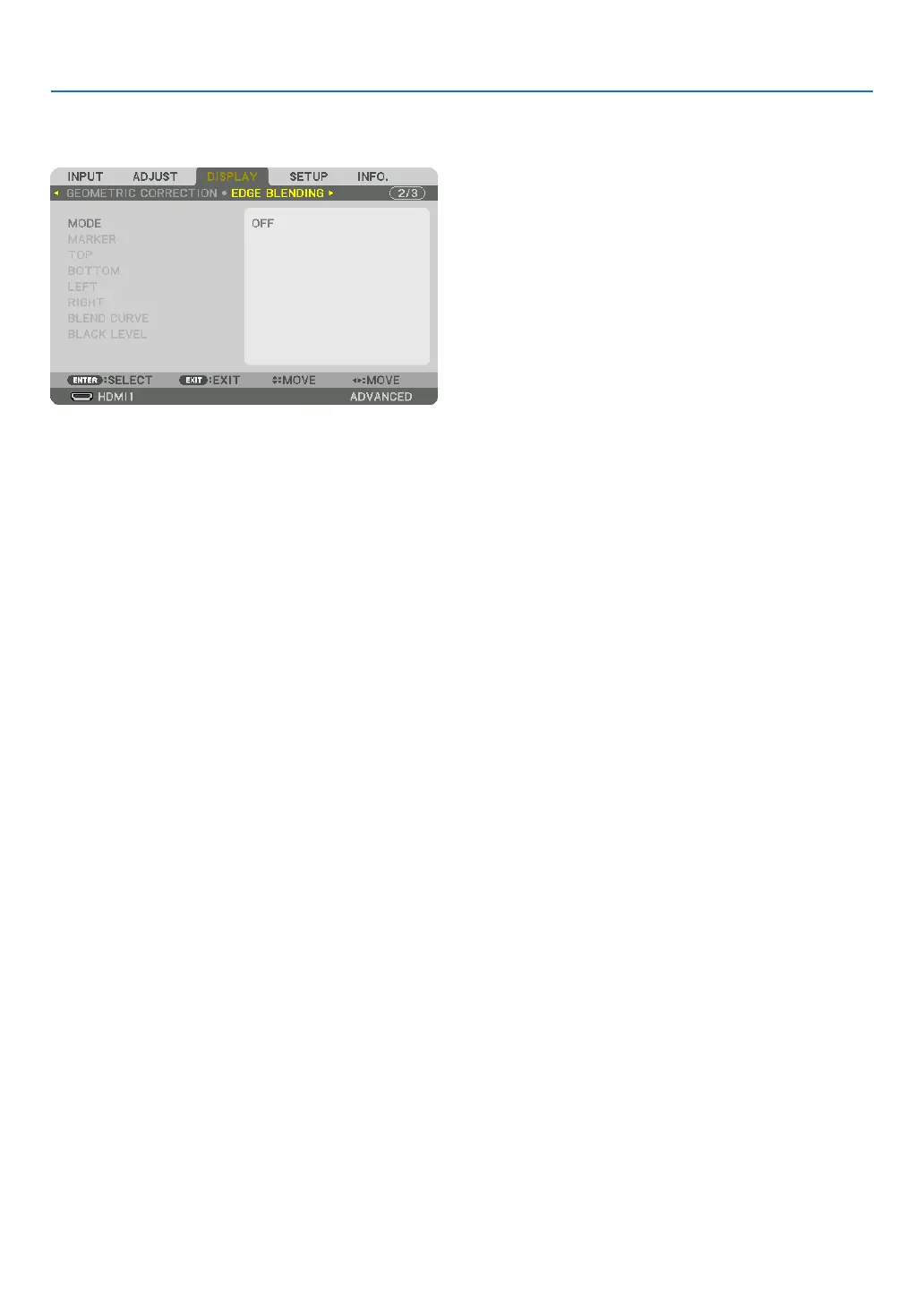

[EDGE BLENDING]
Thisadjuststheedges(boundaries)oftheprojectionscreenwhenprojectinghighresolutionvideosusingacombina-
tionofseveralprojectorsintheup,down,leftandrightpositions.
MODE
ThisenablesordisablestheEDGEBLENDINGfunction.
When[MODE]issetto [ON],the[MARKER], [TOP],[BOTTOM],[LEFT],[RIGHT],[BLACKLEVEL]and[BLEND
CURVE]settingscanbeadjusted.
MARKER
Setwhethertodisplaymarkerornotwhenadjustingtherangeanddisplayposition.Whenturnedon,amagenta
markerforadjustingtherangeadjustmentandagreenmarkerforadjustingthedisplaypositionwillbedisplayed.
TOP/BOTTOM/LEFT/RIGHT
ThisselectstheEDGEBLENDINGlocationsontheleft,right,topandbottomonthescreen.
Thefollowingsettingscanbeadjustedwhenanitemisselected.(→page60)
CONTROL .............. Enable TOP, BOTTOM, LEFT and RIGHT functions.
RANGE
................... Adjust the range (width) of the edge blending.
POSITION
.............. Adjust the display position of the edge blending.
BLENDCURVE
Setbrightnessforthe[EDGEBLENDING]sections.(→page62)
BLACKLEVEL
Adjusttheblacklevelofthe[EDGEBLENDING]section.(→page63)
