POWER SUPPLY AND ELECTRICAL
CONNECTIONS
OVERVIEW
NOTE
The solar system and actuators (pumps, valve, etc…) may be connected to earth thru the
Earth terminals of the SR controller.
The installation shall comply with applicable safety regulations (including EN60730 standard)
and local installation guidelines, especially the SR device is to be connected via a
disconnection device i.e. a circuit breaker or a detachable external fuse.

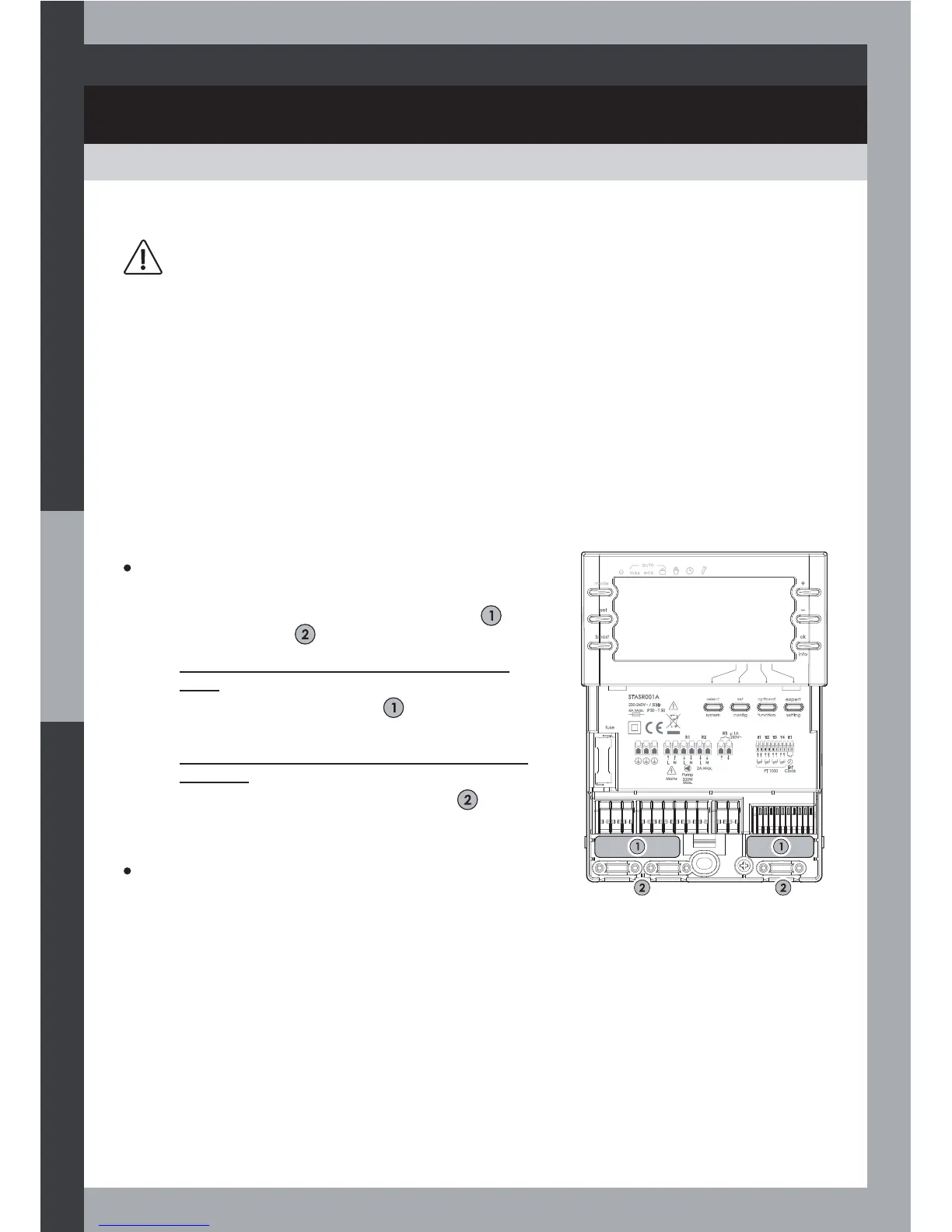

Preparing the cable feed
Depending on the type of installation, the cables may
enter the device through the rear of the case or the
lower side of the case .
- Feeding the cable through the rear of the
case
5HPRYHWKHSODVWLFÁDSV
from the rear side
of the case using an appropriate tool.
- Feeding the cable through the lower side of
the case
&XWWKHOHIWDQGULJKWSODVWLFÁDSV
using an
appropriate tool.
Connecting the cables
> The terminals are approved for connection of
cables as follows:
- Max wire section for power terminals = 2,5 mm²
- Max wire section for signal terminals = 0,5 mm²
> Only use the original temperature sensors (Pt1000) that are approved for use with the
controller. Observe the following points:
- The polarity of the temperature sensor contacts is not important.
- Do not lay sensor cables close to power cables.
- Sensor cables may be extended (use 0,75 mm² min wires).
> Observe the terminal pinout diagram and system wiring diagrams.
L NL N L N
R3
T1 T2 T3 T4 E1R1 R2
μ 1A
250V~
Mains
Pump
200W
Max.
2A Max.
PT 1000
Ext
Clock
STASR001A
230-240V~ / 50Hz
4A Max. IP20 - T 50
DANGER
Risk of death by electrocution!
1- Switch off the power supply of the controller before removing the terminal cover.
2- Remove the controller from the power supply before opening the case.
3- Only switch the power supply back on after the casing has been closed.
7KHHOHFWULFDOFRQQHFWLRQPXVWEHFDUULHGRXWE\DTXDOLÀHGSURIHVVLRQDOLQVWDOOHU
