SOLAR SYSTEM OVERVIEW
OVERVIEW

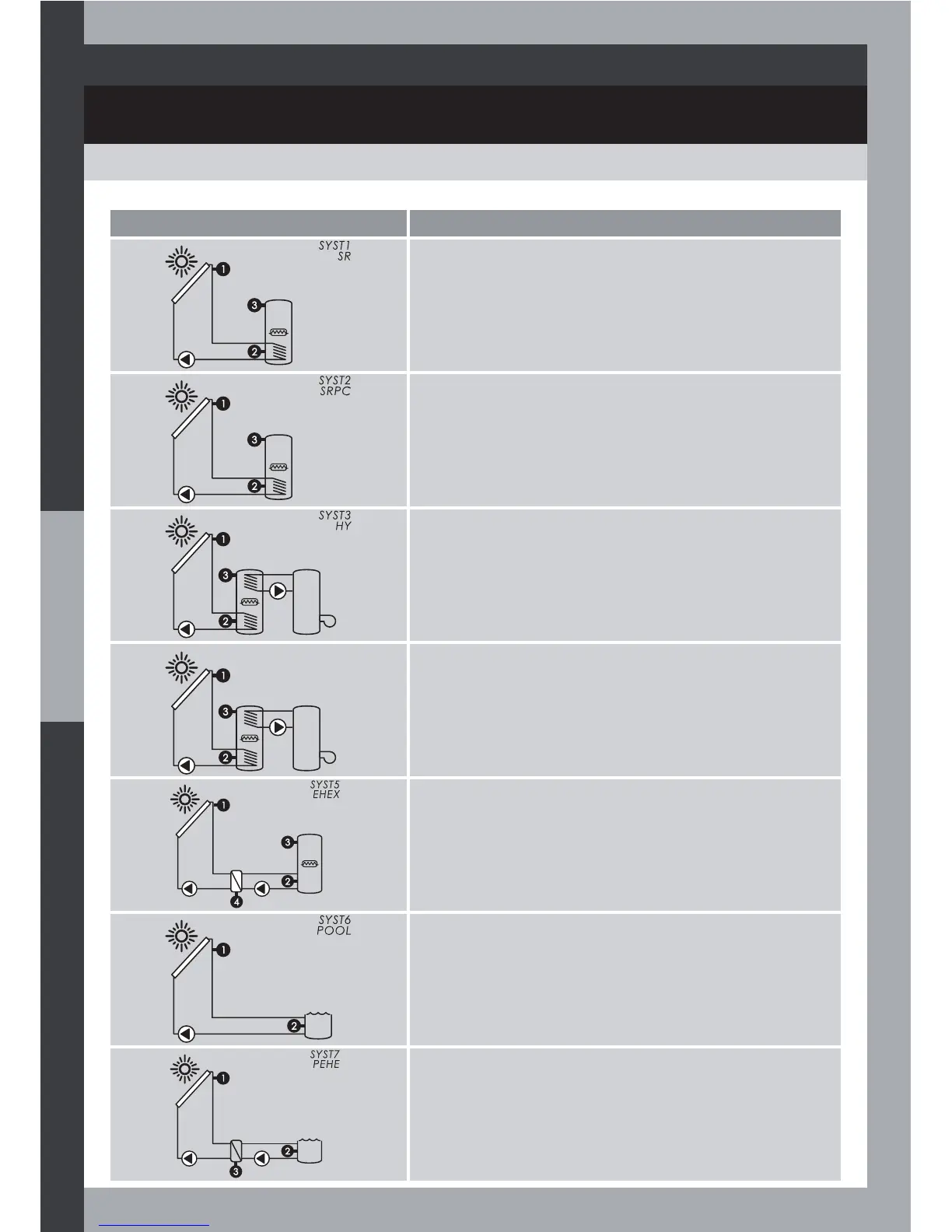

System Diagram System Description
System 1 = SR
This system is intended for the control of a basic solar
water heater with electric auxiliary heating
System 2 = SRPC
This system is intended for the control of a basic solar
water heater with solar pump speed control (RPM) and
Electric auxiliary heating
System 3 = HY
This system is intended for the control of a solar water
heater with both electric and hydraulic auxiliary
heating
SYST4
HYPC
System 4 = HYPC
This system is intended for the control of a solar water
heater with solar pump speed control (RPM) and both
electric and hydraulic auxiliary heating
System 5 = EHEX
This system is intended for the control of a solar water
heater from an external heat exchanger
System 6 = POOL
This system is intended to control the solar heating of
a pool
System 7 = PEHE
This system is intended to control the solar heating of a
pool from an external heat exchanger
