POWER SUPPLY AND ELECTRICAL
CONNECTIONS
OVERVIEW

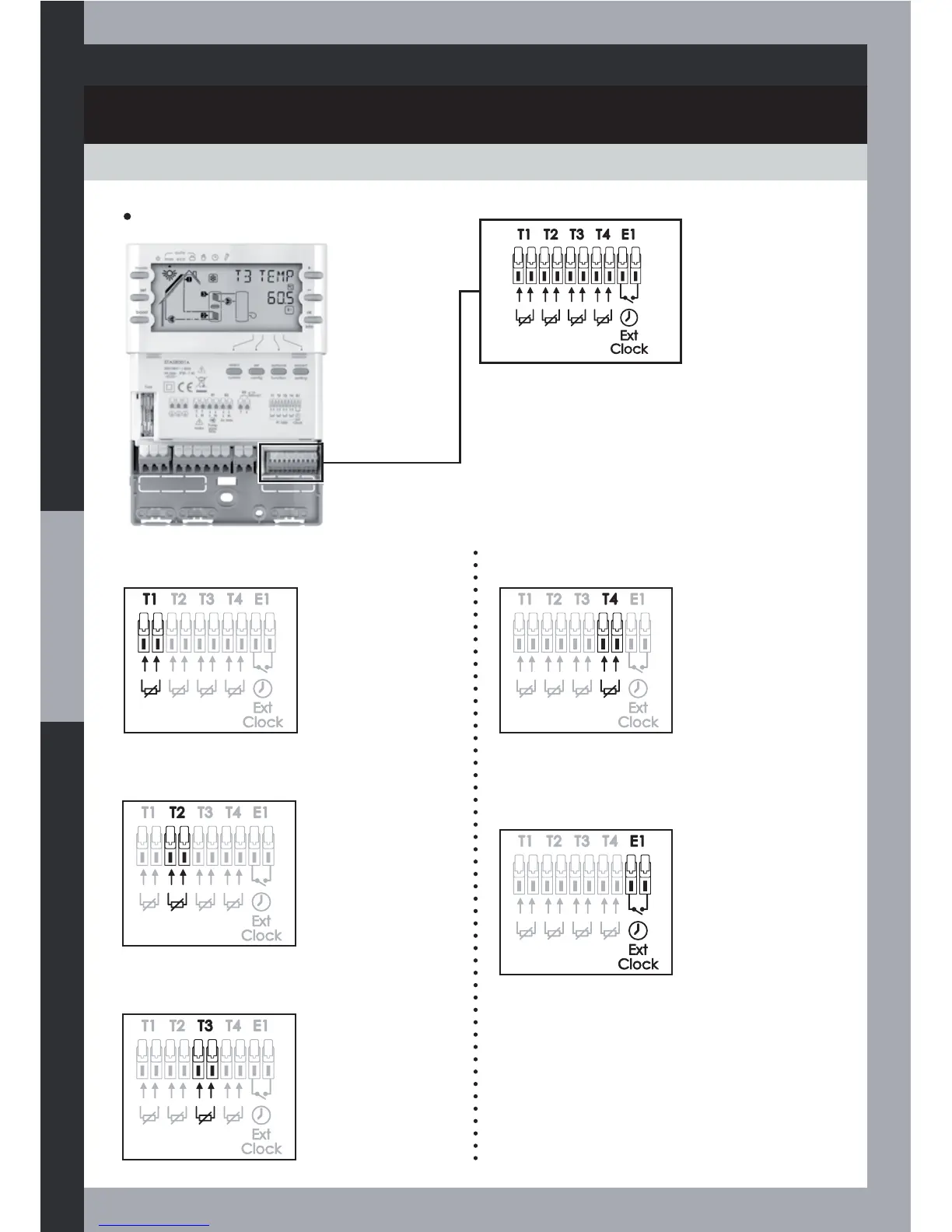

Signal connections
38
T1 sensor input
No polarity
T2 sensor input
No polarity
T3 sensor input
No polarity
T4 sensor input
No polarity
E1 synchronisation input
To be connected to an external time
switch
