N58 Hardware User Guide

Chapter 5 Application Interfaces

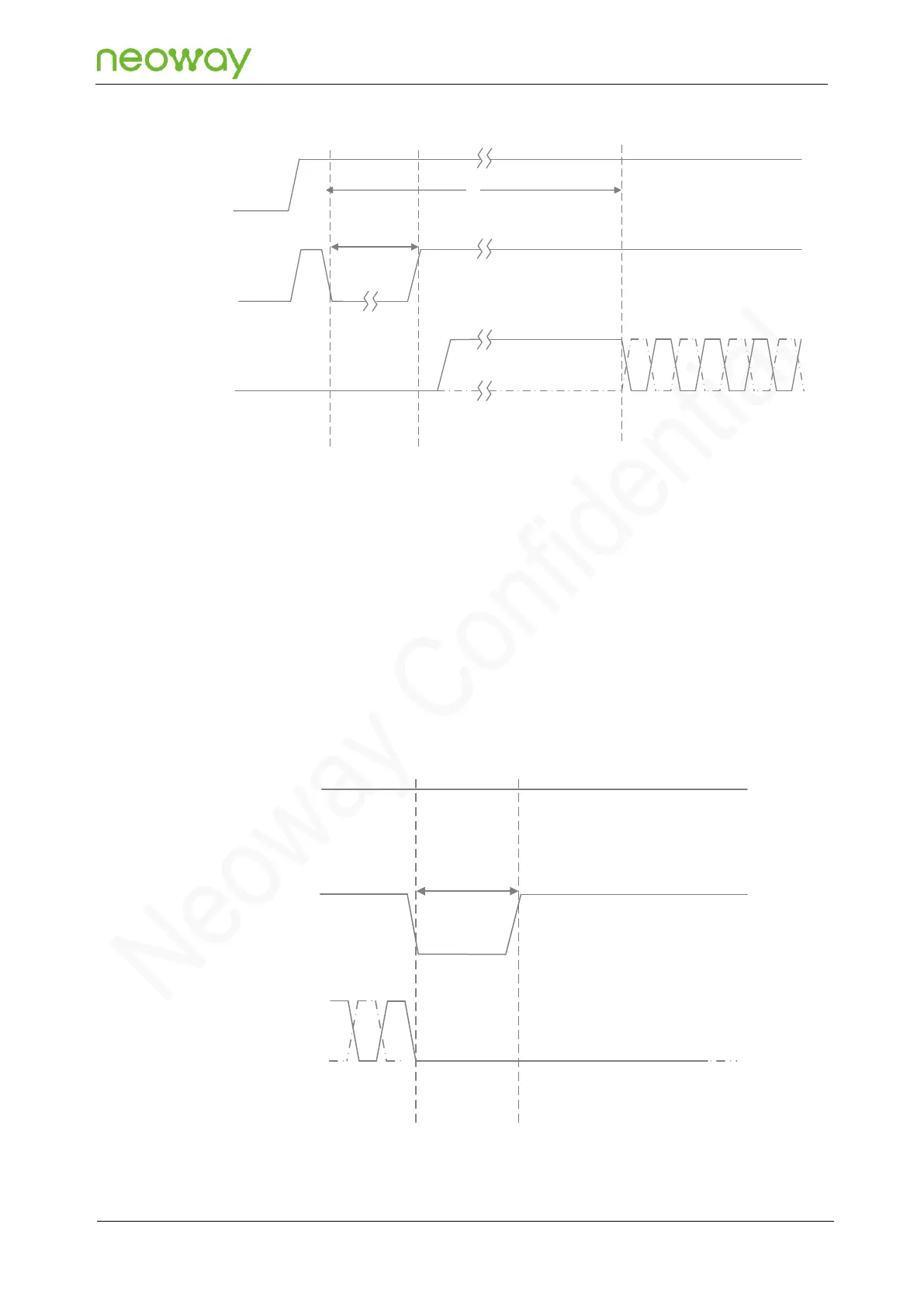

Figure 5-9 Startup process

VBAT

PWRKEY_N

UART

1.8s<T<3s

Active

Inactive

Shutdown Process

Two methods are available to shut down the module: hard shutdown and soft shutdown.

Hard shutdown is implemented by using the PWRKEY_N pin. When the module is working properly,

inputting a low-level pulse for more than 2s at the PWRKEY_N pin can trigger power-off of the module.

The following figure shows the hard shutdown process.

Figure 5-10 Hard shutdown process

VBAT

PWRKEY_N

UART

T>2s

InactiveActive
