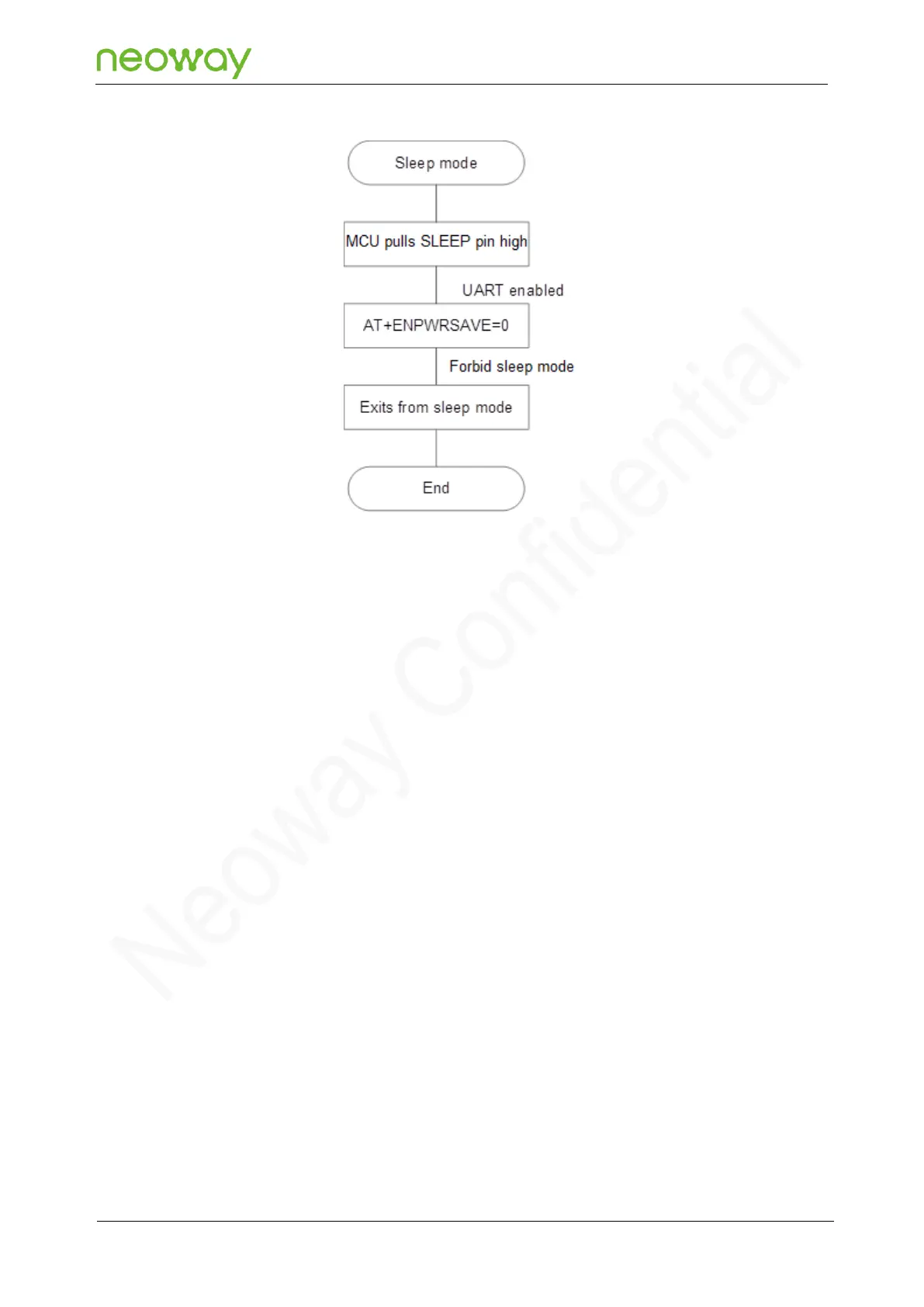

Figure 5-16 Process of exiting from the sleep mode
If a user wants to control the module's SLEEP pin to implement the wake-up function, the reference
design of the N58 module sleep and wake-up control circuit is recommended, as shown in Figure 5-
17.
Entering the sleep mode/exiting from the sleep mode (AT+ENPWRSAVE=2 can be sent over the UART
interface to enable the sleep and wake-up functions.)

Entering the sleep mode: user controlling "USER_CTR" to remain low level

Exiting from the sleep mode: user controlling "USER_CTR" to remain high level
