N58 Hardware User Guide

Chapter 5 Application Interfaces

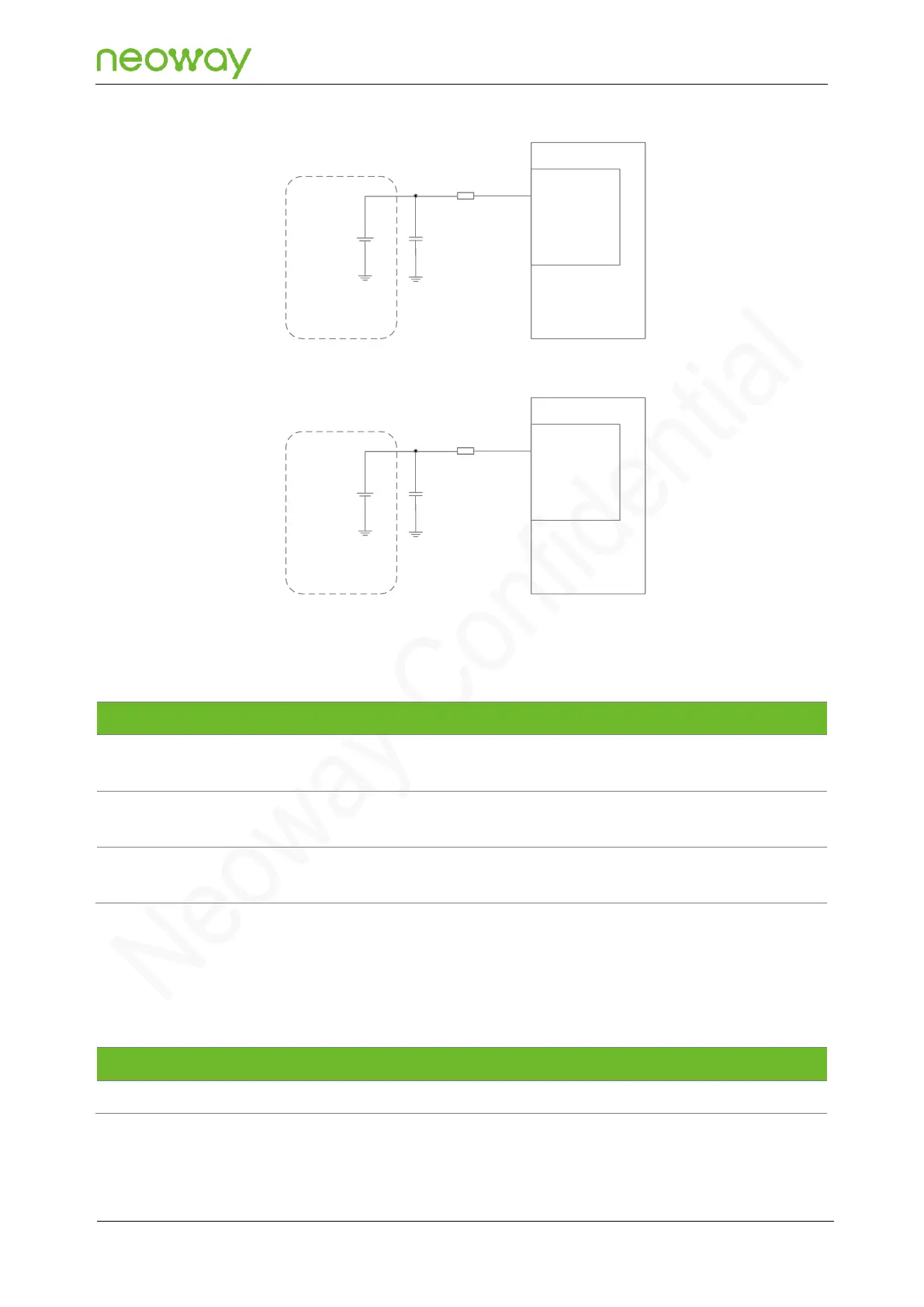

Figure 5-35 Reference design of VBACKUP and VRTC power supply

Backup

Battery or

Farad Cap

N58 Module

GNSS Chip

VBACKUP

Backup

Battery or

Farad Cap

N58 Module

RTC circuit

VRTC

0 Ω

5.6.6 GPIO

Pin Name

Pin No.

I/O

Function

Remarks

GPIO_0

GPIO, with the interruption function

Leave this pin floating if it is not

used.

GPIO_2

GPIO, with the interruption function

Leave this pin floating if it is not

used.

GPIO_3

GPIO, with the interruption function

Leave this pin floating if it is not

used.

N58 provides three GPIO interfaces, and all of these GPIO interfaces support the interruption function.

5.6.7 GNSS_LNA_EN

Pin Name

Pin No.

I/O

Function

Remarks

GNSS_LNA_EN

GNSS LNA enabling

Leave this pin floating if it is not used.

N58 provides the enabling control pin for the external GNSS low noise amplifier.
