N58 Hardware User Guide

Chapter 5 Application Interfaces

Soft shutdown is implemented by using AT commands. For details, see

Neoway_N58_AT_Command_Manual.

5.2.2 RESET_N

The RESET_N pin is used to reset the N58 module. When the module is working properly, inputting a

low-level pulse for more than 50 ms at the RESET_N pin can trigger the reset process of the module.

RESET_N is connected to VBAT internally by using a 20 kΩ pull-up resistor. Leave this pin floating if it

is not used.

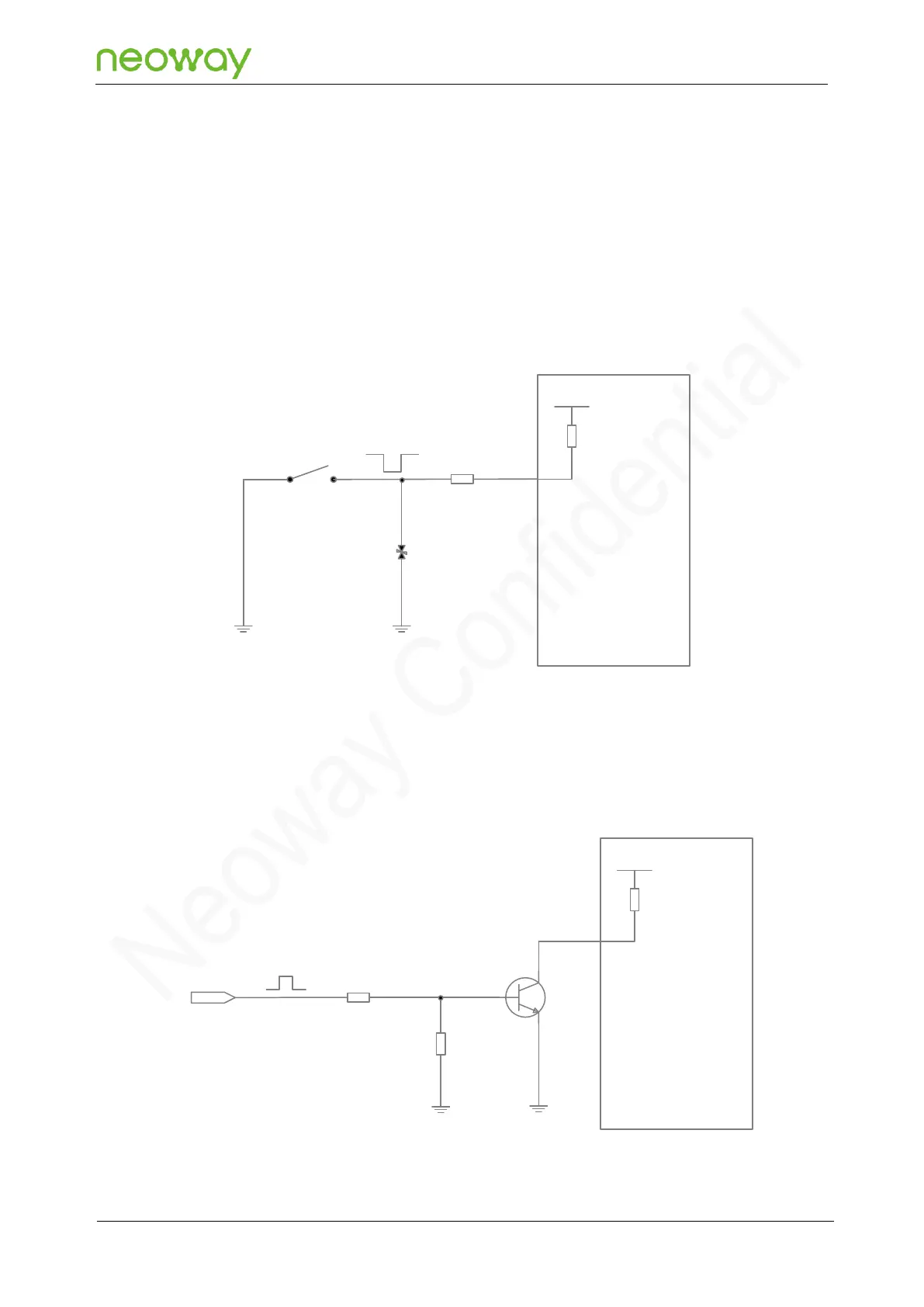

Figure 5-11 Module reset controlled by button

ESD

N58 Module

RESET_N

470Ω

VBAT

20kΩ

If the 1.8 V/2.8 V/3.0 V IO system is used, it is recommended that a triode be used for isolation. For

details about the design, see the following figure.

Figure 5-12 Reference reset circuit in which a triode is used for isolation

N58 Module

RESET_N

VBAT

20kΩ

47kΩ

4.7kΩ

USER
