N58 Hardware User Guide

Chapter 5 Application Interfaces

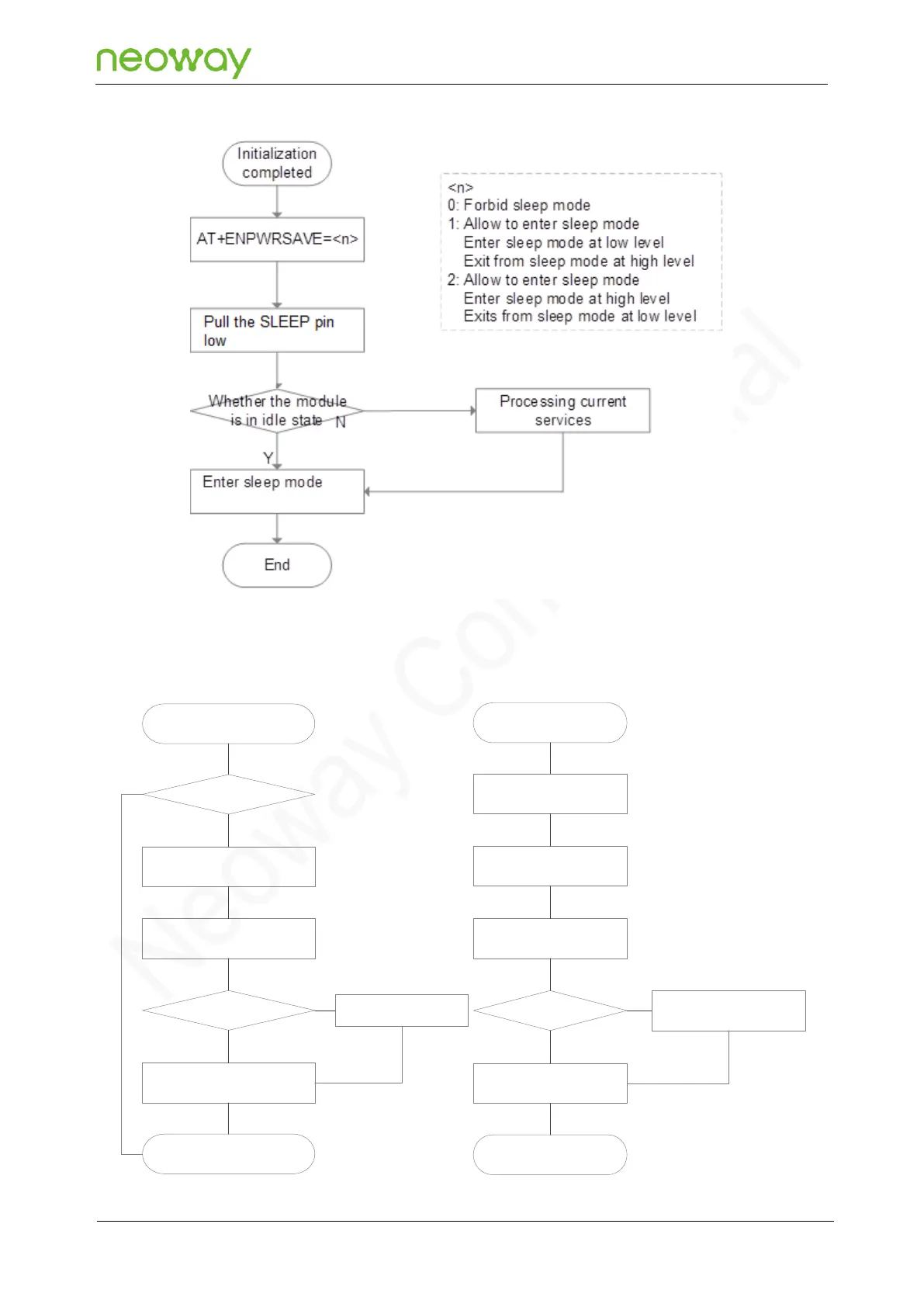

Figure 5-14 Process of entering the sleep mode

Figure 5-15 Process of call service processing in sleep mode

Sleep mode

MCU detects

information from

UART?

MCU pulls SLEEP pin to

high

End

Enable UART and

process services

MCU pulls SLEEP pin to

low

Wait till services

are processed

Complete service

procesing?

Sleep mode

Initiate an outgoing

service

MCU pulls SLEEP pin

high

Enable UART and process

outgoing service

Wait till service is

processed

Complete service

processing?

End

MCU pulls SLEEP pin

low
