N58 Hardware User Guide

Chapter 5 Application Interfaces

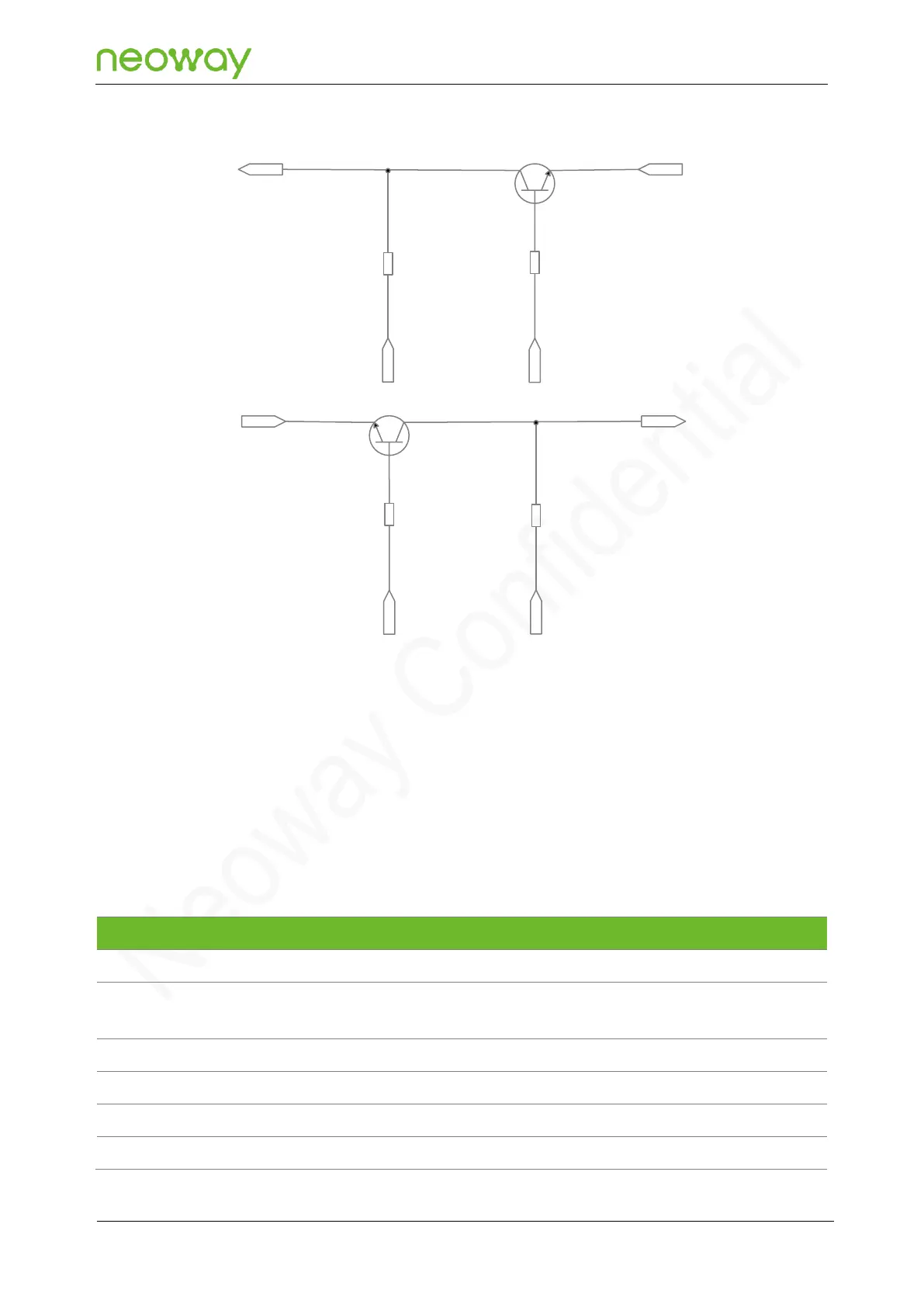

Figure 5-22 Recommended level shifting circuit 3

UART_RTS

VDD_1P8

VCC_IO

4.7 kΩ

10 kΩ

MCU_CTS

MCU_RTS

VDD_1P8

4.7 kΩ

10 kΩ

UART_CTS

Related components:



R2/R4: 2 kΩ to 10 kΩ. The higher the working rate of the UART interface, the smaller the value

of R2/R4.



R1/R3: 4.7 kΩ to 10 kΩ. The higher the working rate of the UART interface, the smaller the value

of R1/R3.



Q1/Q2: MMBT3904 or MMBT2222. High-rate transistors are better.

5.3.3 USIM

Pin Name

Pin No.

I/O

Function

Remarks

USIM1_VCC

USIM1 power output

Adaptive 1.8 V/3.0 V.

USIM1_DATA

USIM1 data

input/output

Connect this pin to USIM1_VCC by

using a 4.7 kΩ pull-up resistor.

USIM1_CLK

USIM1 clock output

USIM1_RESET

USIM1 reset

USIM1_DET

USIM1 detection

USIM2_VCC

USIM2 power output

Adaptive 1.8 V/3V.
