INTELLIGENT REACTIVE POWER MANAGEMENT
RM-12P
17
If reactive/active ratio exceeds preset value, an alarm occurs. This ratio
can be set for inductive/active and capacitive/active separately between
0-99 %. When capacitive/active ratio of the network exceeds preset value,
an alarm occurs. If this value is set as 0, this function is disabled.
3.9.b Reactive / Active Ratio Setting
In order to provide accurate compensation, high set value of
capacitive/active ratio is set in this menu. This value can be set between
0-99 %. When capacitive/active ratio of the network exceeds preset value,
an alarm occurs. If this value is set as 0, this function is disabled.
3.9.b.a Capacitive Ratio Setting

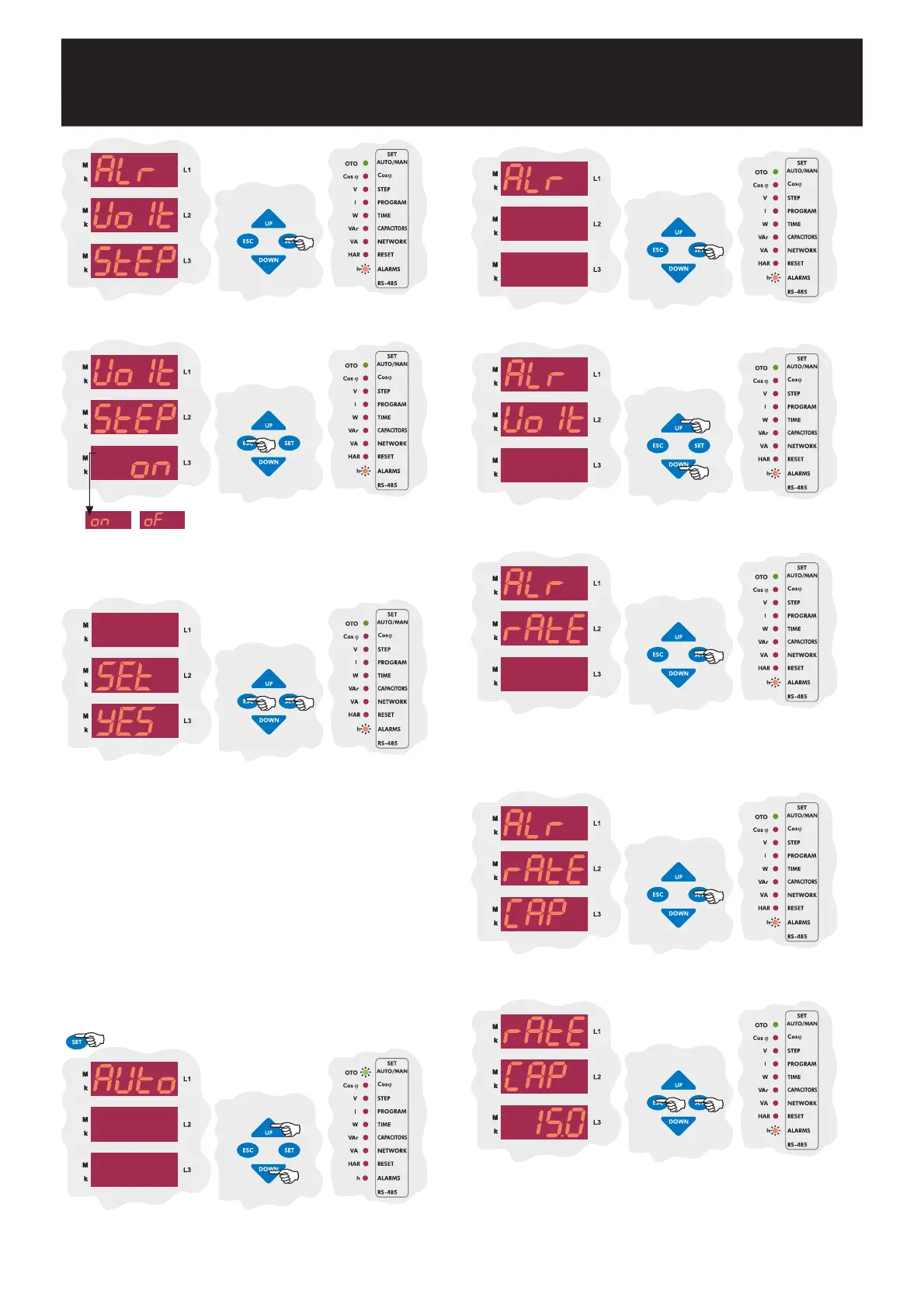

Press SET button for capacitor step settings.
By UP/DOWN buttons, select on or off option and press SET
button. If you do not want to set another parameter, press ESC button.
SAUE
If you do not want to set another parameter, in order to quit from
the menu, press ESC button one by one until SAVE SEt yES
is displayed. Press SET button to save your changes or press
ESC button to quit without saving.
By UP/DOWN buttons, find Alarm (Alr) menu. When Alarm menu is
selected, alarm led lights.
Press SET button for alarm settings.
By UP/DOWN buttons,find reactive/active ratio (rAtE) menu.
Press SET button for capacitive/active and inductive/active ratio settings.
Press SET button to set capacitive/active ratio.
Enter the capacitive/active ratio between 0-99 % and press SET button,
press ESC button, if you do not want to set another parameter.
Press SET button for 3 sec. in order to enter to the menu.
3 sec.
