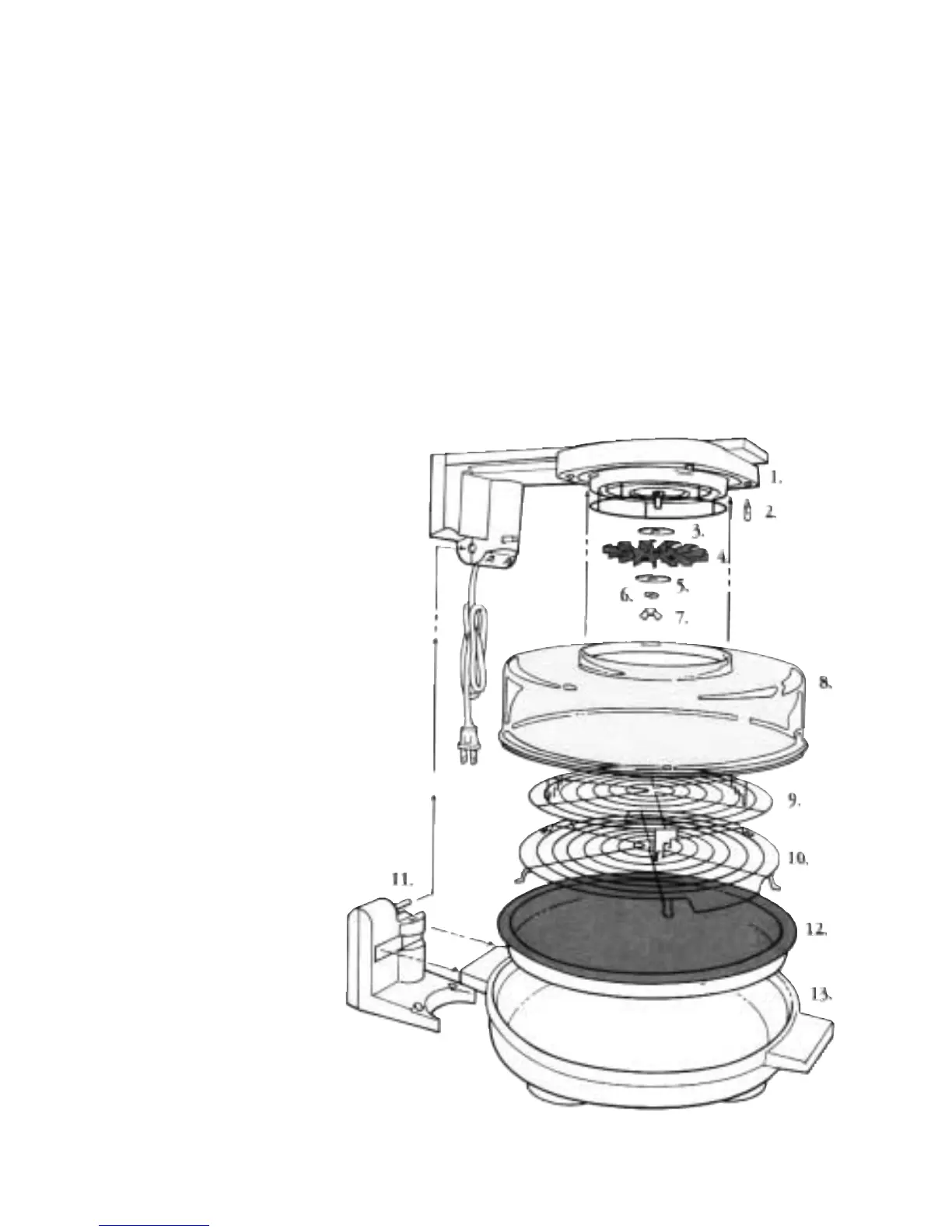

1. Fan Assembly- houses the
mechanical components of the oven.
2. Light bulbs (on some models)
3. Space washer - keeps the fan blade
distanced from the fan assembly.
4. Fan blade - spins at 4000 rpm to
cook food quickly
5. Space washer (on some models)
6. Lock washer - allows a snug
fit of the fan blade.
7. Wing nut - secures fan blade
to the fan assembly.
8. Lid - see-through dome of
the cooking enclosure.
9. Top/Hold-down rack - serves
as a “hold-down” rack for light
weight foods and at times may
be used as a second cooking
level.
10.Bottom rack - upper and
lower positions offer 2 levels
of cooking.
To order replacement parts call
1-800-288-4545.
11.Hinge pin assembly
connects to both the fan assembly
and handle/leg of base. Provides a
hinge when lifting the lid.
12.Non stick liner - prevents the base
from reaching undesired
temperatures. Allows easy cleanup.
13.Base - bottom of the cooking
enclosure.
Parts Diagram and Glossary of Terms
