Ness ECO8x User Manual

NESS ECO8x CONTROL PANEL – USER'S MANUAL
wIreLess prOdUCTs

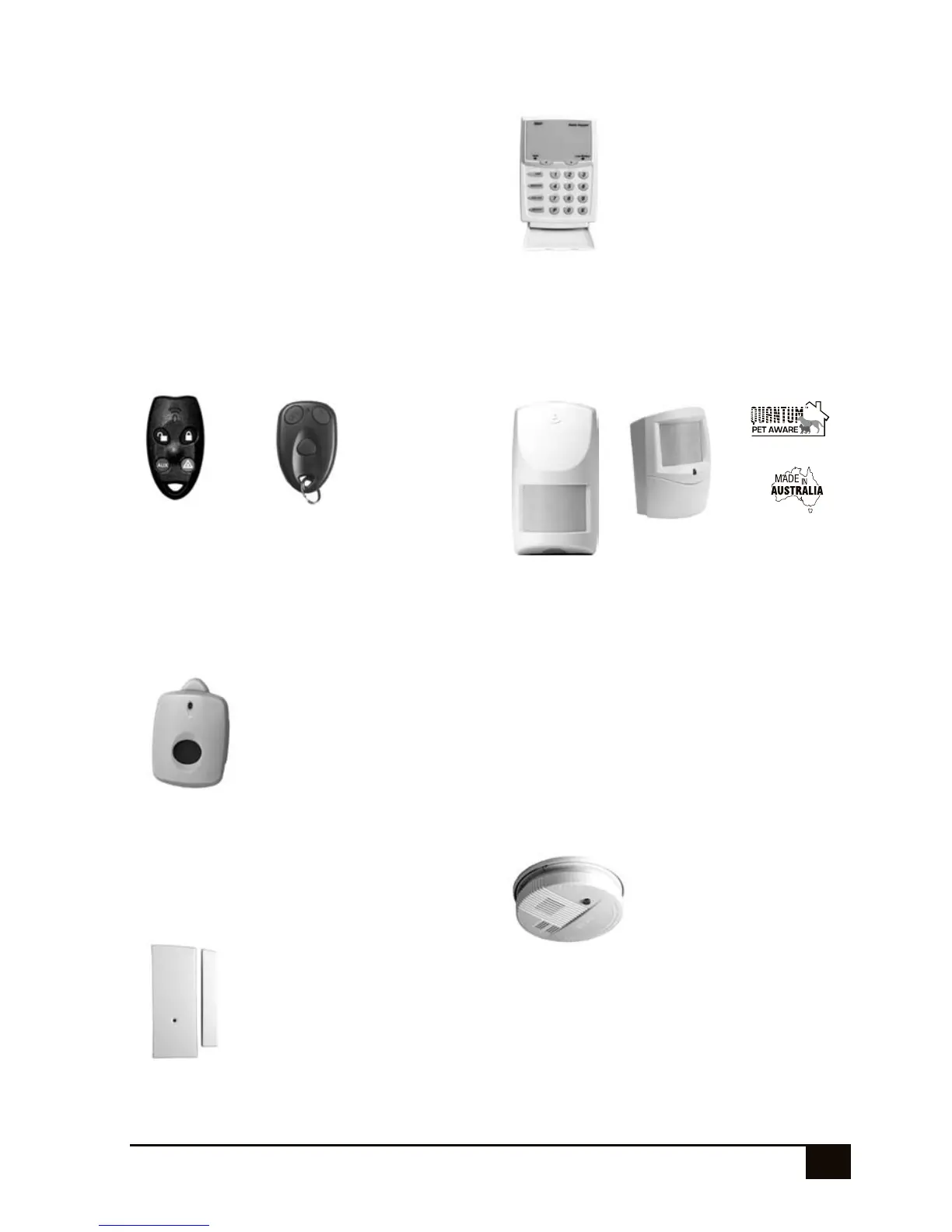

OPTIONAL RADIO ACCESSORIES
Ask your installer about the range of Ness radio devices
for the optional extra convenience of wireless remote
control and wireless detection.
Operating your Ness security system can be as
convenient as opening your car door. The Ness Radio
Key™ provides the benefits of separate ON, OFF and
PANIC buttons in a slim, waterproof remote control.
* Ness radio products require a Ness Radio Interface
(100-200) to be fitted to the control panel.
RADIO REED SWITCH
Ness Radio Reed Switch for
wireless door and window
protection. Includes long life
lithium battery.
RADIO KEYS
Fully waterproof, ultra slim 3 or 4 button Radio Keys for
remote control of the control panel.
With separate buttons for ON (Arm), OFF (Disarm),
PANIC and AUX functions (RK4 only). Including long
life lithium battery.
RADIO SMOKE
DETECTOR
The Ness Radio Smoke Detector
provides a fully wireless smoke
detection option which can
trigger the ECO8x panel's siren/
s and dialler if required (or as
programmed by your installer.)
The Ness Radio Smoke Detector uses Photo-electric
smoke detection technology. On board sounder and
test button for the sounder and radio transmitter. A
single battery powers the smoke detector and the
transmitter. Includes 9V lithium battery.
NESS RADIO KEYPAD
A unique fully portable radio keypad.
The Ness Radio Keypad provides
totally wireless Arming/Disarming of
the ECO8x control panel.
Also operates Home Mode and
provides a Panic alarm.
The Ness radio Keypad is suitable for use as a portable
keypad or for adding an extra keypad in areas where it
is not possible to install wires.
RADIO KEY PENDANT
Fully waterproof pendant style
transmitter can be used as a
portable wireless Panic button.
Supplied with a neckchain as
well as wristwatch straps. Ideal
for use as a medical alarm for
the elderly or infirm. (Central
Station Monitoring is especially
recommended when used for medical alarm purposes).
Includes long life lithium battery.
RADIO MOTION DETECTORS
Ness R15 Radio PIR and Ness R12 Radio PIR for
wireless motion detection.
Can be used in combination with Ness hardwired
detectors in areas where it is not possible to install
wires. Includes long life lithium battery.
The Ness R15PET Pet Aware model detects humans
but is immune to household pets. Allows you to protect
your home with your pets inside.
R15 Radio PIR
R12 Radio PIR
RK3 Radio
Key
RK4 Radio
Key
25
RK1 Radio
Key Pendant

Ness ECO8x Specifications

Power

plug pack voltage	240 V AC
plug pack output voltage	17 V AC
plug pack output current	1.4 A
power supply voltage	13.8 V DC
power supply current	800 mA

Battery

battery voltage	12 V
battery capacity	7.0 Ah
battery charging current	350 mA

Inputs and Outputs

zone inputs	8
end of line resistor	2200 Ohms
maximum keypads	3

Weight and Dimensions

box width	235 mm
box height	300 mm
box depth	90 mm
