NESS ECO8x CONTROL PANEL – USER'S MANUAL
9

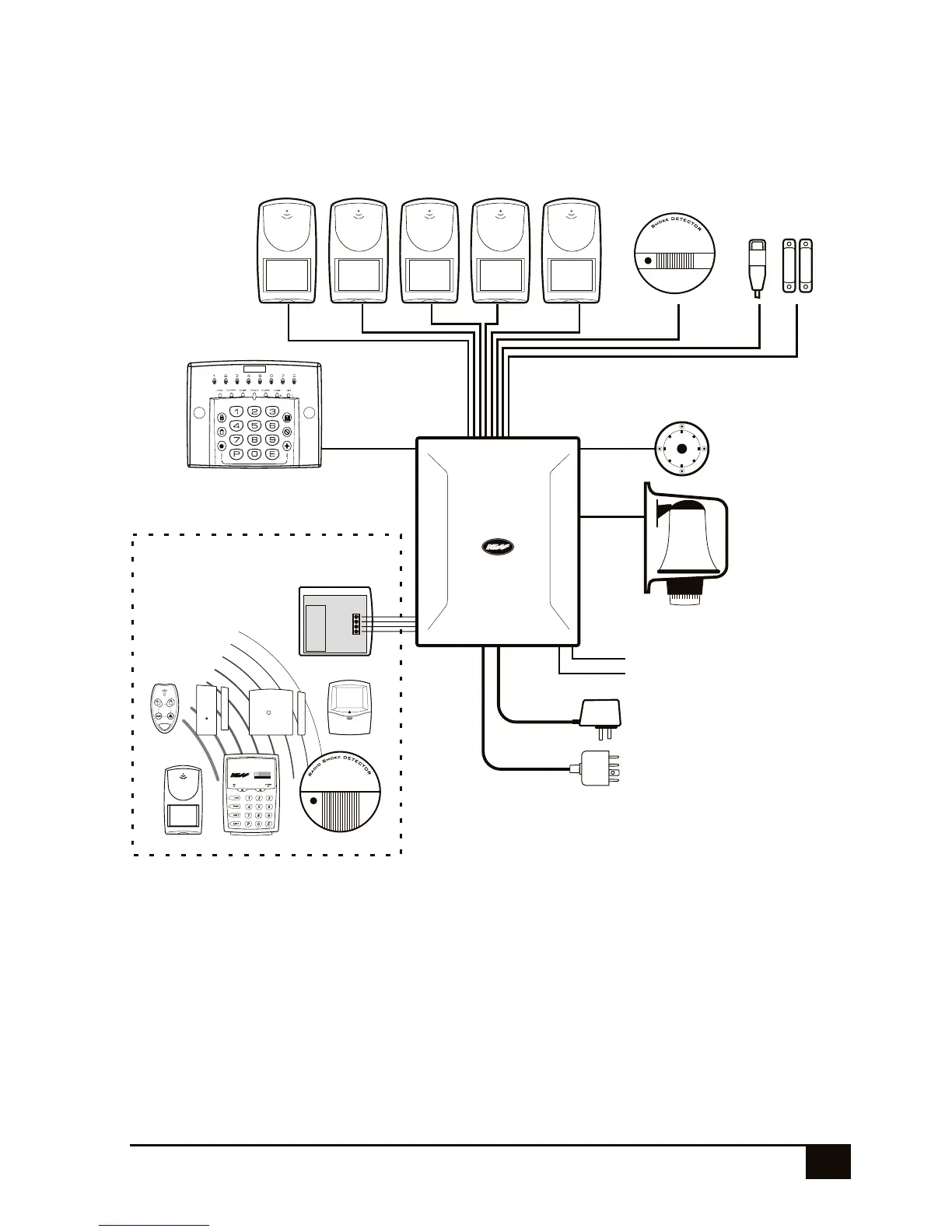

sysTeM OvervIew
OPTIONAL RADIO PRODUCTS
ECO8x KEYPAD
(Supplied)
ECO8x
MAIN
HOUSING
8 Zones for PIRs, Door & Window Switches, Vibration Sensors, Smoke Detectors...
Auxiliary Outputs for optional connection
to Electric Roller Doors, Lighting, Line Fail
Output, Radio Key Panic Output, Radio Key
AUX Output and more...
Radio PIRs, Radio Reed
Switches, Radio Keypad,
Radio Smoke Detector...
17V AC Plug Pack (Supplied)
Telephone Dialler Built-in
Telephone Lead (Supplied)
Internal Siren
External Siren
Strobe Light
R K P
RA DIO KE YPA D
See pages 24-25 for further information on the Ness range of wired and wireless accessories.

Ness ECO8x Specifications

Power

plug pack voltage	240 V AC
plug pack output voltage	17 V AC
plug pack output current	1.4 A
power supply voltage	13.8 V DC
power supply current	800 mA

Battery

battery voltage	12 V
battery capacity	7.0 Ah
battery charging current	350 mA

Inputs and Outputs

zone inputs	8
end of line resistor	2200 Ohms
maximum keypads	3

Weight and Dimensions

box width	235 mm
box height	300 mm
box depth	90 mm
