Net DVR DVR7004 - Page 22

22
User Manual

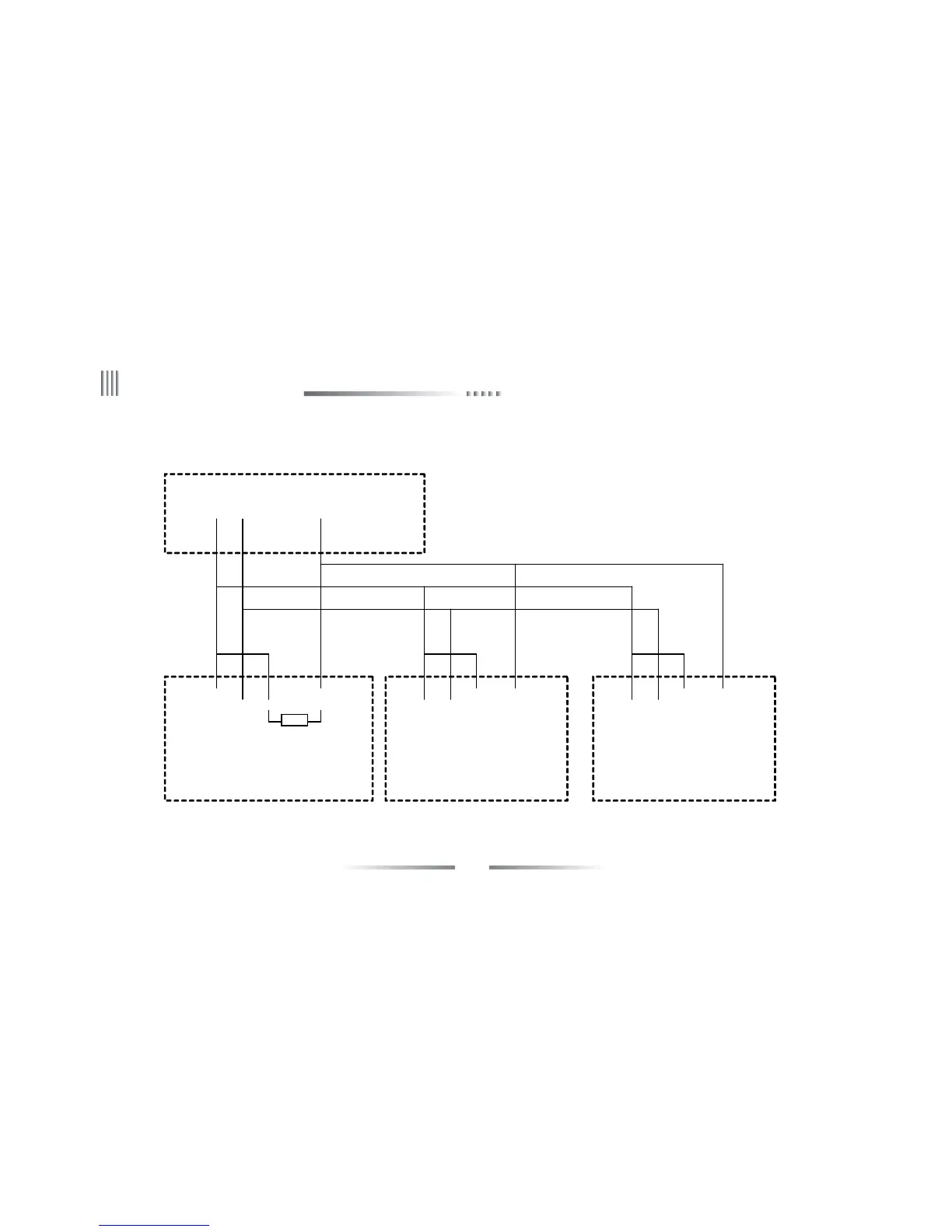

If we parallel connected the sensor, the DVR can not recognize the triggered sensor. User need to have a resistance.
DVR
Sensor 1
+12V GND Input 1 Input 2
+ - C NO/NC
Sensor 3
+ - C NO/NC
Sensor 2
+ - C NO/NC
