65
Net DVR
4.10 System Information
4.10.1 System Information

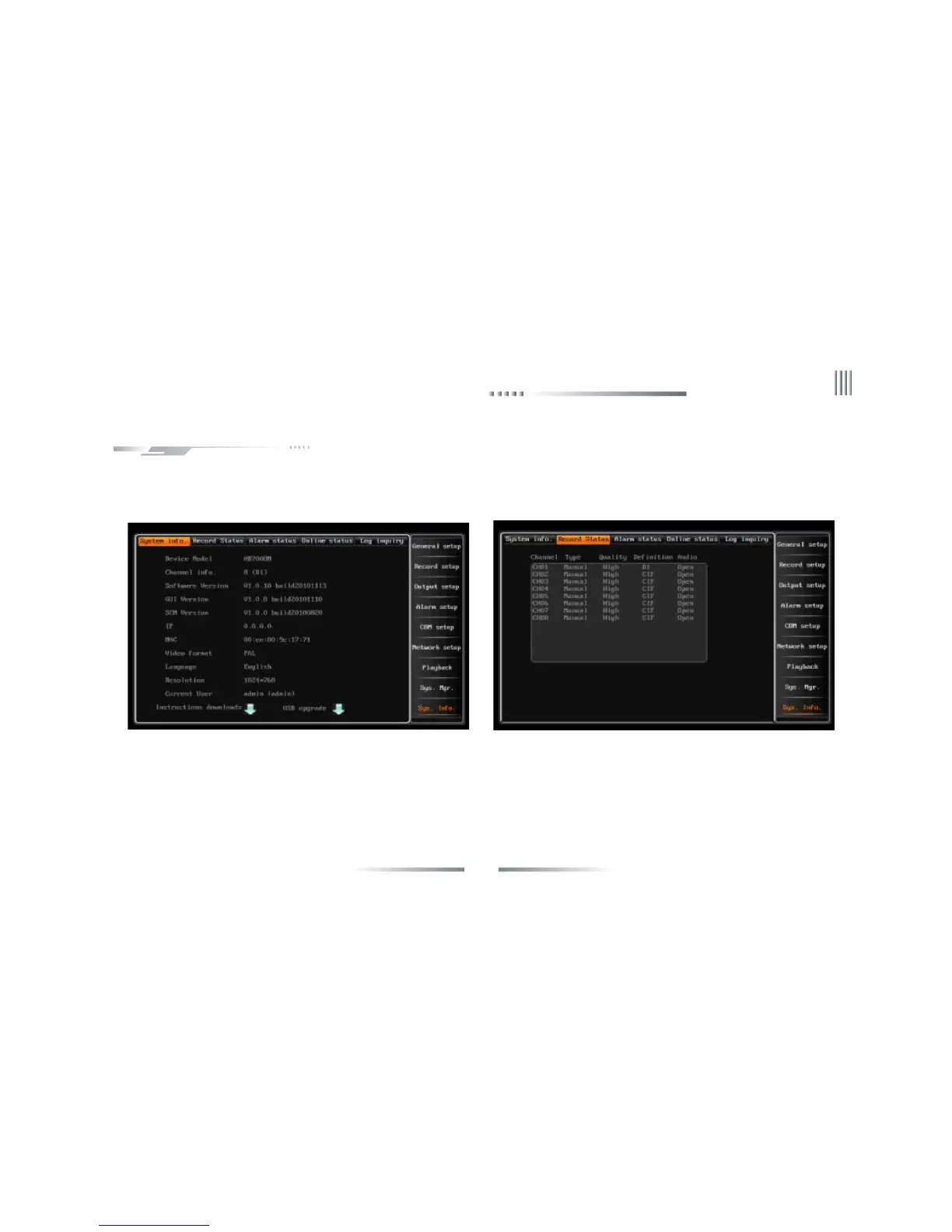

It displays software version, IP address etc. The interface is as follows:
4.10.2 Record Status
The interface is the right figure above:
Quick inquire the current system record status. It shows the record status of each channel’s current record type, record quality,definition and
the audio record status(on or off),if in the recording status, the “Type” bar would show the type of current record(manual,timer,motion, alarm),
record quality shows the current image quality.
