57
Net DVR
4.7.3 PPPOE

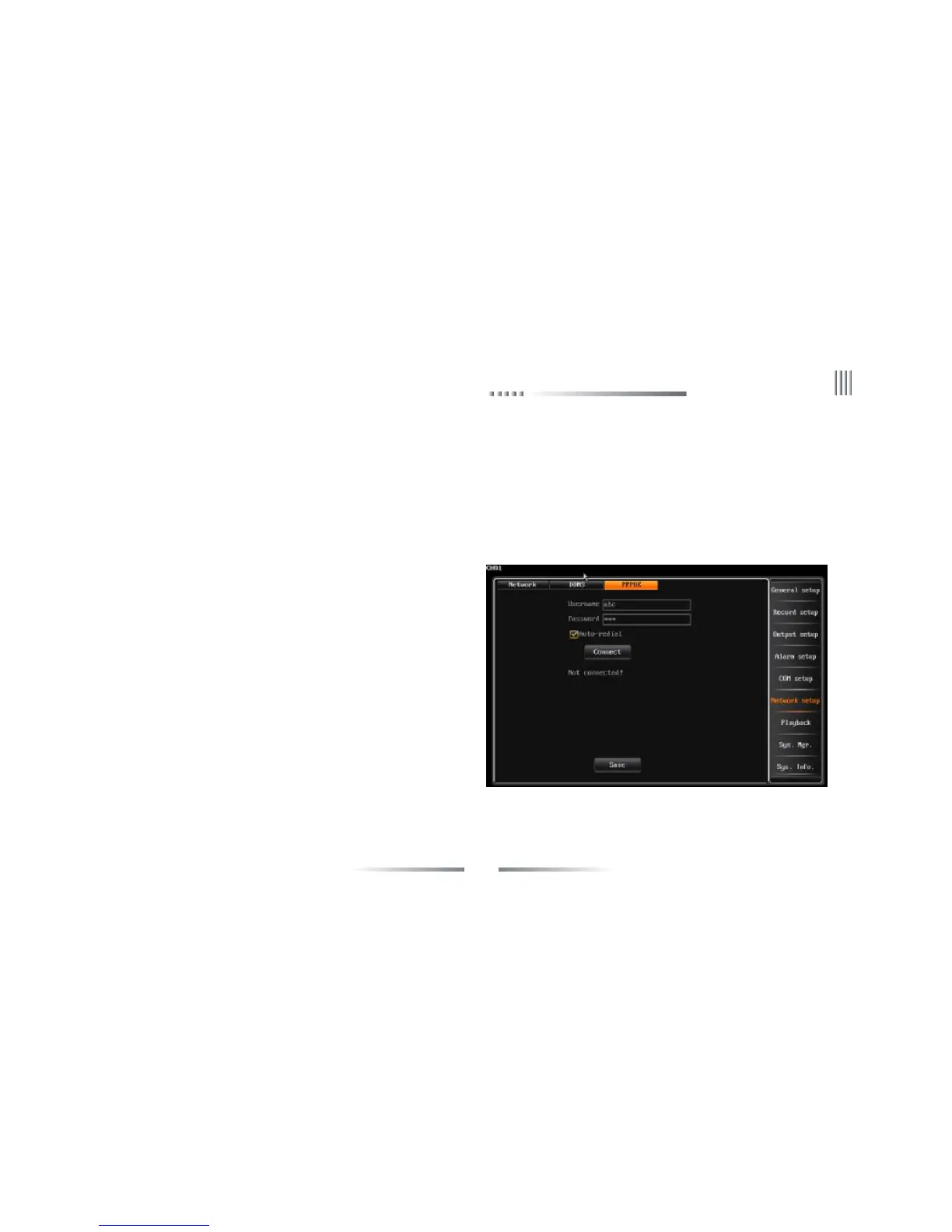

Select “Network Setup” and click “PPPOE”, and the interface is as follows:
PPPOE is one of the mode to connect to the WAN: Connect to the WAN by system via dialing the ADSL directly.
l Username:ADSL account user name.
l Password:ADSL account password.
l Connect:After you input the correct ADSL account and password,focus the cursor on the icon and press “Connect” to connect the WAN.
l Auto Connect: If you select this option, system will automatically connect the WAN after disconnection.
l Save password: If you select this option, system will automatically
save the ADSL password, so you don't need to input them again when
reconnect to the WAN.
l It shows the network information of the public network(such as IP,
Subnet address) after the connection succeeds. Press “save” button, it will
save the options include auto re-dial and save password.
Note: You must connect the net manually after first set the “auto re-dial”.
