UDry Contact
The NMC-PRO Climate consists of a maximum of 8 output cards, all of which (or some) can
be dry contact output cards; each card consists of 8 outputs, in total maximum 64 dry
contact outputs.
The dry contact output card can be used to drive devices of various voltages depending on
what is connected to it. When more than 40 outputs of type 24VAC are required the dry

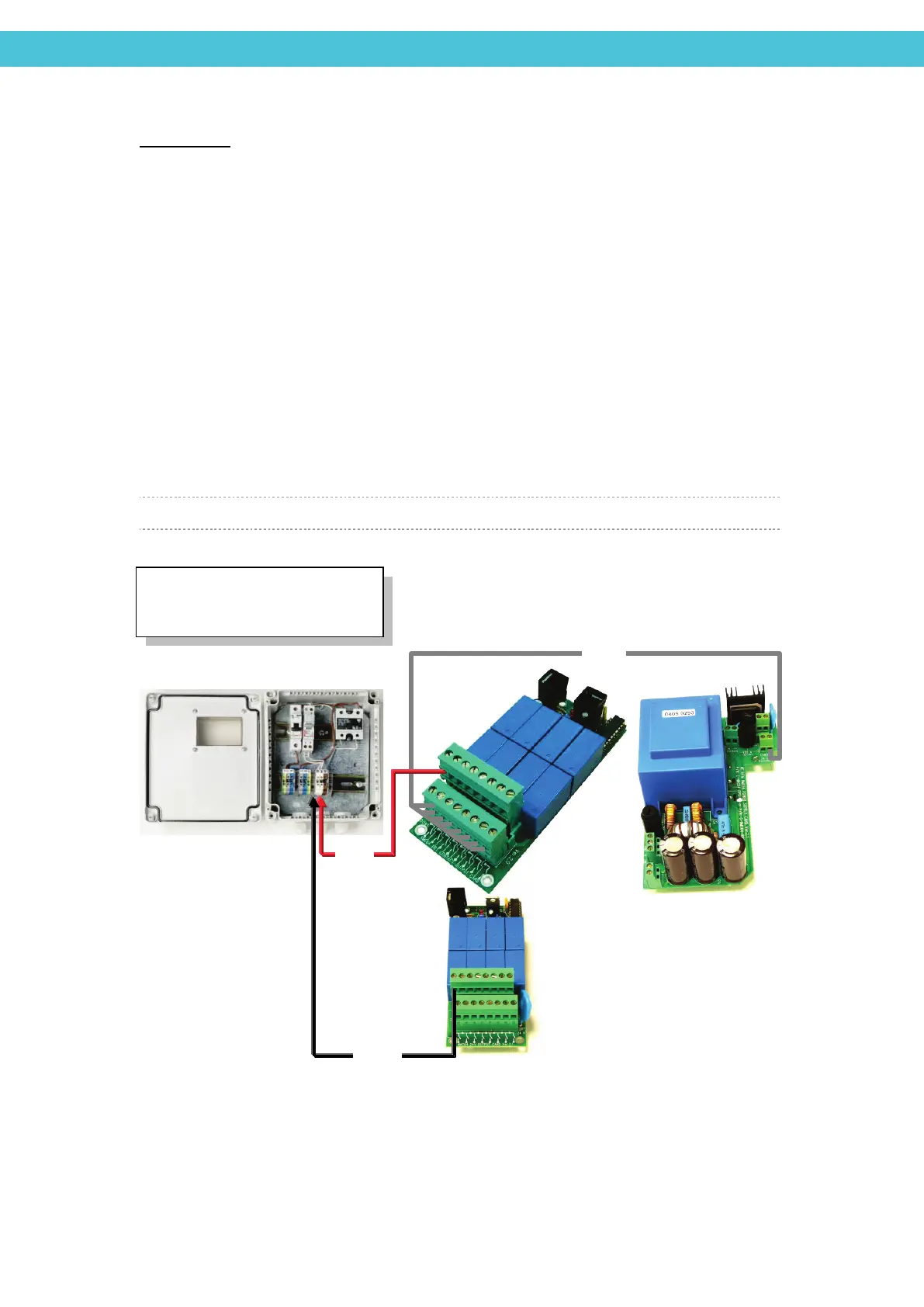

contact output card can be configured as seen in drawing below.
The dry contact output card consists of surge and lightening protection circuits and doesn’t
need the addition of external protections under normal conditions.
Specifications
8-64 N.O. low power relay Dry Contact Output 5 Amps
Maximum Output Changing Rate 0.4 Sec
Optional Digital Output Devices:
Same devices as at the table above
Black – Common
Red - Command
output card
Greenhouse Relay Enclosure
Red
To Next Page
