Doc. Name: NMC-PRO
Installation Manual Revision: 2 Page: 4
Crop Management Technologies

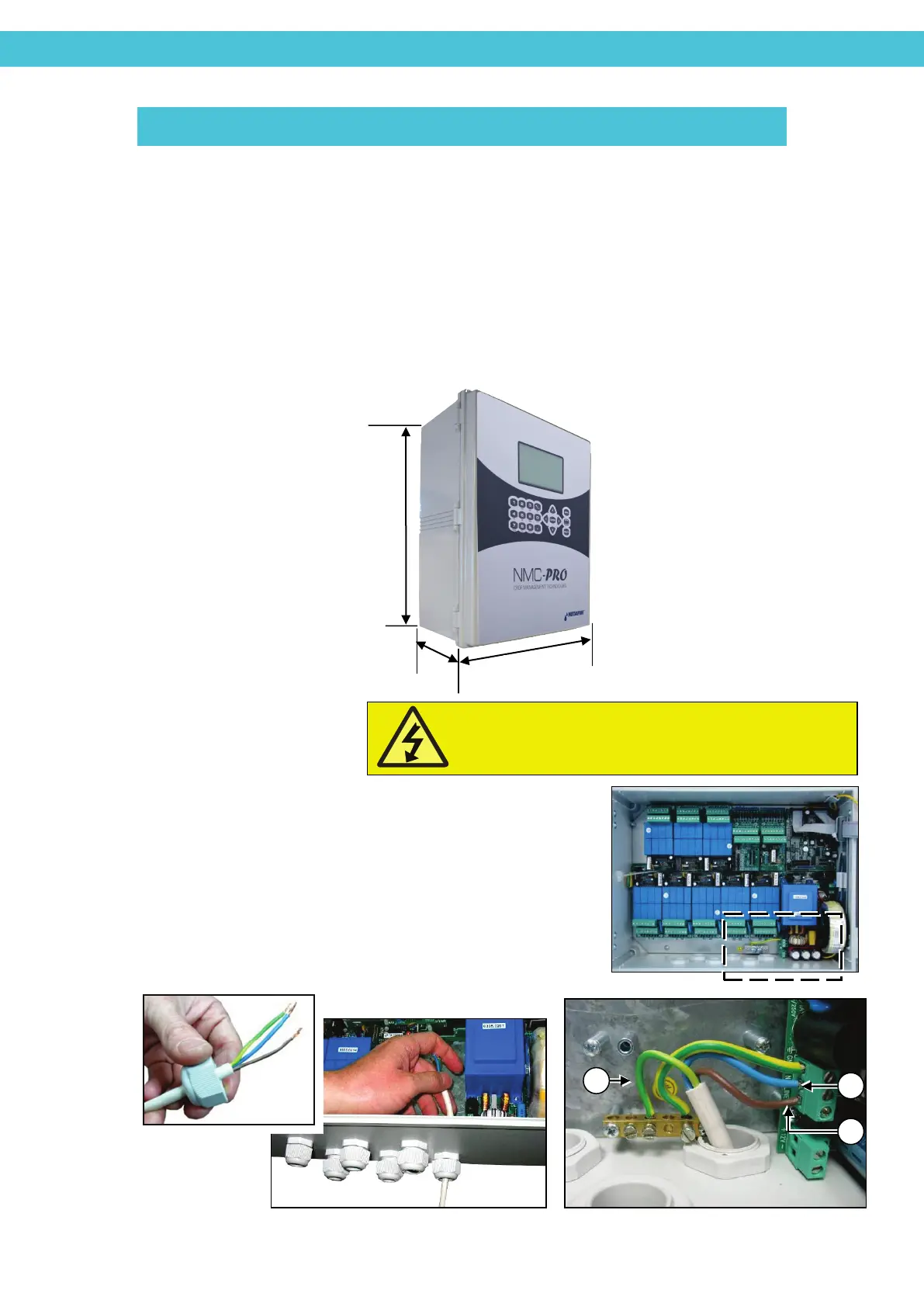

HARDWARE INSTALLATION
BASIC REQUIREMENTS FOR ON-SITE PREPARATION
Verify power source between 115 VAC or 220 VAC or 12VDC. (Australia & New
Zealand 240VAC±5%).
Verify grounding connection <10Ω.
Environment temperature between (-10°c/14°F)-(+60°c/140°F).
Verify protection from damaging climate conditions.
GENERAL DIMENSIONS
POWER SUPPLY WIRING
Main Power Wiring
Feed 3-wire cable through controller’s gland and route into
the controller (cable: 3 x1.5 mm
2
or 3 x 16 AWG)
(1) Grounding wire to Grounding terminal
(2) Neutral wire (blue) to Neutral (N) in connector terminal
(3) Phase wire (brown) to Line (L) in connector terminal
50 cm
19.7 in
40 cm
15.75 in
20 cm
CAUTION! SHOCK HAZARD! The electrical installation
should be performed by a qualified electrician only!
2
