NETWORK COMMUNICATION WIRING
Note: You can install up to 10 NMC-Pro Controllers in a single network, with each controller
having up to four zones.

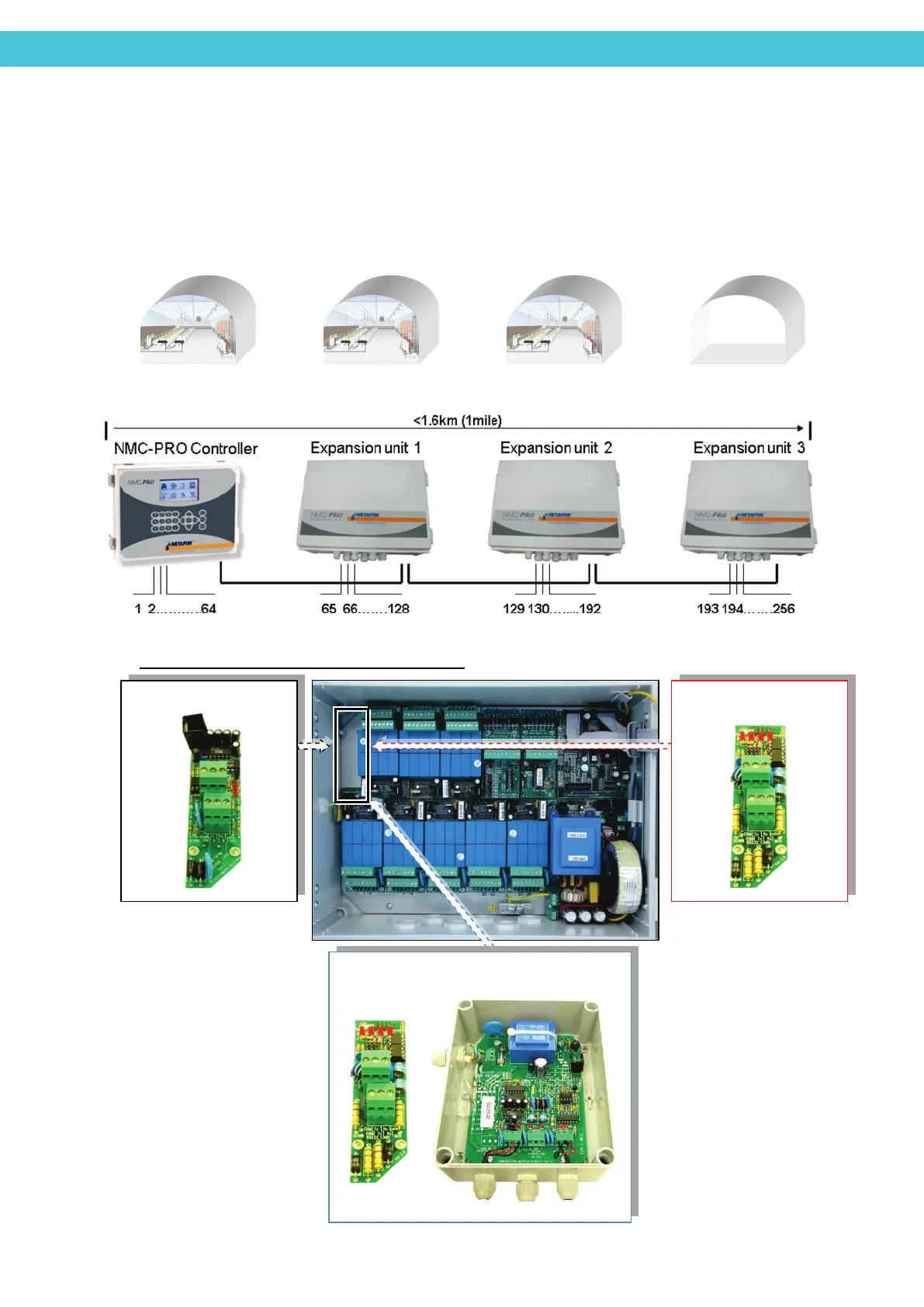

Expansion Unit Connections
Local Unit Communication Wiring Options
*Refer to page: 14 *Refer to page: 14
*Refer to page: 15
Option A: RS-485
Option B: RS-232
Option C: RS-232 via Line Driver
