Netafim NMC PRO CLIMATE - Weather Station Calibration (MENU 7.10.6)

NMC-PRO
INSTALLATION GUIDE
Doc. Name: NMC-PRO
׀
Installation Manual Revision: 2 Page: 12
Crop Management Technologies

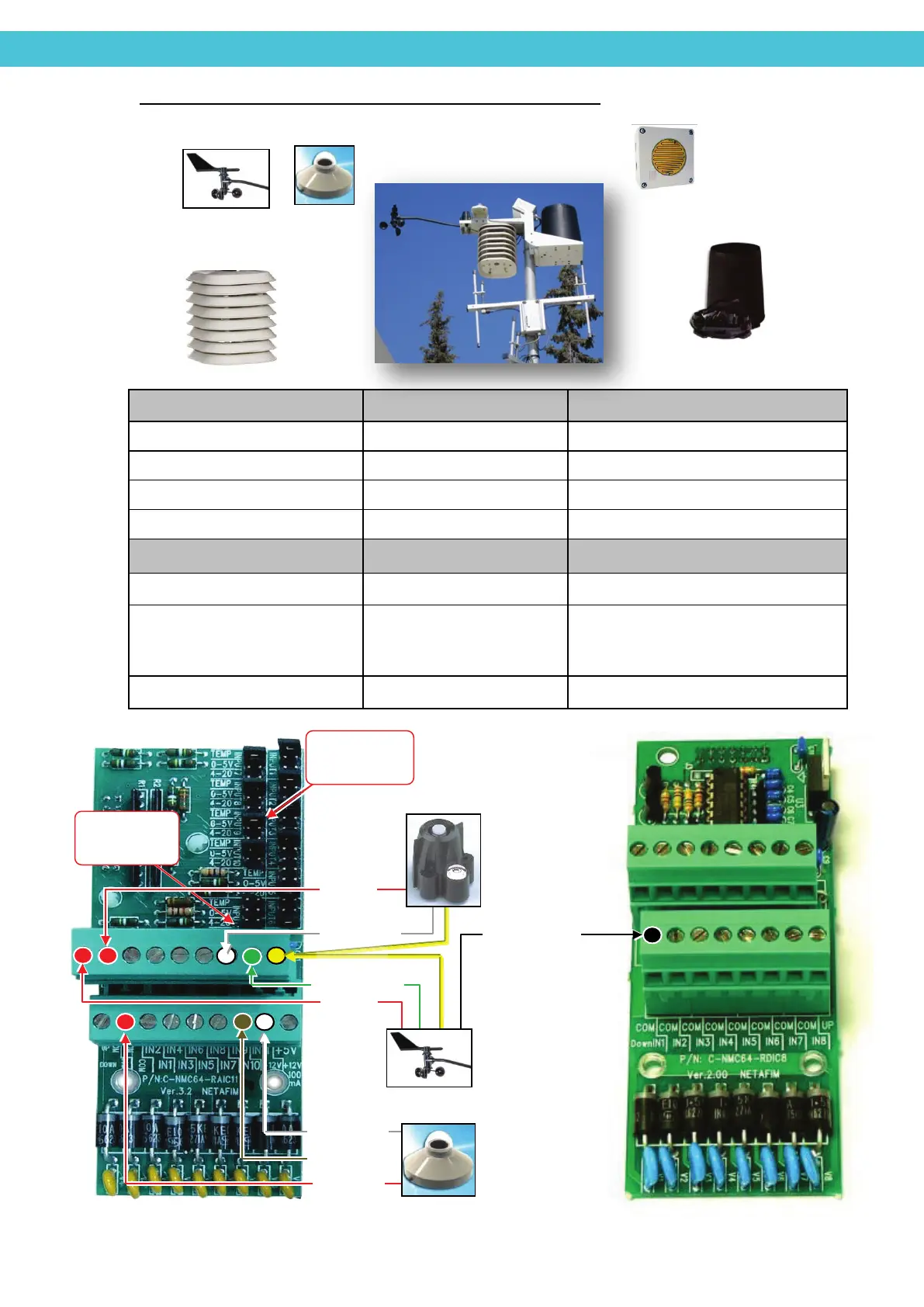

Weather Station Devices and Wiring (Analog/Digital Inputs)
Analog Sensors Measured Values Input Range
Temperature – RTS-s (outside temp) -20°C to 50°C/ -4°F to 122°F 30kOhm
Relative Humidity – RHS-10 0 – 100% 0 – 3 VDC
Wind Direction - Davis 0 - 360° 0 – 20kOhm
Solar Radiation 0 – 1800 w/m² 0 – 5 VDC
Digital Sensors Measured Values Input Range
Wind Speed 4-280 km/hr (2-175 mph) Pulse output (Wind Cups & Magnetic Switch)
Rain Collector
Rain amount (mm or inch)
Collection area: 200 cm
2
(31 in
2
)
Resolution: 0.254mm (0.01")
Dry contact (tipping bucket)
Rain Detector Rain, No Rain Dry contact / 0-5VDC
Wind Direction
COM (red)
INPUT 11 (green)
INPUT1 (black)
INPUT11 jumper
must be located on
WIND
COM (green)
Pyranometer
Radiation
INPUT10 jumper
must be located on
0 – 5V for Radiation
Wind Speed and
Wind Direction
Temperature and
Humidity sensor
Radiation
Rain Collector
Rain Detector
+12V (white)
INPUT10 (brown)
INPUT9 (white)
COM (red)
Radiation
+5V (yellow)
