Security Gateway Manual Netgate-4200
Warning: M.2 cards are keyed. Do not force an M.2 card into a slot with mismatched keying.
Refer to M.2 Edge Connector Keying for a depiction of the different M.2 key types.

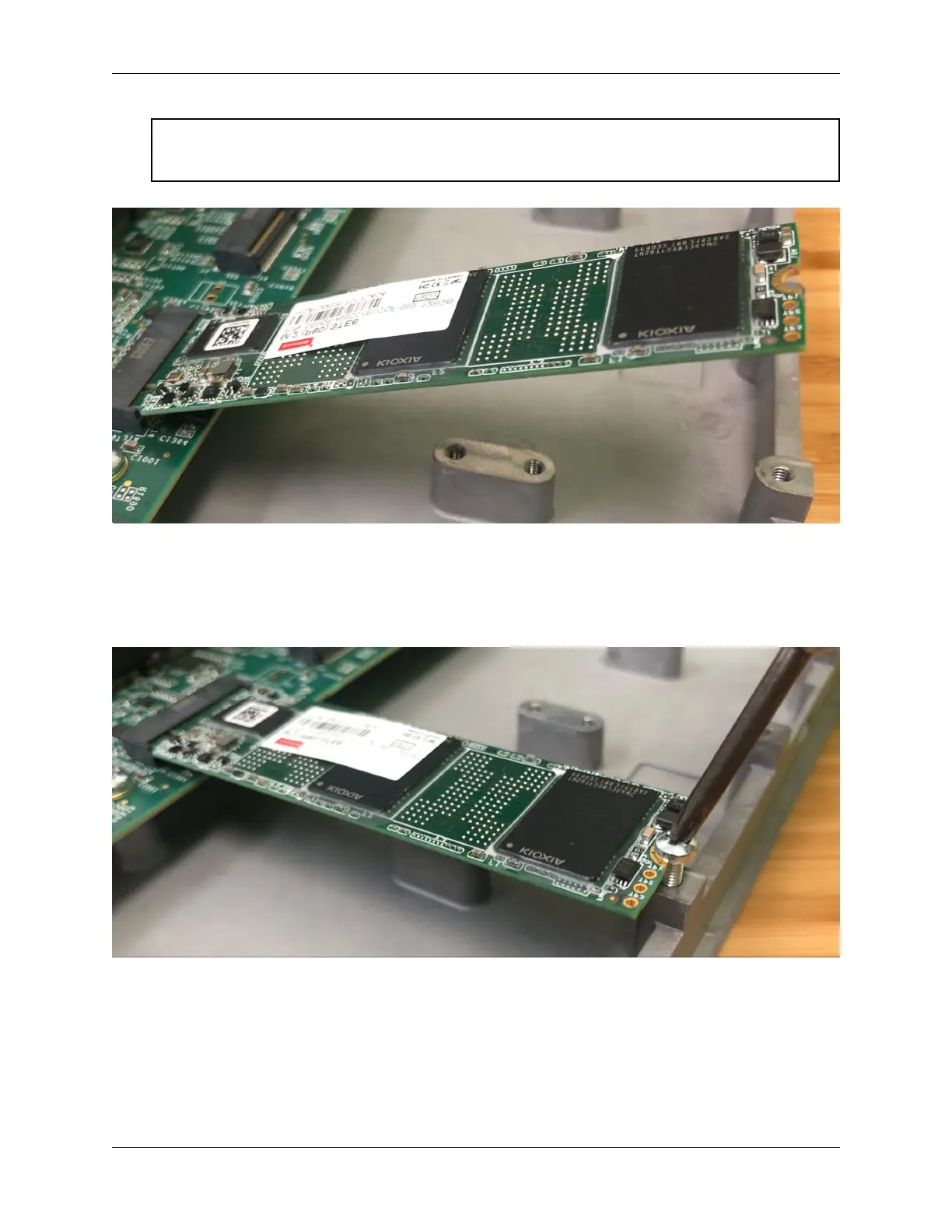

Fig. 35: Inserting the SSD into M.2 socket #3 (J13) at an angle
3. Gently push down the M.2 NMVe card until it reaches the retention screw hole.
4. Insert the retention screw into the standoff and tighten using the #1 Phillips head screwdriver.
Fig. 36: Fastening the M.2 NVMe card retention screw
© Copyright 2024 Rubicon Communications LLC 89
