NETGEAR C3000 User Manual

Specify Network Settings
59
N300 WiFi Cable Modem Router Model C3000
Enable or Disable the Wireless Radio
If you used the WiFi On/Off button to turn off the wireless radio, you can’t log in to the modem
router to turn them back on. You must press the WiFi On/Off button again for two seconds to
turn the wireless radio back on.
 To enable or disable the wireless radio:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.

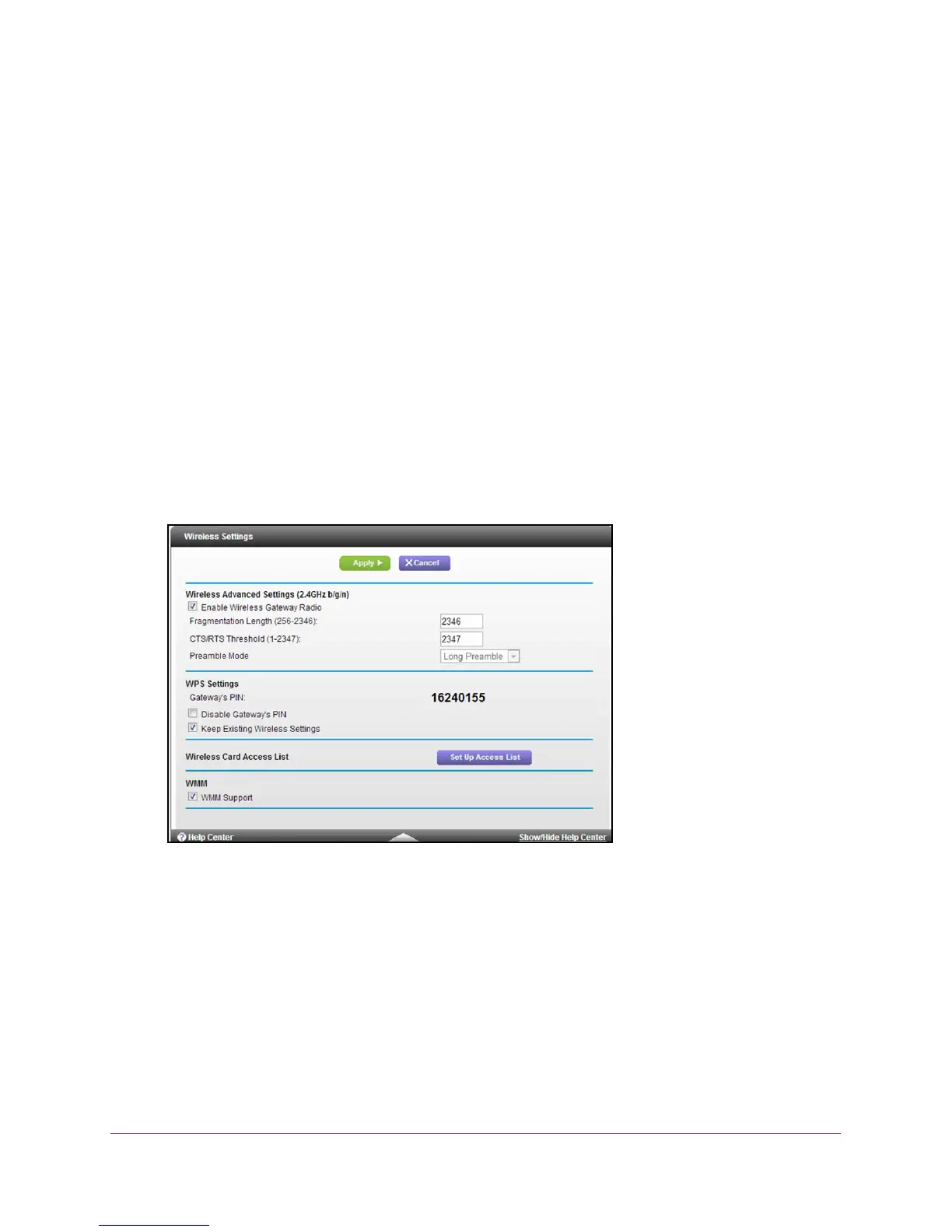

4. Select ADV
ANCED > Advanced Setup > Wireless Settings.
5. Scroll down and select or clear the Enable Wireless Gateway Radio check box.
Clearing this check box turns off the WiFi radio of the modem router.
6. Click the Apply button.
If you turned off the wireless radio, the WiFi On/Off LED and the WPS LED turn off. If you
turned on the wireless radio, the WiFi On/Of
f LED and the WPS LED light.

NETGEAR C3000 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	340 Mbit/s
Power source type	DC
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Security algorithms	WPA, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Depth	41 mm
Width	113 mm
Height	193 mm
Weight	352 g
