Manage Your Network
69
N300 WiFi Cable Modem Router Model C3000
Show Statistics
To view statistics for the Internet connection:
1. Launch an Internet browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED.
5. In the Internet Port pane, click the Show Statistics button.

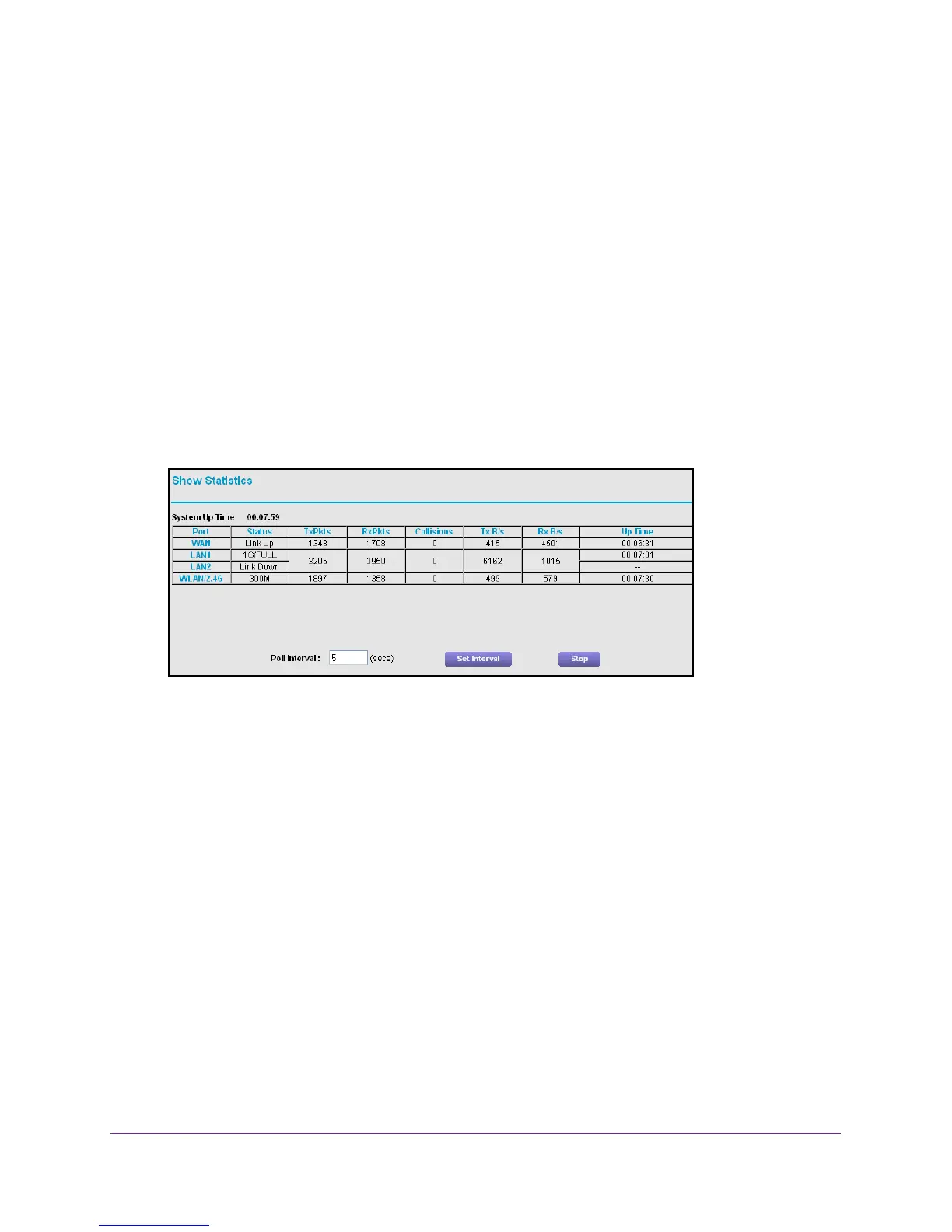

The following information displays:
• System Up T
ime. The time elapsed since the modem router powered on.
• Port.
The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port,
the screen displays:
- Status.
The link status of the port.
- TxPkts.
The number of packets transmitted on this port since the modem router
powered on.
- RxPkts.
The number of packets received on this port since the modem router
powered on.
- Collisions.
The number of collisions on this port since reset or manual clear.
- Tx B/s.
The transmission (outbound) bandwidth in use on the WAN and LAN
ports.
- Rx B/s.
The reception (inbound) bandwidth in use on the WAN and LAN ports.
- Up T
ime. The time elapsed since this port acquired the link.
- Poll Interval.
The interval at which the statistics are updated in this screen.
6. T
o change the poll interval, type a number in the Poll Interval field and click the Set Interval
button.
