NETGEAR C3000 User Manual

Manage Your Network
79
N300 WiFi Cable Modem Router Model C3000

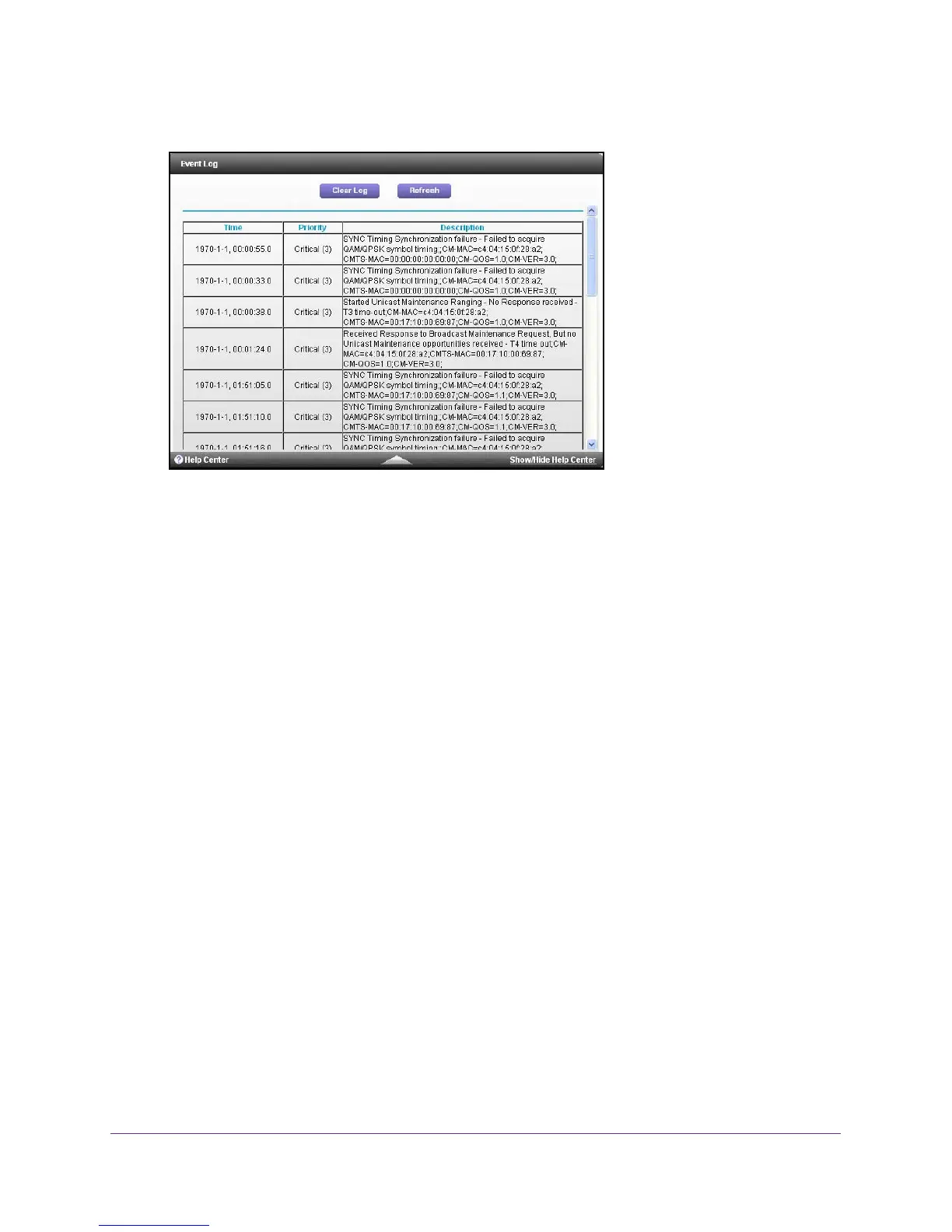

4. Select ADVANCED > Administration > Event Log.
The log screen shows the following information:
• T
ime. The time the event log entry was recorded.
• Priority.
The severity for this event log entry.
• Description.
A description of this event log entry.
5. T
o refresh the log screen, click the Refresh button.
6. T
o clear the log entries, click the Clear Log button.
Run the Ping Utility
Ping is an administration utility that tests whether a computer on the network is reachable
and measures the time it takes messages sent from the originating device to reach a
destination computer and return.
 To run a ping test:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Administration > Diagnostics.

NETGEAR C3000 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	340 Mbit/s
Power source type	DC
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Security algorithms	WPA, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Depth	41 mm
Width	113 mm
Height	193 mm
Weight	352 g
