Manage Your Network
81
N300 WiFi Cable Modem Router Model C3000

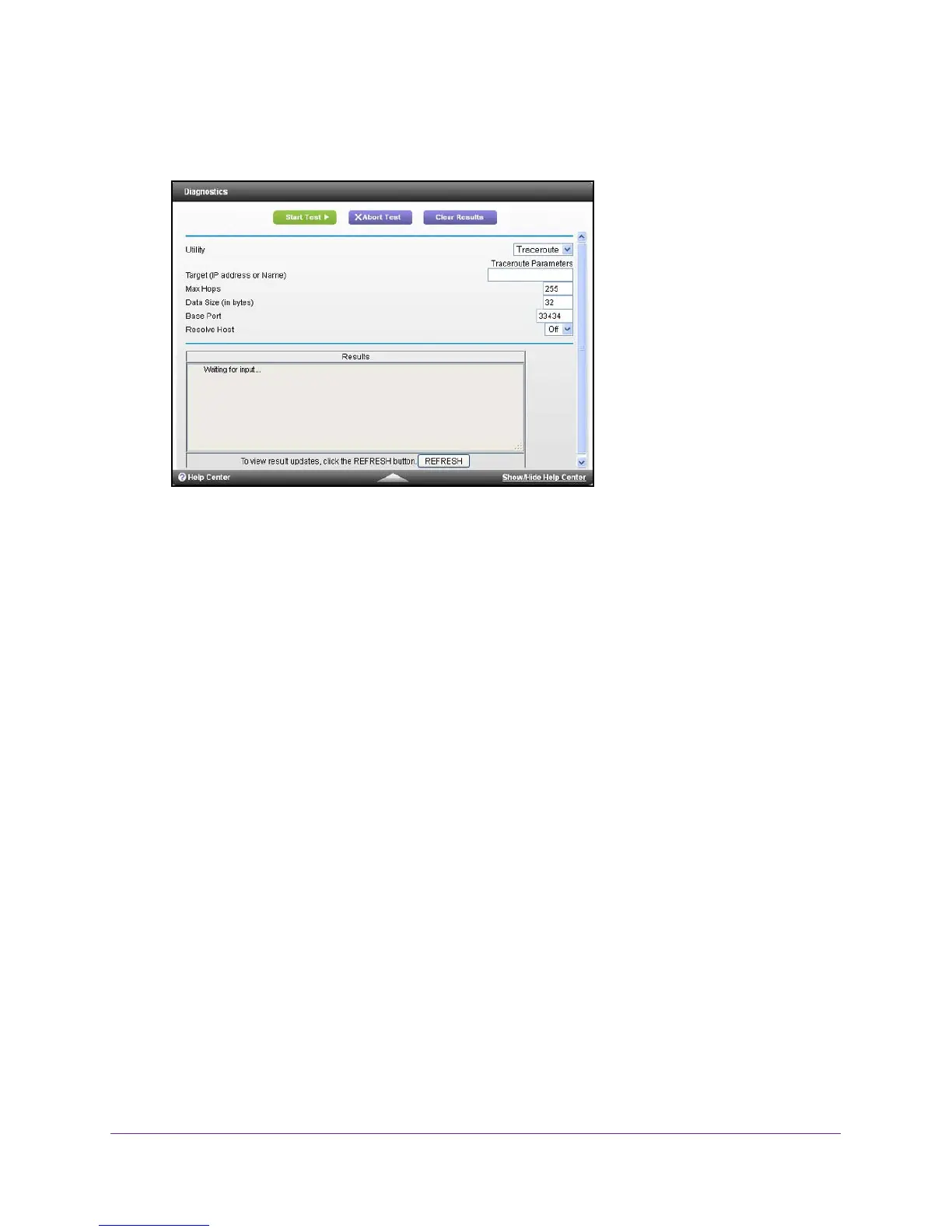

4. Select ADVANCED > Administration > Diagnostics.
5. In the Utility list, select T
raceroute.
6. Specify the following parameters for the traceroute utility:
• T
arget. The IP address or host name of the computer you are tracing.
• Max Hops.
The maximum number of hops to allow when tracing the route.
• Data Size.
The input the size (in bytes) of the packet.
• Base Port.
The port number to send the packet to.
• Resolve Host. Select On to resolve the host name to the IP address.
7. Click the Start T
est button.
The traceroute results display.
8. T
o clear the results from the display, click the Clear Results button.
View Wireless Access Points in Your Area
You can view wireless networks, or access points, in your area and to select and join a
wireless network.
To manage your wireless access point (AP):
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
