NETGEAR C3000 User Manual

Manage Your Network
76
N300 WiFi Cable Modem Router Model C3000
Manage the Modem Router Configuration File
The configuration settings of the modem router are stored within the modem router in a
configuration file. You can back up (save) this file to your computer, restore it, or reset it to the
factory default settings.
Back Up Settings
 To back up the modem router’s configuration settings:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.

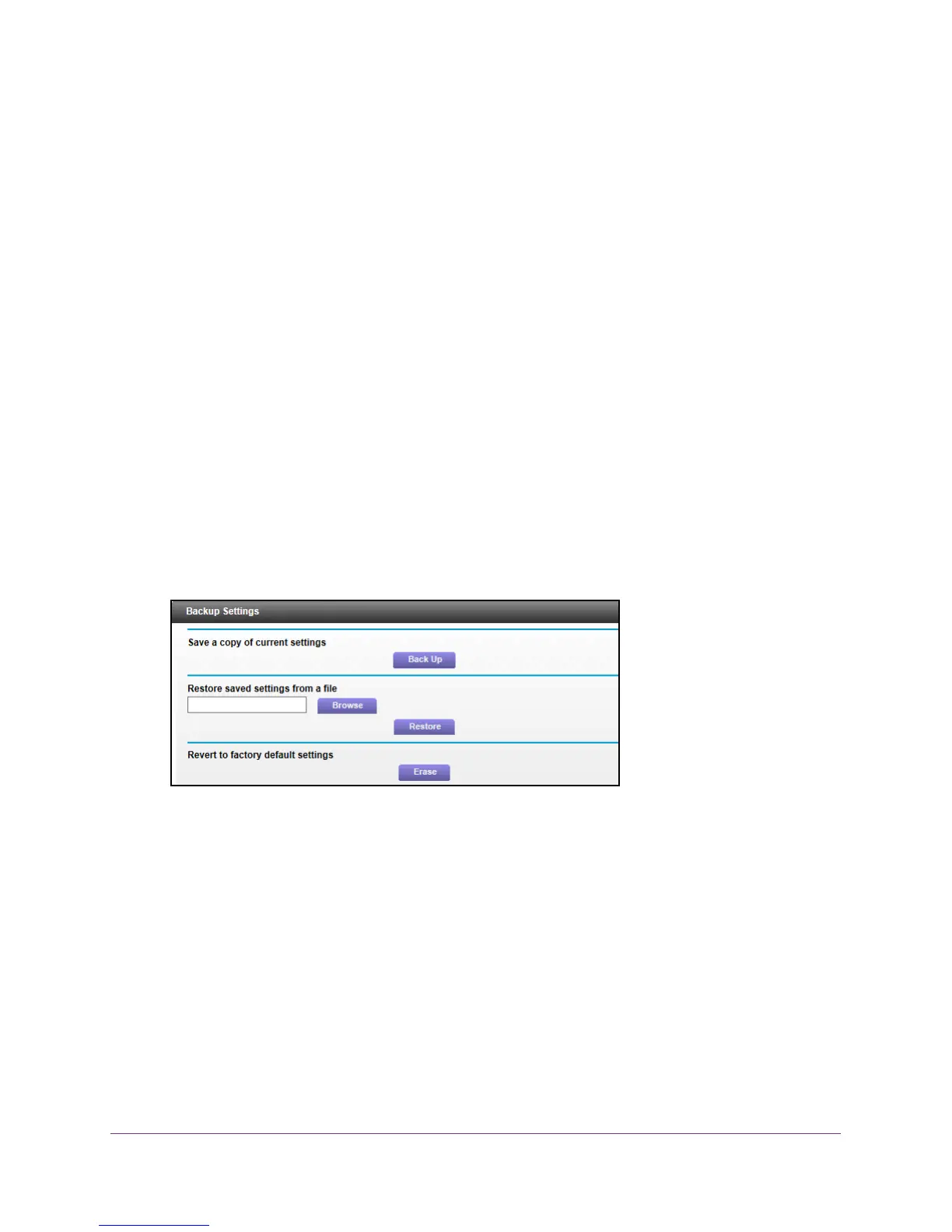

4. Select ADV
ANCED > Administration > Backup Settings.
5. Click the Back Up Settings button.
6. Choose a location to store the .cfg file that is on a computer on your network.
7. Click the Back Up button.
A copy of the current settings is saved.
Restore Configuration Settings
 To restore configuration settings that you backed up:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.

NETGEAR C3000 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	340 Mbit/s
Power source type	DC
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Security algorithms	WPA, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black

Weight and Dimensions

Depth	41 mm
Width	113 mm
Height	193 mm
Weight	352 g
