Specify Internet Port Settings
93
N300 WiFi Cable Modem Router Model C3000
• Any (the default) allows any computer on the Internet to use this service.
• Single address restricts the service to a particular computer
.
9. Select the service type, either TCP or UDP or TCP/UDP (both).
If you are not sure, select TCP/UDP.
10. In the T
riggering Port field, enter the number of the outbound traffic port that will open the
inbound ports.
11. Enter the inbound connection port information in the Connection T
ype, Starting Port, and
Ending Port fields.
12. Click the Apply button.
The service is now in the Portmap table. You must enable port triggering before the
modem router uses port triggering. See Specify When to Use Port Triggering on page 93.
Specify When to Use Port Triggering
To specify when to use port triggering:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Advanced Setup > Port Forwarding/Port Triggering.

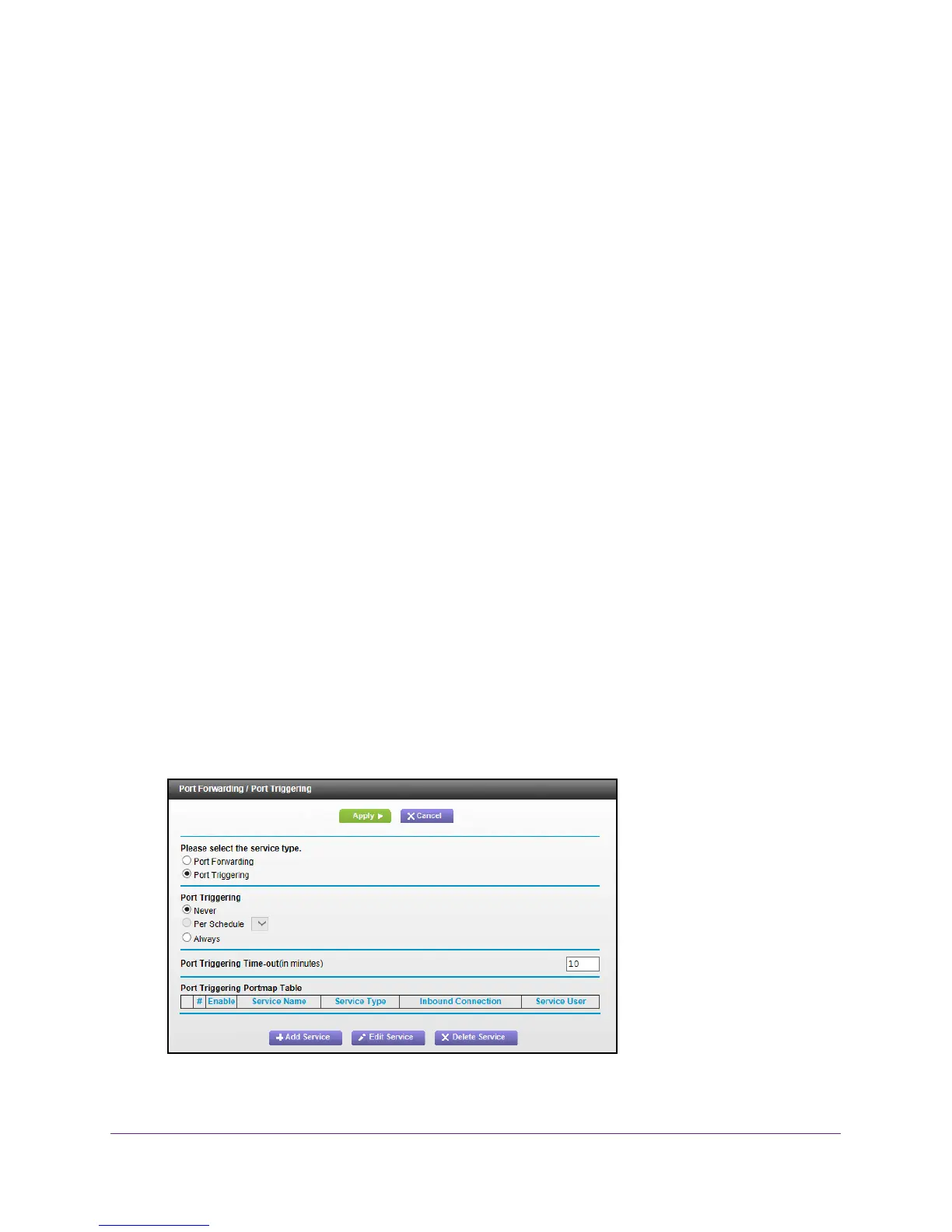

5. Select the Port T
riggering radio button.
6. Select a radio button to specify when you want to use port triggering:
