Orbi Satellite Model RBS20 Hardware Overview

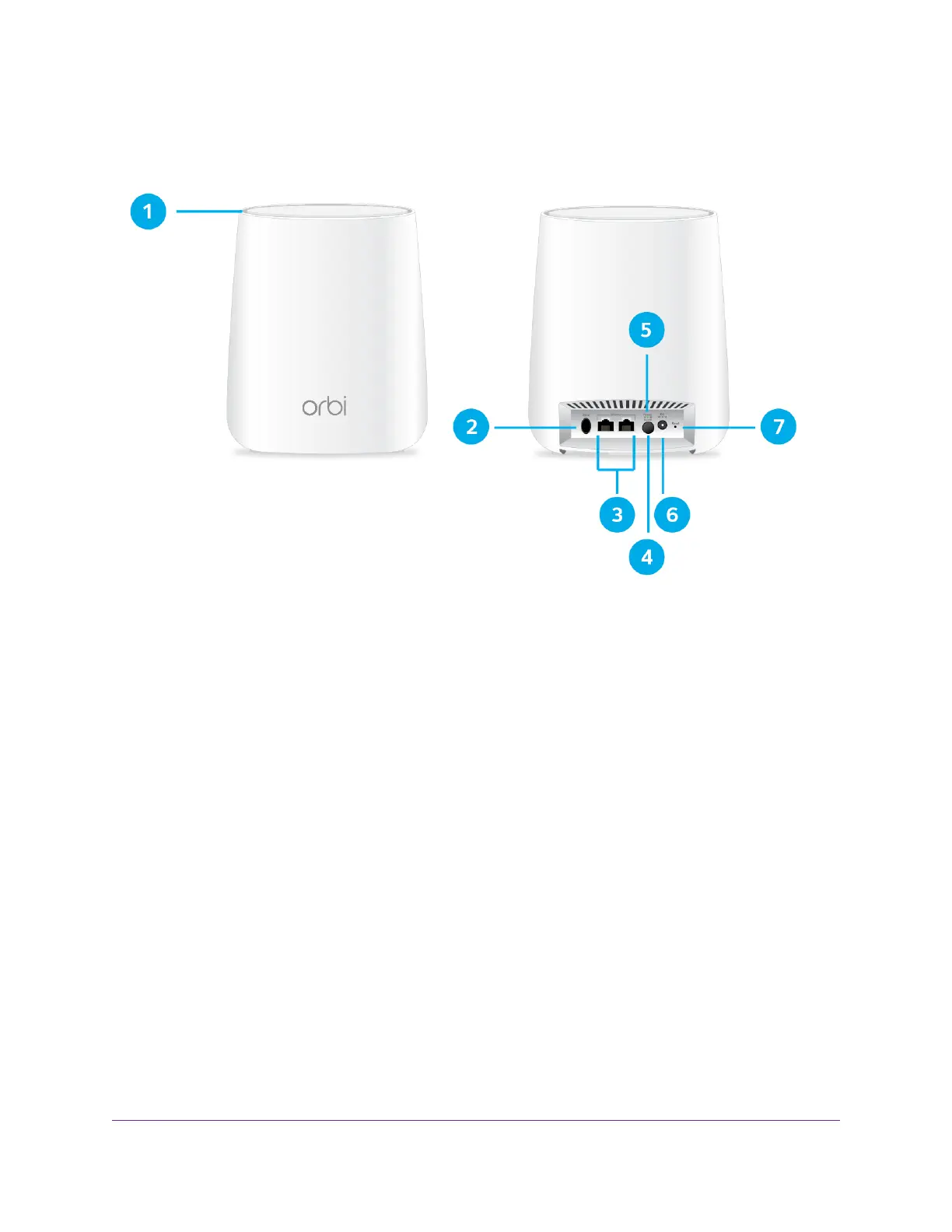

Figure 2. Orbi satellite model RBS20, front and back views
1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Ethernet ports
4. Power On/Off button
5. Power LED
6. DC power connector
7. Reset button
Orbi Cable Modem Router Model CBR40 LEDs
You can use the LEDs on the cable modem router to verify status and connections. The following table lists
and describes each LED on the top panel of the cable modem router.
