Wireless-N ADSL2+ Modem Router DGN2000 Reference Manual
5-8 Advanced Configuration
v1.0, July 2008
To edit or delete a reserved address entry:
1. Click the button next to the reserved address that you want to edit or delete.
2. Click Edit or Delete.
Configuring LAN TCP/IP Settings
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default user name
of admin and default password of password, or using whatever user name, password, and
LAN address you have chosen for the router.

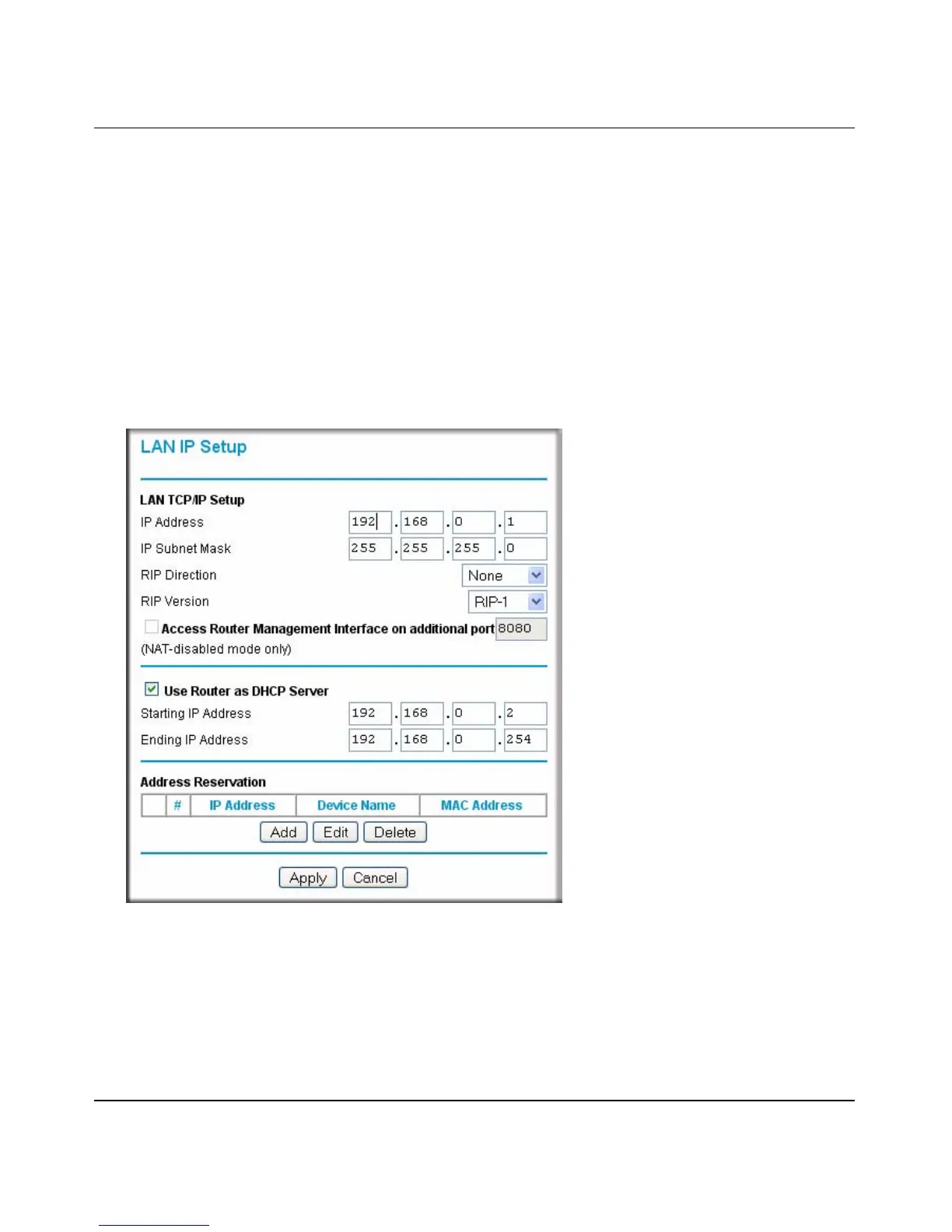

2. In the main menu, under Advanced, click LAN IP Setup to display the following screen.
3. Enter the TCP/IP, DHCP, or reserved IP settings.
4. Click Apply to save your changes.
Figure 5-3
