NETGEAR EX6200 User Manual

Overview
10
AC1200 WiFi Range Extender

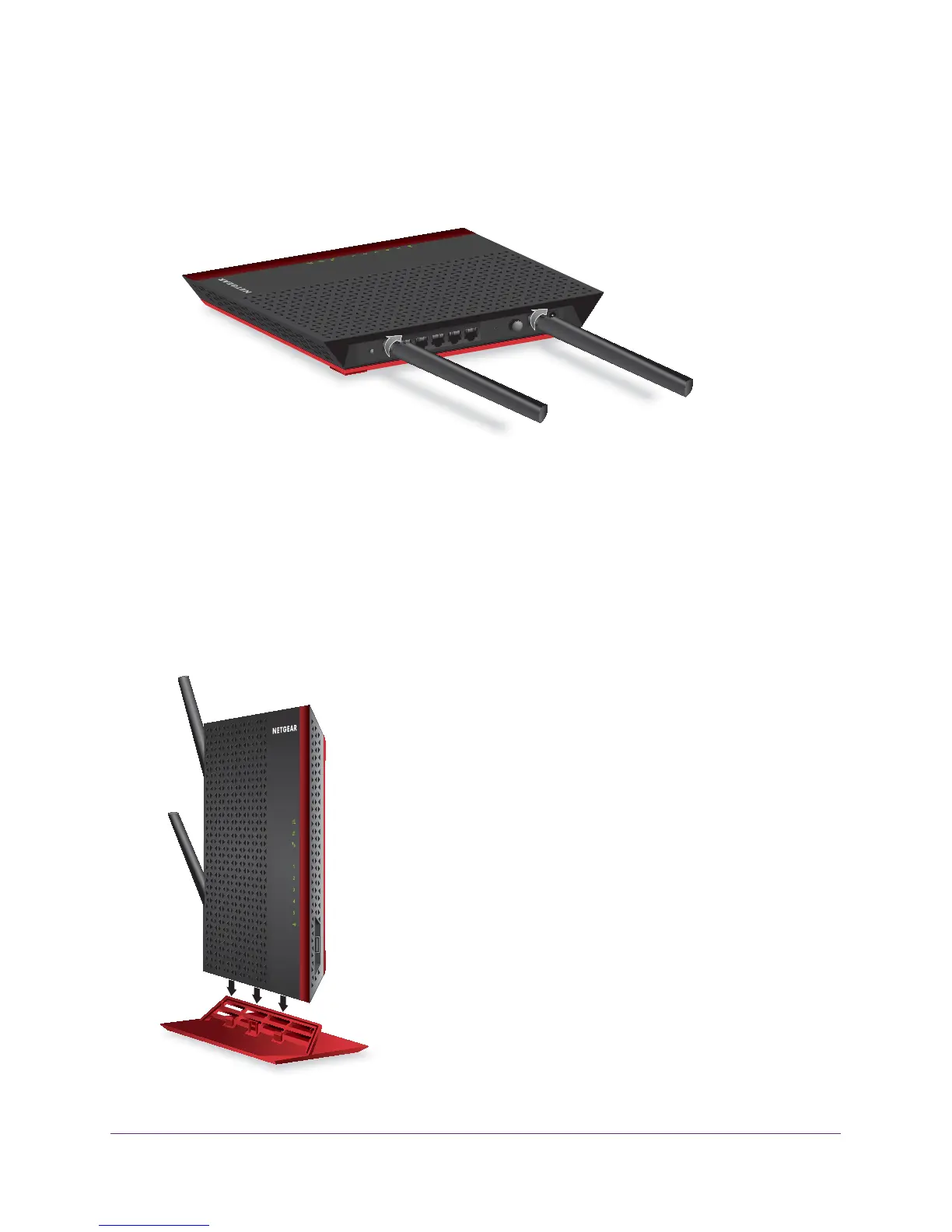

 To tighten an antenna:
1. Straighten the antenna.
2. Turn the antenna clockwise until tightened.
After you have tightened the antenna, you can change its position.
Attach the Stand
If you prefer to place the extender in upright (vertical) position, attach the stand that comes
with the extender.
Although the extender functions well in either horizontal or vertical position, a horizontal
position might give a better performance.
Figure 3. Attaching the stand

NETGEAR EX6200 Specifications

Ports & interfaces

ethernet ports	Five (5) 10/100/1000 Ethernet ports
usb port	USB 3.0 port
dual band antennas	Two (2) detachable external antennas

Weight and Dimensions

dimensions	9.92 x 6.85 x 1.22 in (252 x 174 x 31 mm)
weight	0.67 lb (302 g)
antenna gain	5 dBi
