NETGEAR GC110 User Manual

Configure Quality of Service
189
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports

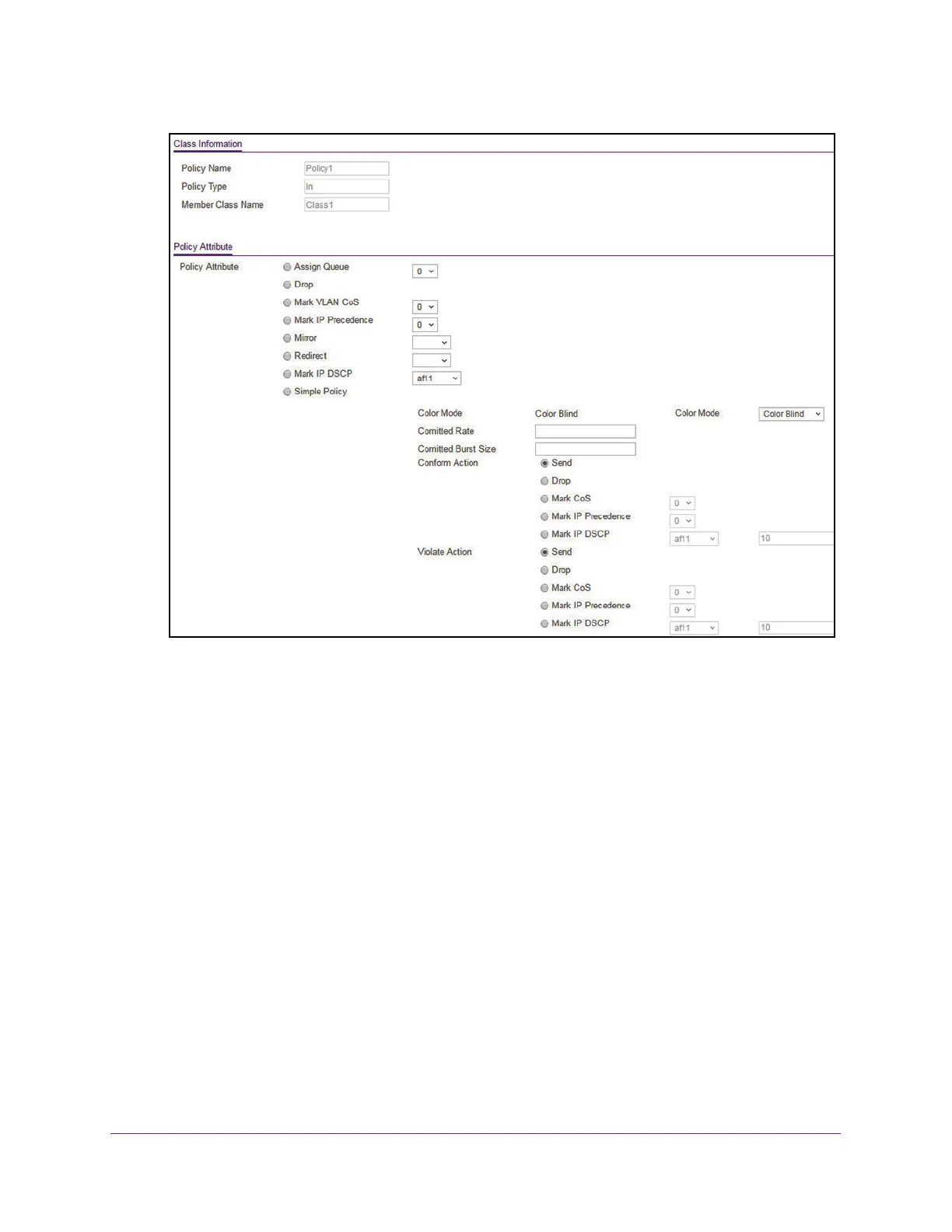

10. From the Assign Queue menu, select the queue to which packets of this policy class must
be assigned.
This is an integer value in the range 0 to 7.
11. Configure the policy attributes:
• Drop. Select this radio button to require each inbound packet to be dropped.
• Mark VLAN CoS. Select this radio button to specify the VLAN priority
, which you must
select from the menu. The VLAN priority is expressed as an integer value in the range
from 0 to 7.
• Mark IP Precedence. Select this radio button to require packets to be marked with an
IP precedence value before being forwarded.
You must select an IP precedence
value from 0 to 7 from the menu.
• Mirror. Select this radio button to require packets to be mirrored to an interface or
LAG, one of which you must select from the menu.
• Redirect. Select this radio button to require packets to be redirected to an interface or
LAG, one of which you must select from the menu.
• Mark IP DSCP. Select this radio button to require packet to be marked with an IP
DSCP keyword code, which you must select from the menu.
The menu includes
Other as a selection, which lets you enter an IP DSCP value from 0 to 63. The DSCP
value is defined as the high-order 6 bits of the Service Type octet in the IP header.

NETGEAR GC110 Specifications

General

Switch type	Managed
Quality of Service (QoS) support	Yes
Console port	RJ-45
Power connector	DC-in jack
SFP module slots quantity	2
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Product color	Gray
10G support	No
MAC address table	- entries
