GS700TS Smart Switch Software Administration Manual
5-9 Configuring QoS
v1.0, June 2009
4. Click APPLY to update the device.
DSCP to Queue Mapping
The DSCP To Queue Mapping screen contains fields for mapping DSCP values to traffic queues
for various PHBs (Per-Hop Behaviors). These include the CS (Class Selector), AF (Assured
Forwarding) and EF (Expedited Forwarding). For example, a packet with a DSCP tag value of 1
can be assigned to the High queue.
To map DSCP values to queues:

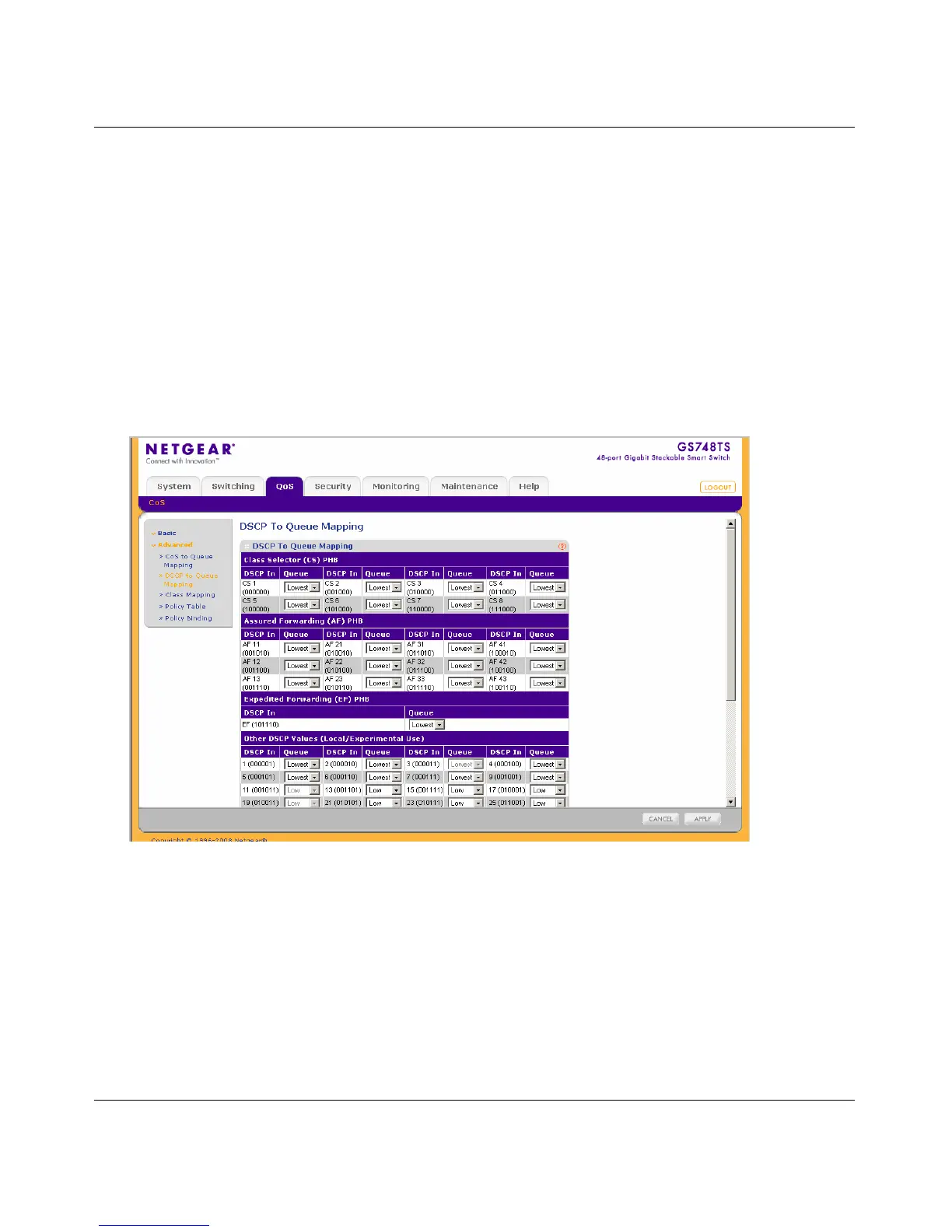

1. Click QoS > CoS> Advanced > DSCP To Queue Mapping. The DSCP To Queue Mapping
screen displays:
The DSCP To Queue Mapping screen contains the following fields:
DSCP to Queue Mapping
• DSCP In – Displays the incoming packet’s DSCP value. The following DSCP In values
are predefined: 3, 11, 19, 27, 35, 43, 51, 59.
Figure 5-6
