Network Settings
27
ProSAFE 8-Port and 16-Port Gigabit Click Switch
7. Select the LAG ID check box.
8. In the LAG ID menu, select Enable.
9. Select check box 1.
10. Enter the port numbers for LAG 1.
11. Click the Apply button.
Your settings are saved.
12. Select check box 2.
13. Enter the port numbers for LAG 2.
14. Click the Apply button.
Your settings are saved.
Use the ProSAFE Utility to Specify LAG Membership
To specify LAG membership:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection.
2. Double-click the ProSAFE Plus Utility icon.
The configuration home screen displays a list of Plus switches that it discovers on the
local network.
3. Select a switch.
If you do not see the switch, click the REFRESH button.
4. Click the APPL
Y button.
You are asked to enter the password for the switch.
5. Enter the switch’
s password in the password field.
The switch’s default password is password.
The Switch Status screen displays.

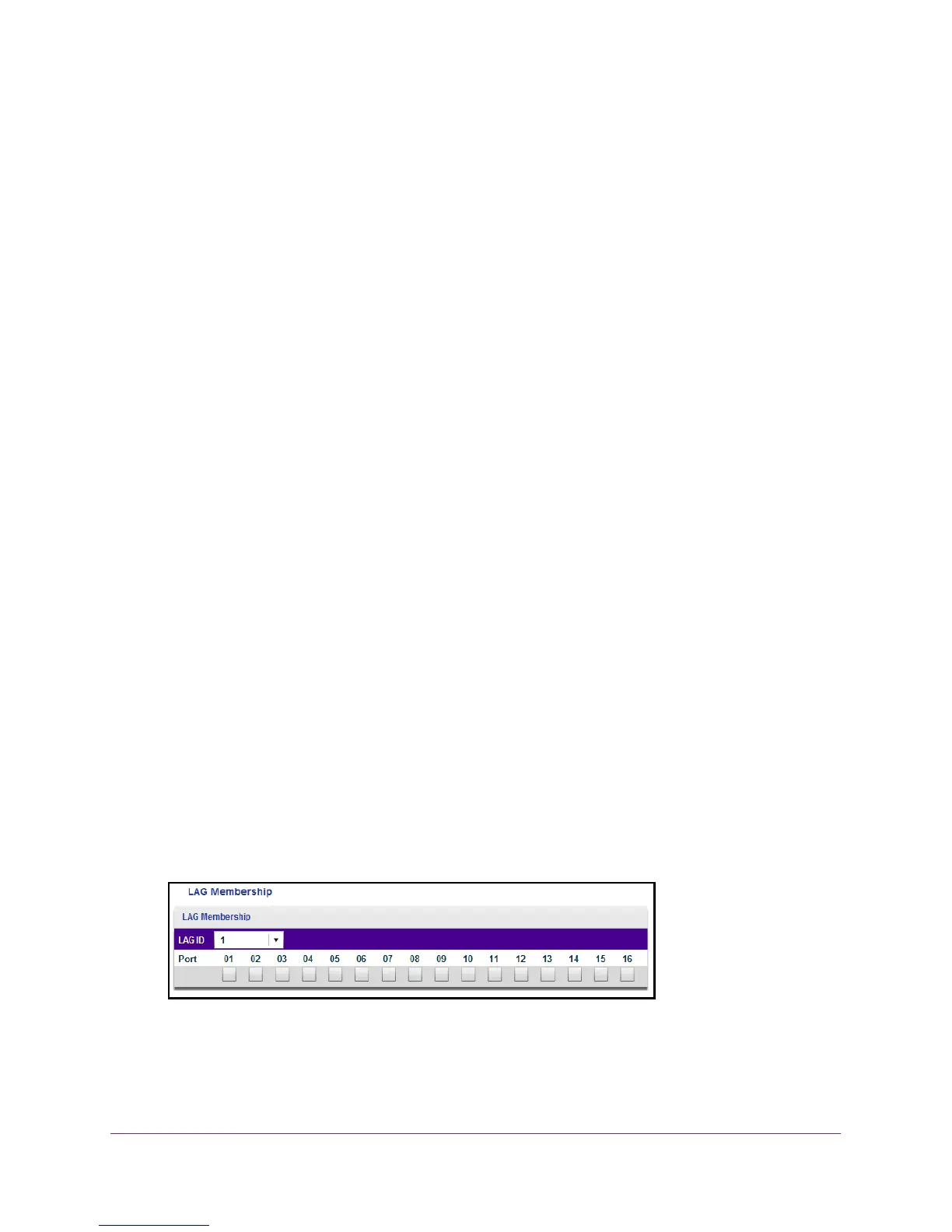

6. Select System > LAG > LAG Membership.
7. In the LAG ID menu, select 1.
8. Select the check box beneath each port for LAG ID 1.
9. Click the APPL
Y button.
