Manage the Switch
66
ProSAFE 8-Port and 16-Port Gigabit Click Switch
The Switch Information screen displays.
6. Select System > Maintenance > Factory Default.
The Factory Default screen displays.
7. Select the check box.
8. Click the Apply button.
9. The switch returns to its factory settings.
Enable Port Mirroring
Port mirroring allows a switch port to see data on another port.
Use the ProSAFE Utility to Enable Port Mirroring
To enable port mirroring:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection.
2. Double-click the ProSAFE Plus Utility icon.
The configuration home screen displays a list of Plus switches that it discovers on the
local network.
3. Select a switch.
If you do not see the switch, click the REFRESH button.
4. Click the APPL
Y button.
You are asked to enter the password for the switch.
5. Enter the switch’
s password in the password field.
The switch’s default password is password.
The Switch Status screen displays.

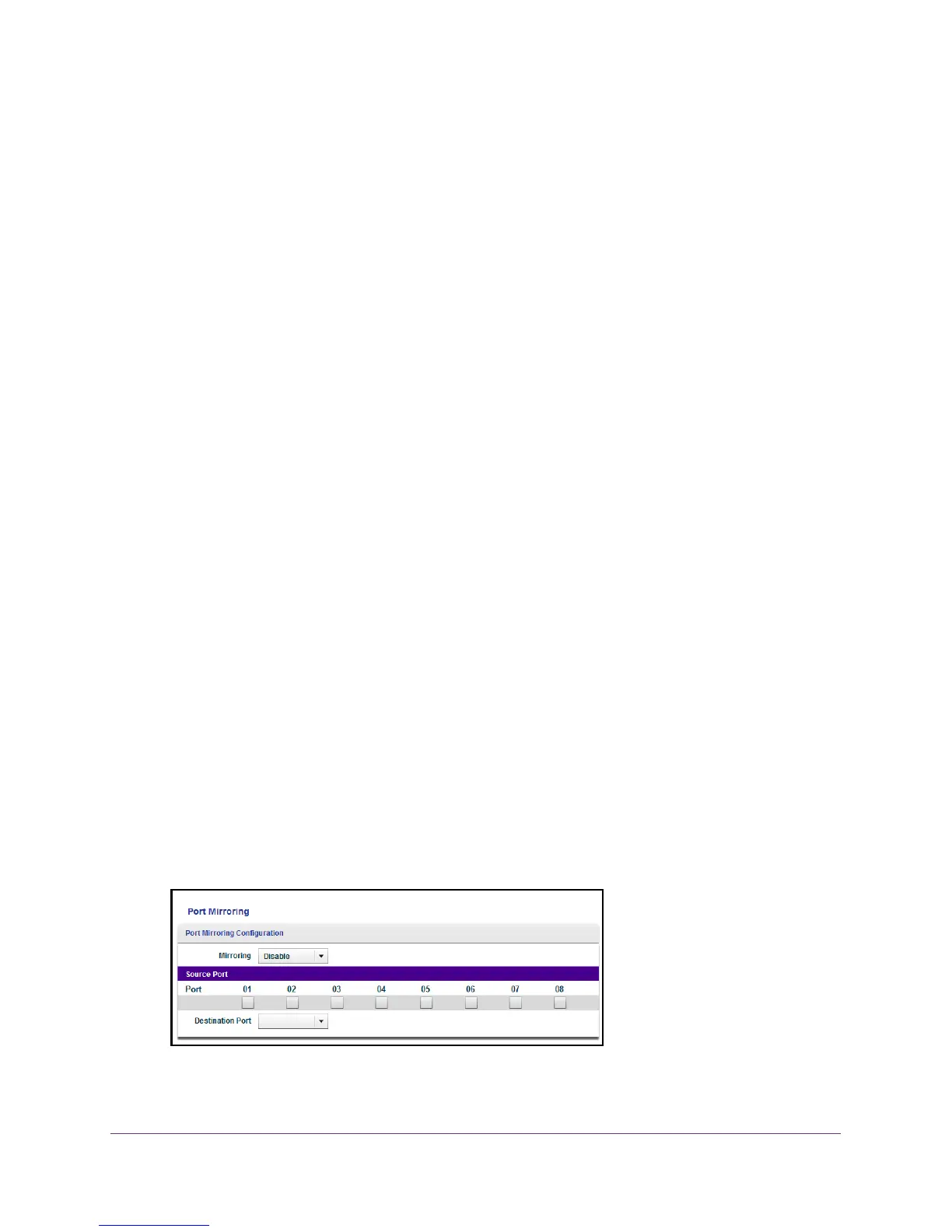

6. Select System > Monitoring > Mirroring.
7. In the Mirroring menu, select Enable.
