Use VLANS for Traffic Segmentation
51
ProSAFE 8-Port and 16-Port Gigabit Click Switch
2. Use an Ethernet cable to connect your computer to an Ethernet port on the switch.
3. Launch a web browser
.
4. In the address field of the browser
, enter the IP address of the switch.
You can find the IP address of the switch by using the ProSAFE Plus utility or get it from
the DHCP server
. If the switch cannot get an IP address from a DHCP server, enter
192.168.0.239.
You are asked to enter the password for the switch.
5. Enter the switch’s password in the password field.
The switch’s default password is password.
The Switch Information screen displays.

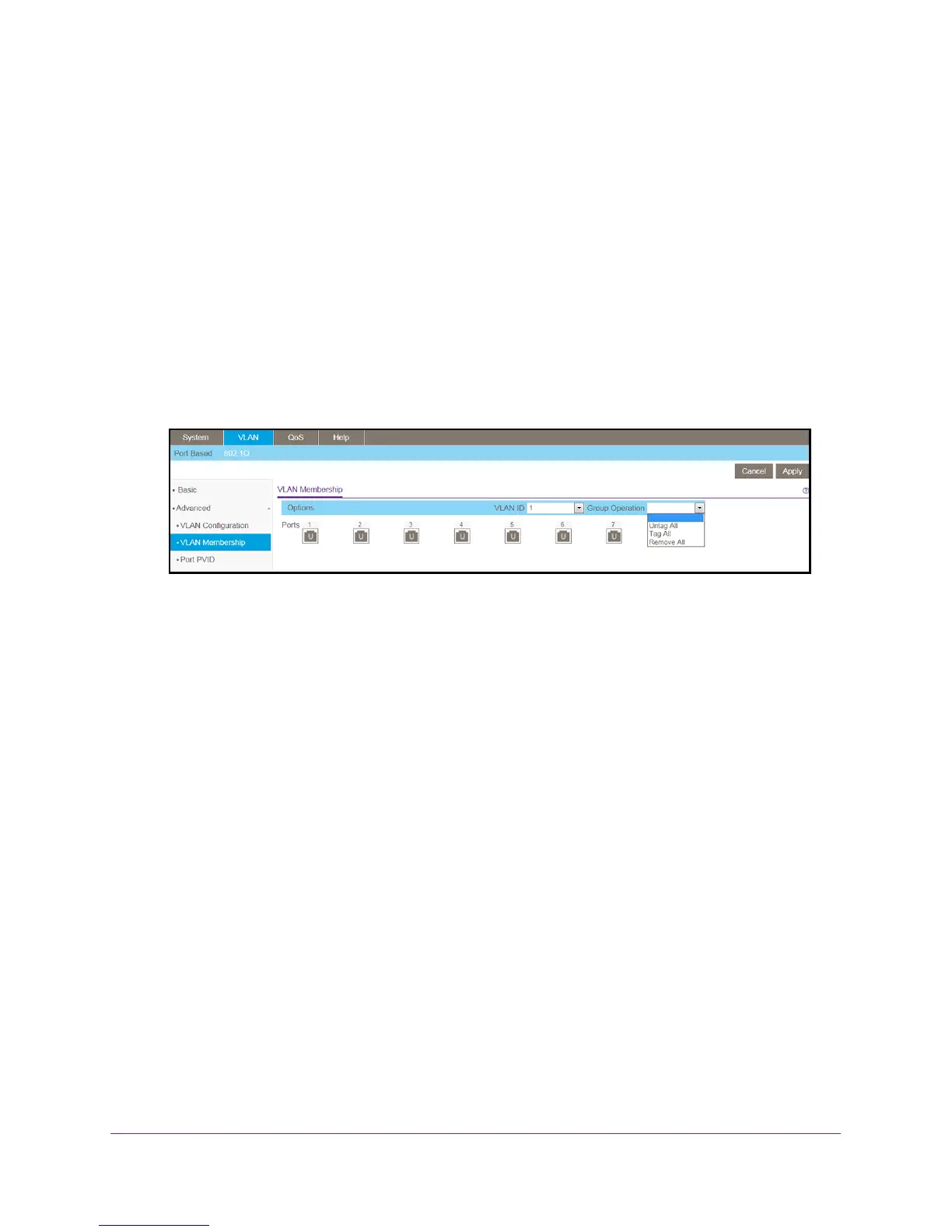

6. Select VLAN > 802.1Q >
Advanced > VLAN Membership.
7. Select the ports.
8. Select T
agging Control or UnTag Tagging Control.
9. Click the Apply button
Your settings are saved.
