- 2.4 GHz cordless phone
- 5 GHz cordless phone
• Place the router away from large metal surfaces, large glass surfaces, insulated walls, and items such
as these:
- Solid metal door
- Aluminum studs
- Fish tanks
- Mirrors
- Brick
- Concrete
If you are using adjacent access points, use different radio frequency channels to reduce interference.
Cable Your Router
The following image shows how to cable your router:

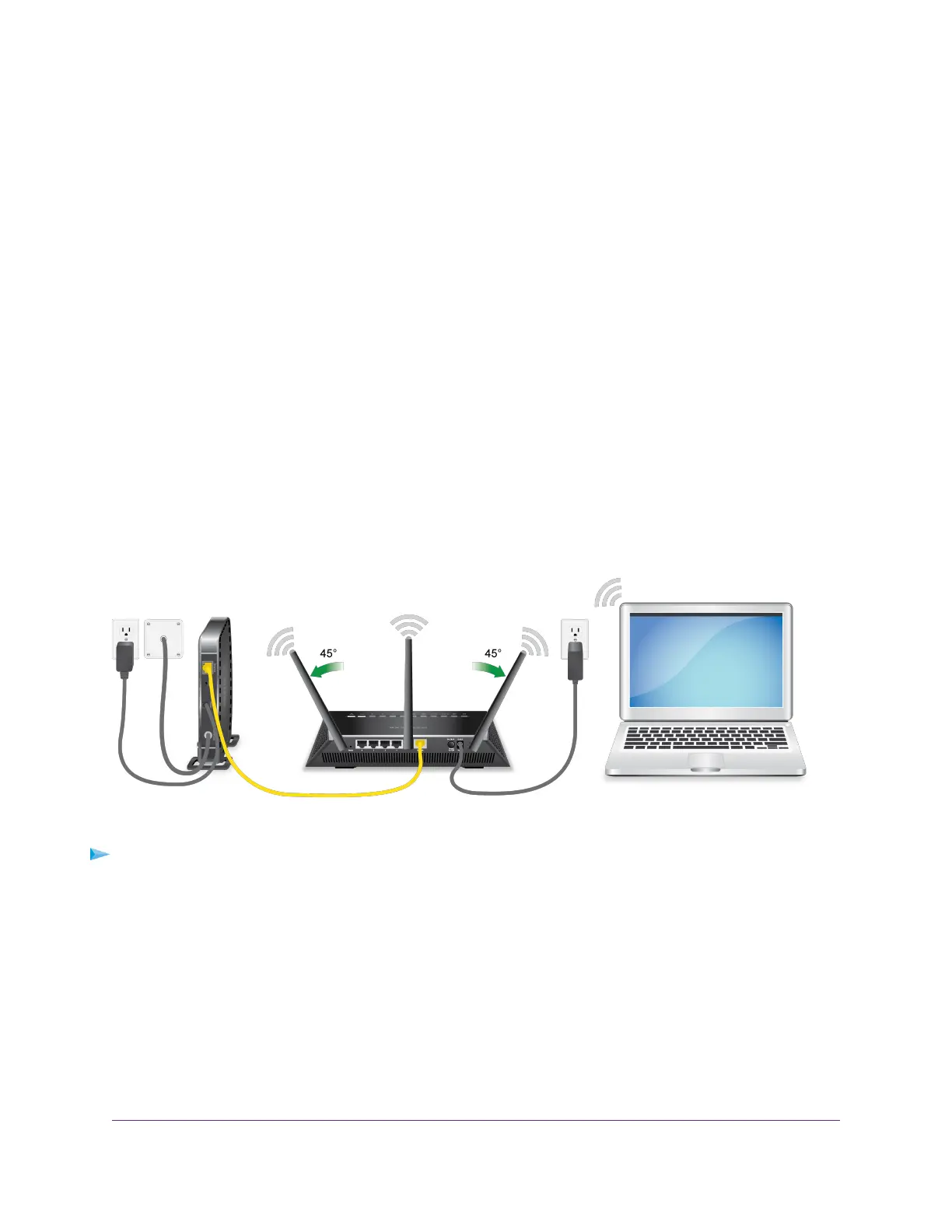

Figure 6. Router cabling
To cable your router:
1. Unplug your modem’s power, leaving the modem connected to the wall jack for your Internet service.
If your modem uses a battery backup, remove the battery.
2. Plug in and turn on your modem.
If your modem uses a battery backup, put the battery back in.
3. Connect your modem to the Internet port of your router with the yellow Ethernet cable that came with
your router.
4. Connect the power adapter to your router and plug the power adapter into an outlet.
5. Press the Power On/Off button on the back panel of the router.
Hardware Overview of the Router
15
Nighthawk AC1900 Smart WiFi Router Model R6900P
