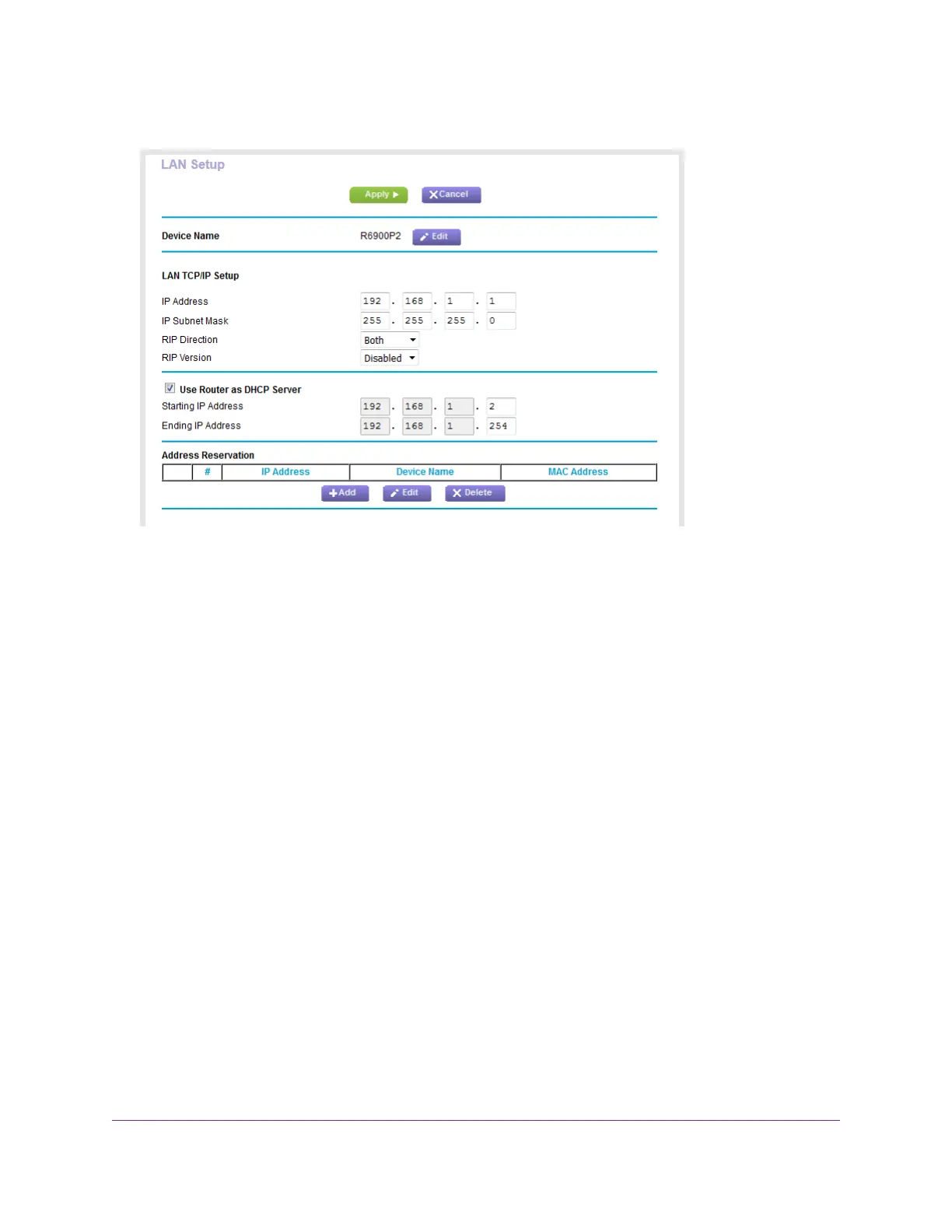

4. Select ADVANCED > Setup > LAN Setup.
5. Make sure that the Use Router as DHCP Server check box is selected.
This check box is selected by default.
6. Specify the range of IP addresses that the router assigns:
• In the Starting IP Address field, enter the lowest number in the range.
This IP address must be in the same subnet as the router. By default, the starting IP address is
192.168.1.2.
• In the Ending IP Address field, enter the number at the end of the range of IP addresses.
This IP address must be in the same subnet as the router. By default, the ending IP address is
192.168.1.254.
7. Click the Apply button.
Your settings are saved.
Manage Reserved LAN IP Addresses
When you specify a reserved IP address for a computer on the LAN, that computer always receives the
same IP address each time it accesses the router’s DHCP server.
Manage the WAN and LAN Network Settings
124
Nighthawk AC1900 Smart WiFi Router Model R6900P
