NETGEAR R6900P User Manual

•
A green flag indicates that the Internet connection is fine and no problems exist. For a WiFi
network, the network is enabled and secured.
•
A red X indicates that configuration problems exist for the Internet connection or the connection
is down. For a WiFi network, the network is disabled or down.
•
An amber exclamation mark indicates that the Internet port is configured but cannot get an Internet
connection (for example, because the cable is disconnected), that a WiFi network is enabled but
unprotected, or that another situation that requires your attention occurred.
Display Internet Port Statistics
To display Internet port statistics:
1. Launch a web browser from a computer or mobile device that is connected to the network.
2. Enter http://www.routerlogin.net.
A login window opens.
3. Enter the router user name and password.
The user name is admin.The default password is password.The user name and password are
case-sensitive.
The BASIC Home page displays.
4. Click the ADVANCED tab.
The ADVANCED Home page displays.

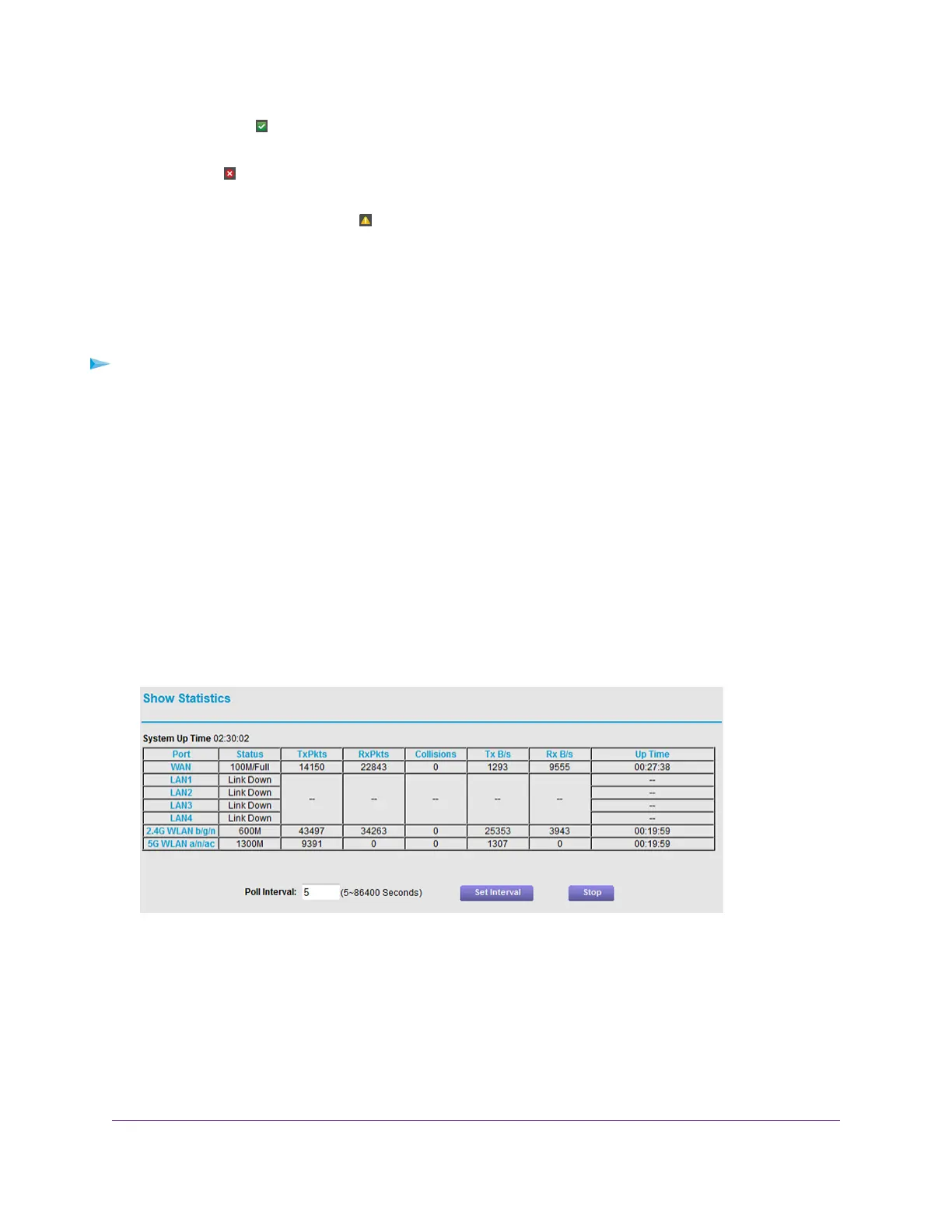

5. In the Internet Port pane, click the Show Statistics button.
The following information displays:
• System Up Time. The time elapsed since the router was last restarted.
• Port.The statistics for the WAN (Internet), LAN (Ethernet), and WLAN (WiFi) ports. For each port,
the pop-up window displays the following information:
- Status. The link status of the port.
- TxPkts. The number of packets transmitted on the port since reset or manual clear.
Manage the Router and Monitor the Traffic
164
Nighthawk AC1900 Smart WiFi Router Model R6900P
