To specify the storage device access settings:

1. Launch a web browser from a computer or mobile device that is connected to the network.

2. Enter http://www.routerlogin.net.

A login window opens.

3. Enter the router user name and password.

The user name is admin.The default password is password.The user name and password are

case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > USB Functions > ReadySHARE Storage.

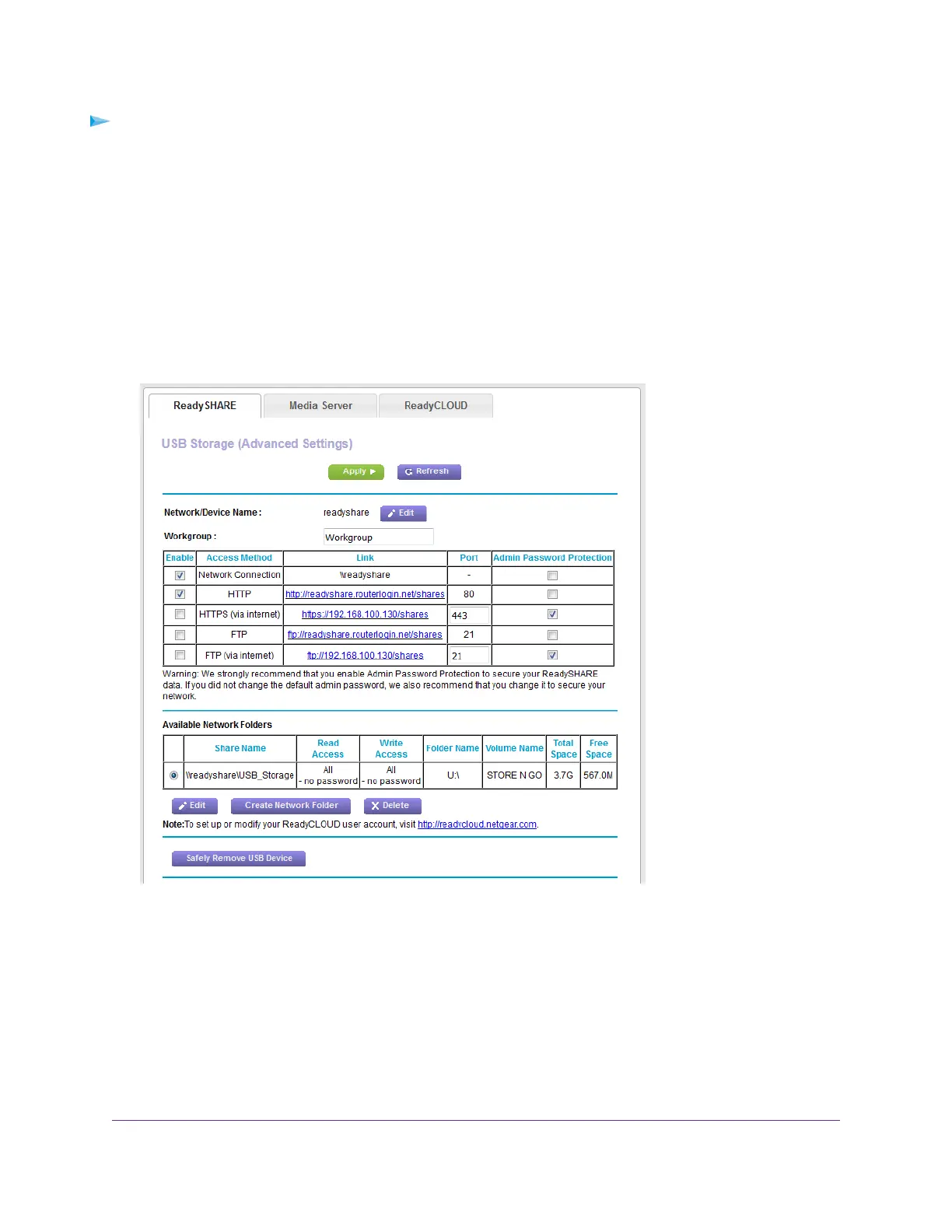

The previous figure shows one USB device attached to the router.

5. To specify a name that is used to access the USB device or devices that are connected to the router,

do the following:

a. Click the upper Edit button.

The Device Name page displays.

b. Type a new name in the Device Name field.

c. Click the Apply button.

A pop-up window displays.

Share a Storage Device Attached to the Router

Nighthawk AC1900 Smart WiFi Router Model R6900P
