Port 2. Connect this port to your main streaming device.
-
Port 1. Connect this port to your main gaming device.
We recommend these port connections for the one-touch performance presets (see
Apply a Performance Preset Mode on page 29). However, you can save custom
performance presets and use different port connections (see Manage Custom
Performance Preset Modes on page 32).
•
DC power connector. One 12V, 1.0 A DC connector for the power adapter.
Note: The RESET button is located on the bottom panel of the switch. Press the
RESET button for five seconds to reset the switch to factory default settings. For
more information, see Return the Switch to Its Factory Default Settings on page 86.

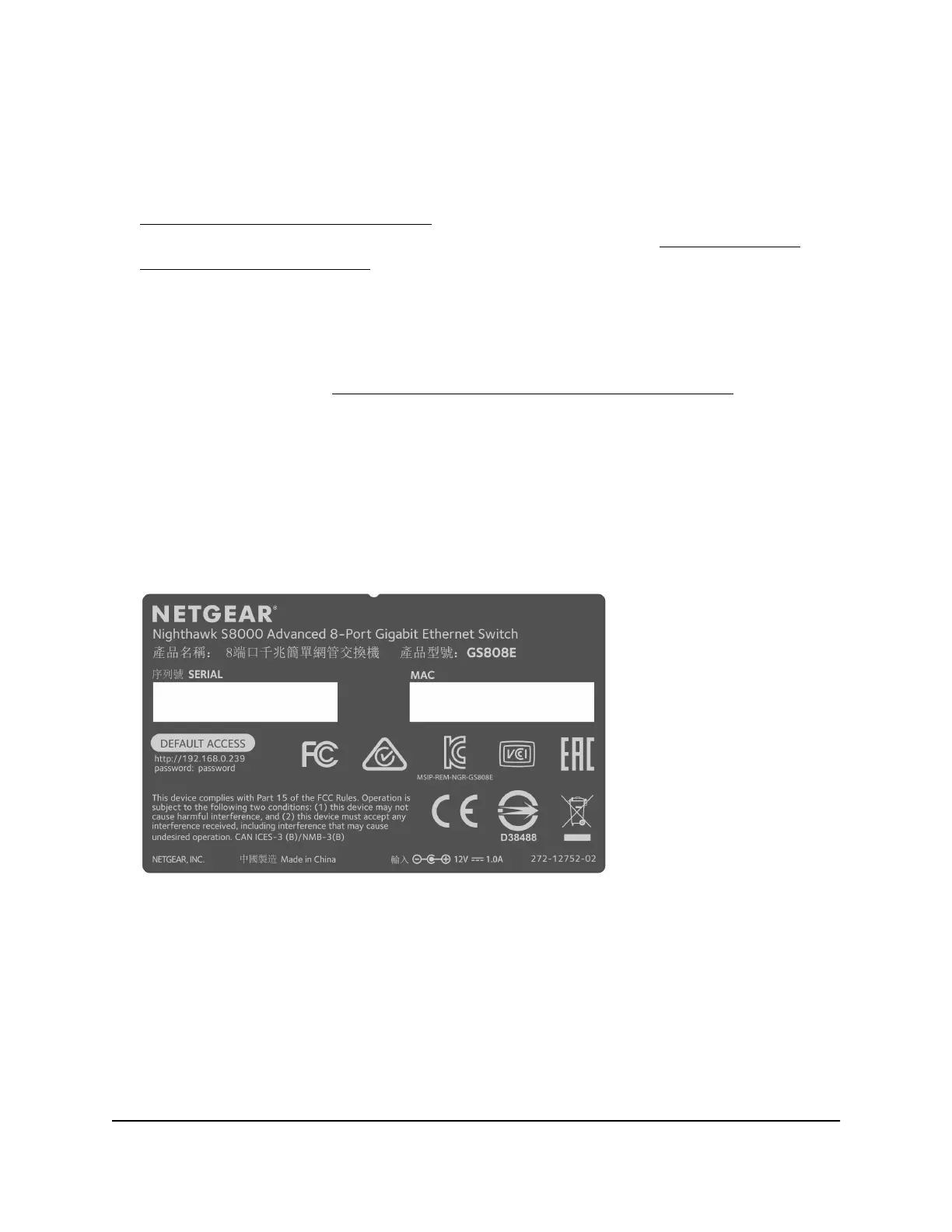

Switch Label
The switch label on the bottom panel of the switch shows the serial number, MAC
address, and default login information of the switch.
Figure 4. Switch label
Safety Instructions and Warnings
Use the following safety guidelines to ensure your own personal safety and to help
protect your system from potential damage.
User Manual11Hardware Overview of the
Switch
Nighthawk S8000 Gaming & Streaming Advanced 8-Port Gigabit Ethernet Switch (GS808E)
