NETGEAR WAC720

Advanced Configuration
76
ProSAFE Dual-Band Wireless AC Access Points WAC720 and WAC730
Note: Select the Untagged VLAN check box only if the hubs and switches
on your LAN support the 802.1Q VLAN protocol. Likewise, change the
untagged VLAN value only if the hubs and switches on your LAN
support the 802.1Q VLAN protocol.
• Tagged VLAN. When you clear the Untagged VLAN check box, the wireless access
point tags all frames that are sent from its Ethernet interface. Only incoming frames that
are tagged with known VLAN IDs are accepted.
• Management VLAN. The management VLAN can be active only when the wireless
access point functions as a point-to-point or point-to-multipoint bridge (see Configure
Wireless Bridging on page 91). The management VLAN is used for managing traffic
(Telnet, SNMP, and HTTP) to and from the wireless access point.
Frames belonging to the management VLAN are not given any 802.1Q header when they
are sent over the trunk. If a port is in a single VLAN, it can be untagged. However, if the
port is a member of multiple VLANs, it must be tagged.
 To configure STP and VLANs:

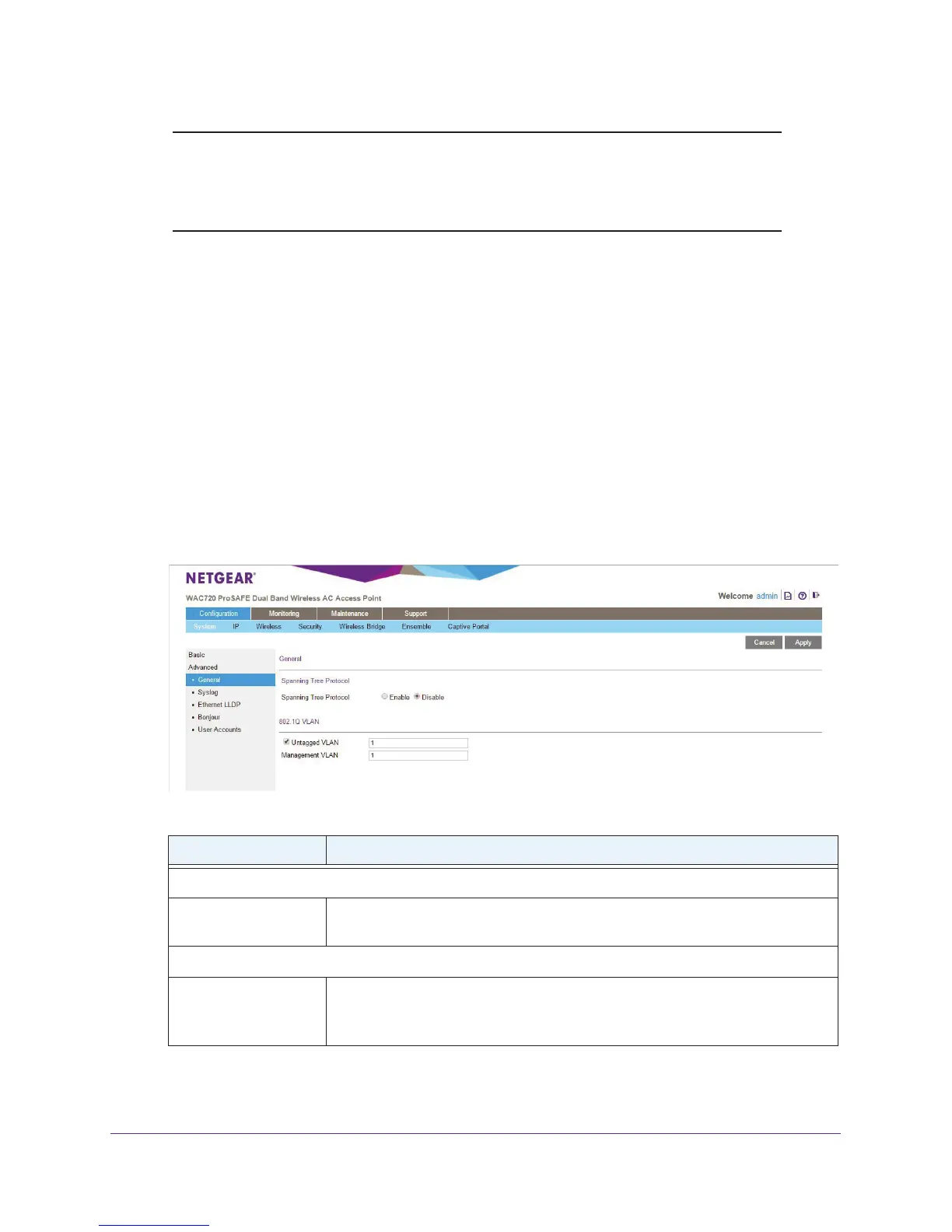

1. Select Configuring > System > Advanced > General.
2. Specify the settings as explained in the following table:
Setting Description
Spanning Tree Protocol
Spanning Tree Protocol Select the Enable radio button to enable STP to prevent path redundancy. By
default, the Disable radio button is selected.
802.1Q VLAN
Untagged VLAN Select the Untagged VLAN check box to configure one VLAN as an untagged
VLAN. By default, the Untagged VLAN check box is selected.
Specify a VLAN ID. The default VLAN ID is 1.
