Getting Started
7
ProSafe Wireless-N Access Point WNAP210
Hardware Description
This section describes the front and rear hardware functions of the access point.
Front Panel
The front hardware functions are described in the following figure and table.
Power Test Ethernet WLAN
LAN

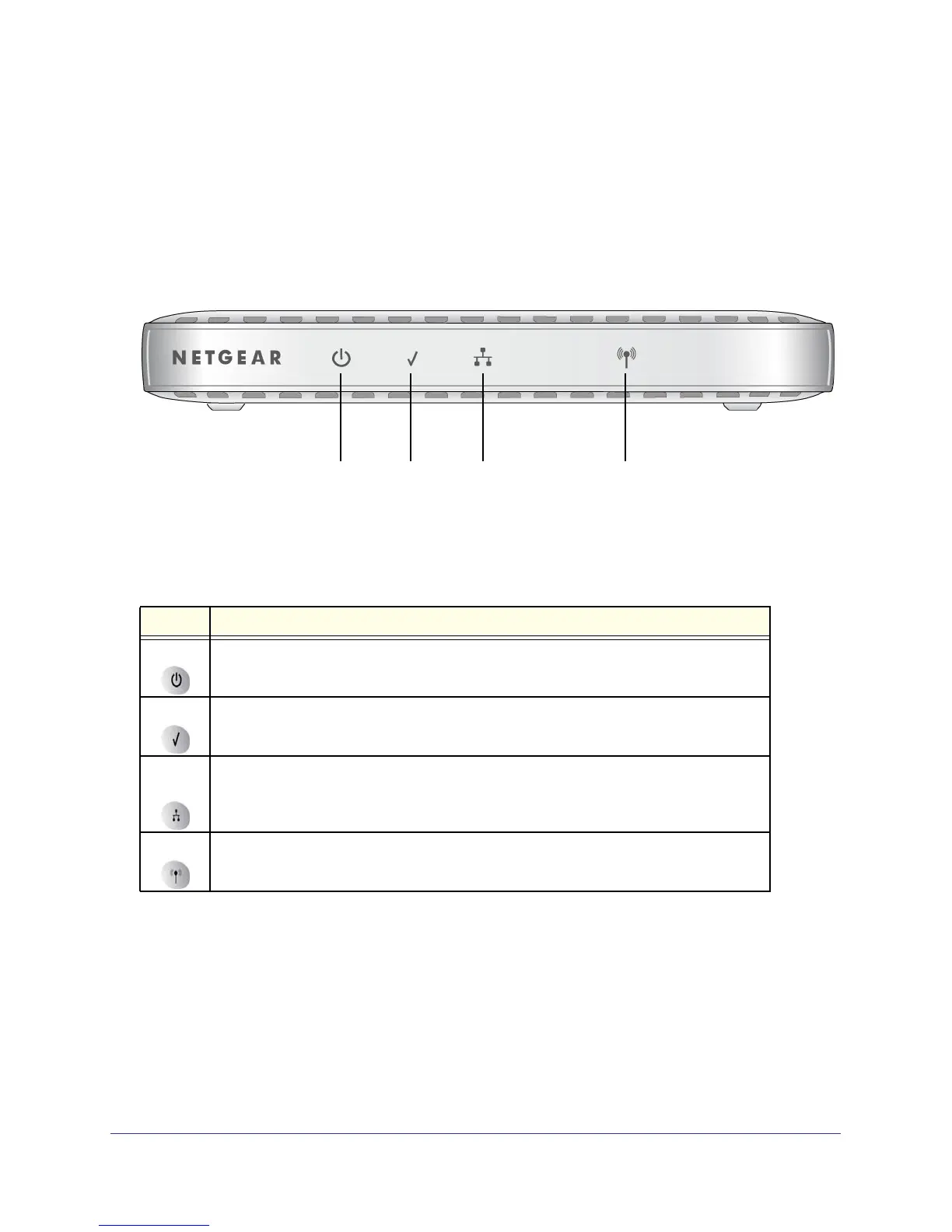

Figure 1. Front view
The following table explains the LEDs:
Table 1. Front panel LEDs
LED Description
Power
• Off. Power is off.
• On. Power is on.
Test Blinking. The device is running a self-test or is loading software. This LED might blink for
a minute before going off. If it continues to blink, it indicates a system fault.
Ethernet
LAN
• Off. A 10 Mbps link or no link is detected.
• Amber. A 10/100 Mbps link is detected.
• Green. A 1000 Mbps link is detected.
WLAN Blinking (blue). Wireless activity has been detected.
