Rear Panel
The following figure shows the rear panel connectors and buttons.

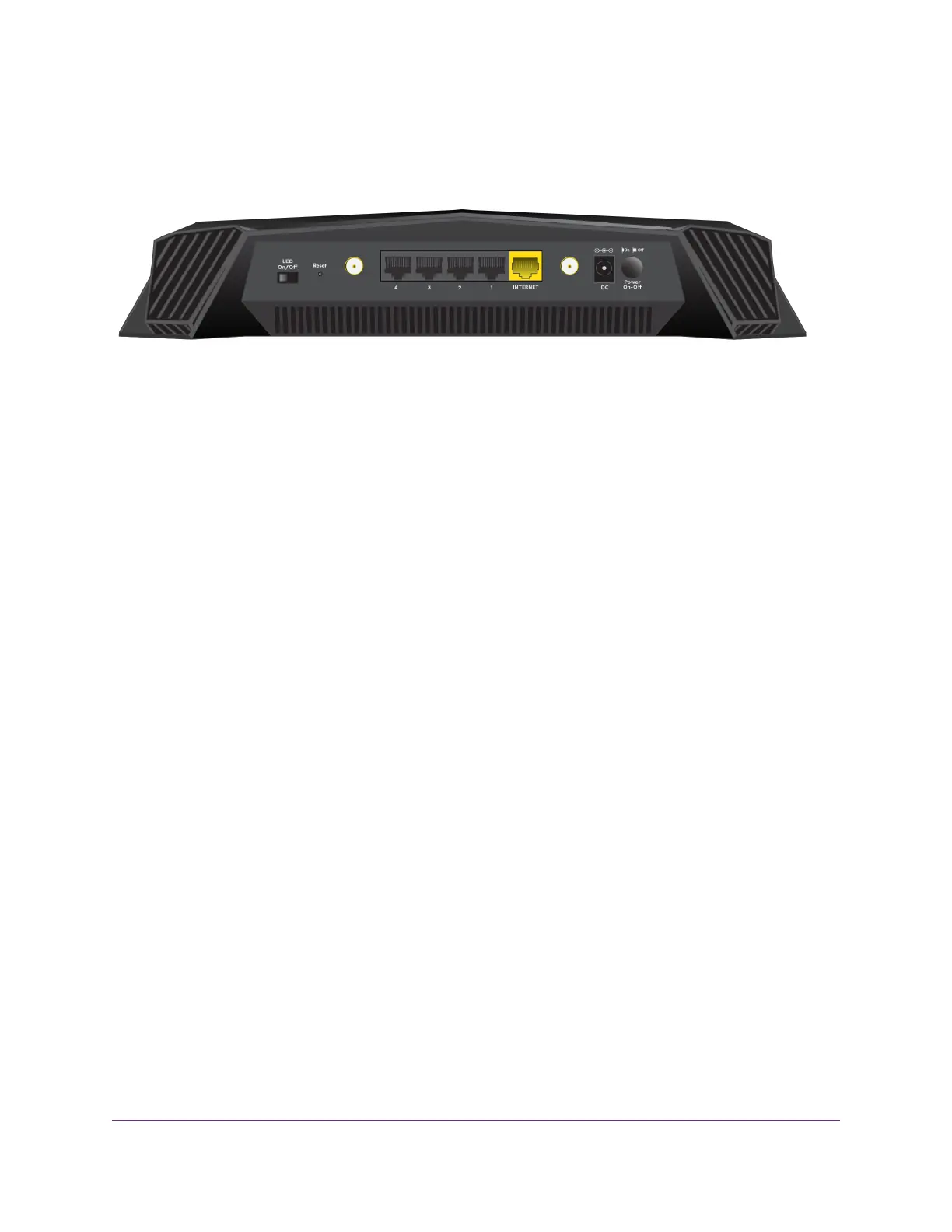

Figure 3. Rear panel
Viewed from left to right, the rear panel contains the following components:
• LED On/Off switch. If this switch is in the Off position, all the router’s LEDs, including the LEDs on the
four active antennas, but not the Power LED, are turned off.
• Reset button. Pressing the Reset button resets the router.
If you press the Reset button for up to 30 seconds or until the Power LED starts blinking amber, the
router returns to its factory settings. For information about the factory settings, see Factory Settings on
page 182.
• One antenna connector.
• Ethernet ports. Four Gigabit Ethernet RJ-45 LAN ports named Eth4 to Eth1. Use these ports to connect
the router to LAN devices.
• Internet port. One yellow Gigabit Ethernet RJ-45 WAN port to connect the router to an Internet modem
such as a cable modem or DLS modem.
• One antenna connector.
• DC power connector. Connect the power adapter that came in the product package to the DC power
connector.
• Power On/Off button. Press the Power On/Off button to provide power to the router.
