MT 48 | 20
EQ

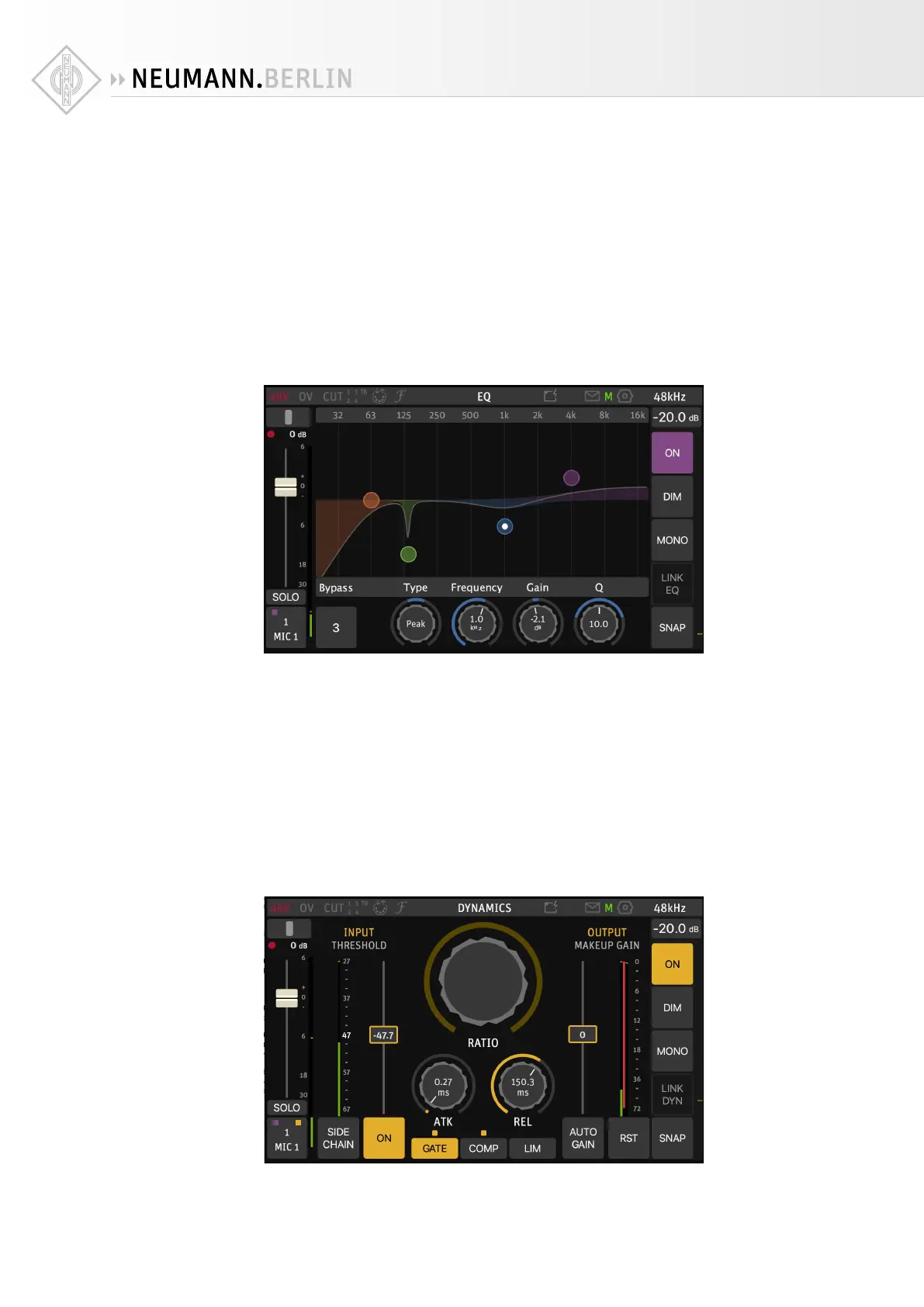

The MT 48 mixer features a sophisticated 4-band equalizer on every channel. This EQ is based
on the acclaimed EQ-X of Merging’s award winning Pyramix digital audio workstation. Like
EQ-X, the MT 48 equalizer works without audible artifacts.
Each of its four bands can has four controls:
• TYPE: low cut, low shelf, peak, high shelf, high cut
• FREQUENCY: 20 Hz … 20 kHz
• GAIN: ±24 dB
• Q: 1 (wide) …100 (very narrow)
Adjust values by selecting a parameter on the touchscreen and turning the Rotary Control.
The resulting curve is shown in the display.
Dynamics
The MT 48 mixer features complex Dynamics processor on every channel. It has three sections:
Gate, Compressor, and Limiter, each with their own bypass switch. So you can use one or two
or even all three sections at the same time. In addition, there is a global bypass switch for the
entire Dynamics processor.
Each band can be bypassed individually. A global EQ bypass is to the right of the frequency
display.
Gate
A gate is useful to suppress unwanted noise in (short) pauses of the wanted signal.
Gate has the following parameters:
