Model H1301 Recovery and Recycling System
Installation, Operation and Maintenance Manual
Revision-L September, 2019
Page 16 of 105
.
IV. System Installation (continued)
F. Receiver Storage Container Connections (continued)

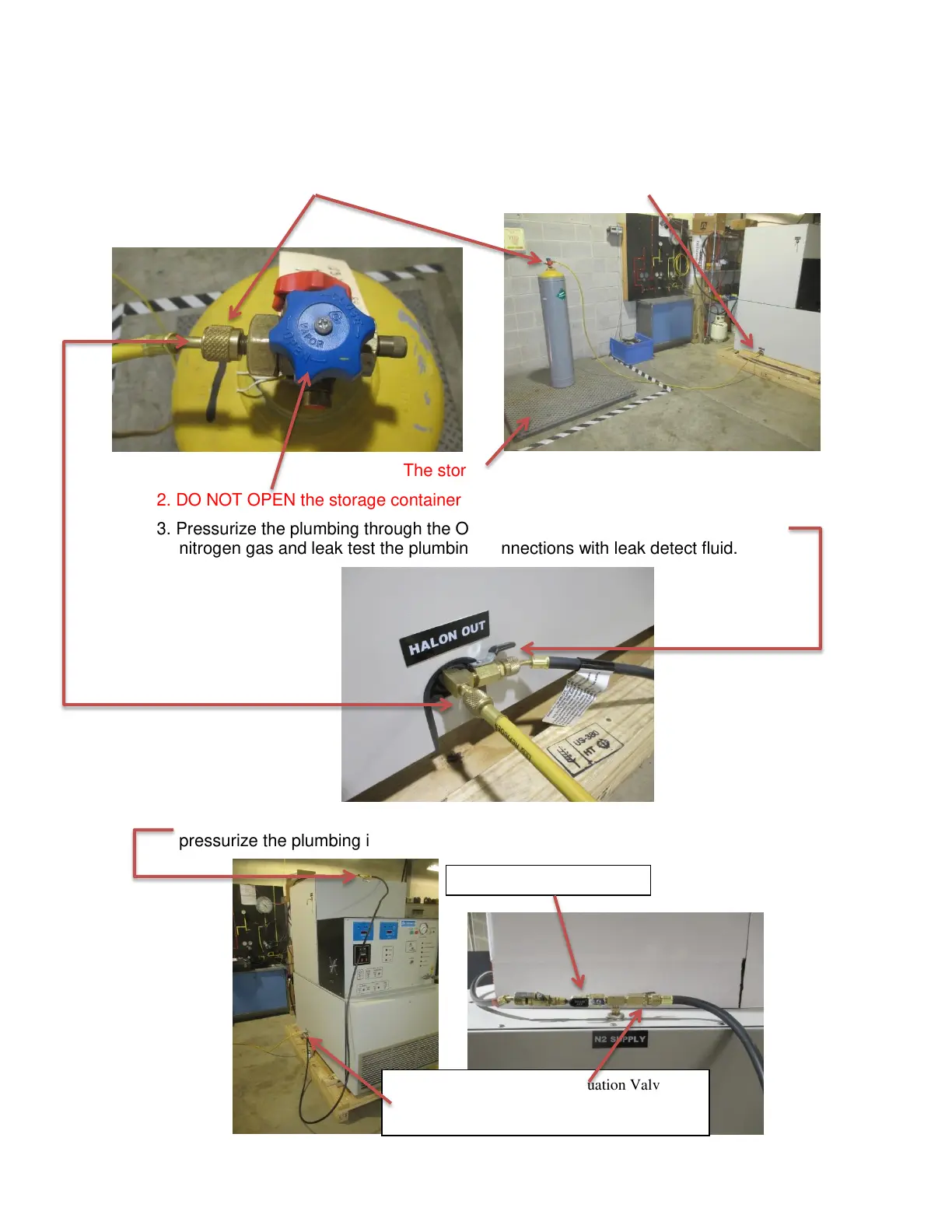

Outlet Leak Testing and Evacuation Method:
1. Connect the Vapor Port of the storage container to the Outlet Port of the machine.
The storage container is placed on a weigh scale.
2. DO NOT OPEN the storage container valve.
3. Pressurize the plumbing through the Outlet Evacuation Valve with 200 to 250 psi
nitrogen gas and leak test the plumbing connections with leak detect fluid.
A hose connection from the Nitrogen Supply Evacuation Valve may be used to
pressurize the plumbing in place of using a second source of nitrogen gas.
Nitrogen Supply Connected
Connect Nitrogen Supply Evacuation Valve to
Outlet Evacuation Valve. Open the valves to
pressurize for leak testing.
To Next Page
